Marantz ST 17 Service Bulletin
This is the 5 pages manual for Marantz ST 17 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz ST 17 Service Bulletin (Ocr-read)
Page 1

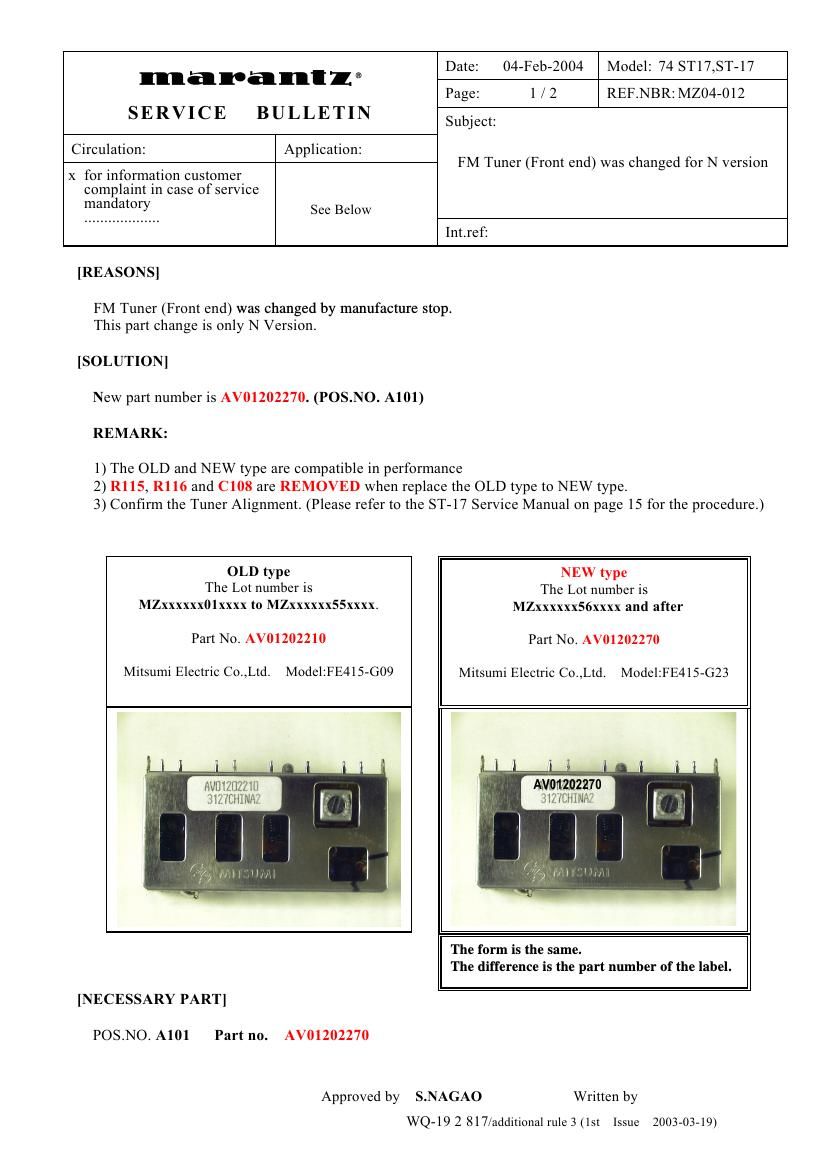

Approved by S.NAGAO Written by WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) 74 ST17, ST-17 SERVICE BULLETIN (REF.NBR: MZ04-012) page2/2 POS.NO. A101 REMOVED
Page 2
Approved by C. Miyayama Written by H. Tamura Date: 6-Nov-98 Model: 74ST17/02B/02G Page: 1/1 REF.NB MZ98-030 Subject: Circulation:Application: Int.ref: [ SOLUTION] Modify the front panel assembly as following procedure. 1. Disassemble the front panel assembly from the product and remove 017B, 026B and PCB PS02 from the front panel (002B). (Fig.1) 2. Add the IR lens (013B: 4822 381 12024 [/02B] or 4822 381 12025 [/02G]) with dual side adhesive tape to the hole of PTY button on the front panel. (Fig.1) 3. Cut the PTY button and the button guide. (Fig. 2 : Gray part) 4. Remove the tact switch (SS24). And add the IR sensor (QS03: 4822 130 11494) with the formed rubber (13x10x10). (Fig. 3) 5. Add diodes DS03, DS04 ( 4822 130 32362), transistors QS04 ( 4822 130 61227 ), QS05 ( 4822 130 42594 ), resistors RS63 ( 180 ohm 1/6W), RS65 ( 10K ohm 1/6W). (refer the service manual 4822 725 51167 page 7 and page 9) 6. Reassemble the front panel. (Fig. 1 & 4) 7. Press POWER switch while depressing DISPLAY button and BAND, if FL display shows < RC INT> then modification had succeed. · Every MARANTZ remote control units which including TUNER mode are available for command transmit. [ REMARK] This information is applied to Europe, Africa and Middle East only. PTY function is not available after this modification. SERVICE BULLETIN Remote control modification. (Add IR sensor for remote operation.) x for information customer complaint in case of service mandatory ................... Only required case from a customer. Fig. 2 013B 017B PS02 026B 002B Fig. 1 Fig. 4 Rubber 13mm 10 10 QS03 Dual side adhesive tape Dual side adhesive tape Fig. 3
