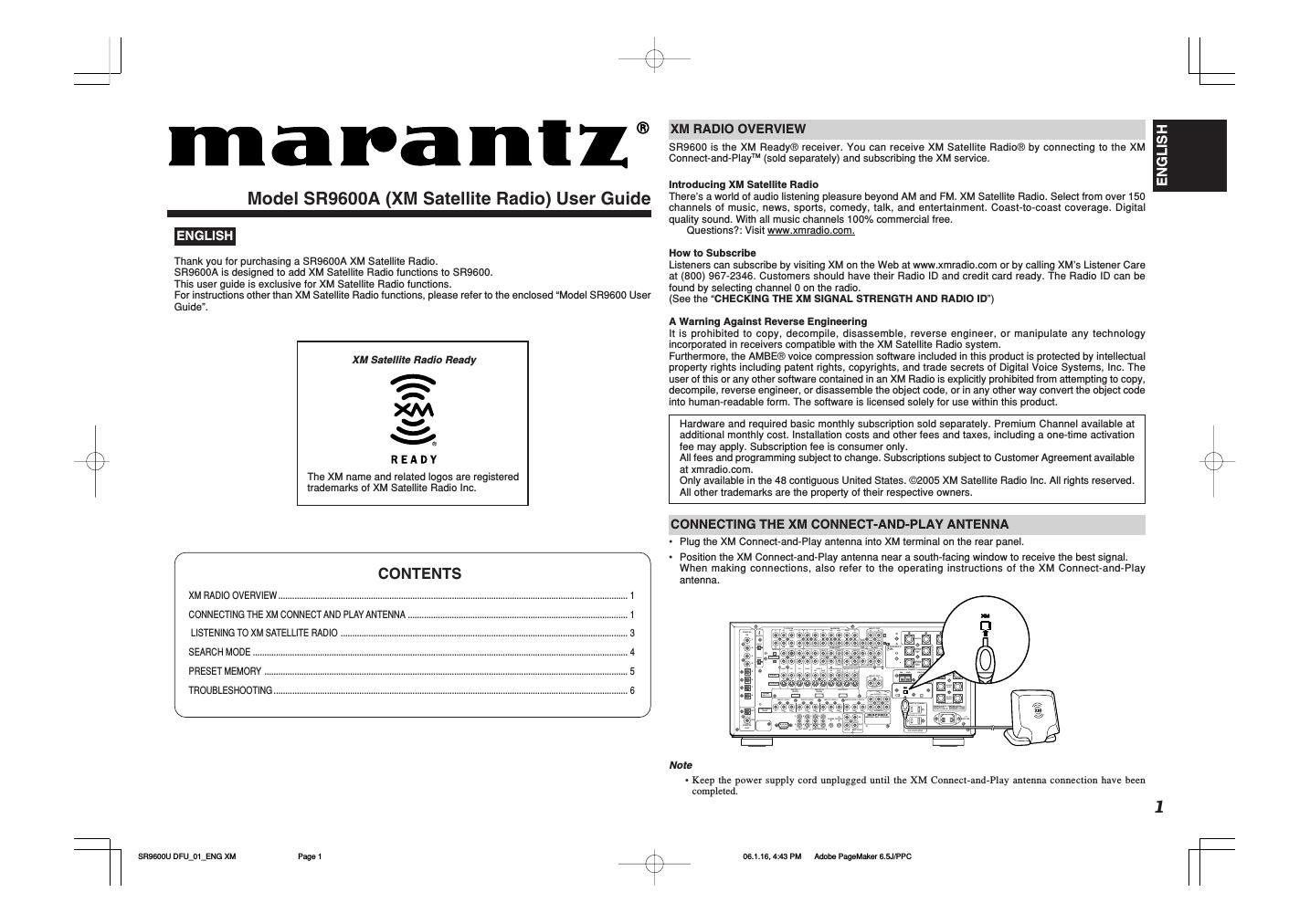

2 ENGLISH SR9600A is designed to add XM Satellite Radio functions to SR9600. There are different terms from the enclosed Model SR9600 User Guide. For Model SR9600 User Guide, Please replace the terms as listed in the table below. 4 3 4 3 " 5 6 / & 3 5 6 / & 3 5 6 / & 3 9 . 3 $ # 3 $ $ The table below shows the differences of displays on the remote control units between RC3200B(SR9600) and RC3200C(SR9600A). SR9600 RC3200B (SR9600) RC3200C (SR9600A) User Guide Page 11 Home (PAGE 1/4) 11 Home (PAGE 2/4) 12 Source Select (PAGE 1/8) 1/4 Homewed Jun 01 4:40 pm 13 Multi room A / B : Source (PAGE 2/6) 14 Multi room A / B : Tuner 2 (PAGE 5/6) 14 Multi room A / B : Tuner 2 Key (PAGE 6/6) 15 Tuner 2 : Main (PAGE 1/2) 15 Tuner 2 : Key (PAGE 2/2) 2/4 Homewed Jun 01 4:40 pm 4:40pm 2/6 Multi room A MULTI-A : Sourcewed Jun 01 4:40 pm 2/6 Multi room B MULTI-B : Sourcewed Jun 01 4:40 pm 1/8 A/V Amp Source Selectwed Jun 01 4:40 pm 5/6 Multi room A MULTI-A : Tuner 2wed Jun 01 4:40 pm 5/6 Multi room B MULTI-B : Tuner 2wed Jun 01 4:40 pm 6/6 Multi room A MULTI-A : Tuner 2 keywed Jun 01 4:40 pm 6/6 Multi room B Multi-B : Tuner 2 keywed Jun 01 4:40 pm 1/2 Tuner 2 Tuner 2 : Mainwed Jun 01 4:40 pm 2/2 Tuner 2 Tuner 2 : Keywed Jun 01 4:40 pm 1/4 Homewed Jun 01 4:40 pm 2/4 Homewed Jun 01 4:40 pm 1/8 A/V Amp Source Selectwed Jun 01 4:40 pm 4:40pm 2/6 Multi room A MULTI-A : Sourcewed Jun 01 4:40 pm 2/6 Multi room B MULTI-B : Sourcewed Jun 01 4:40 pm 5/6 Multi room A MULTI-A : XMwed Jun 01 4:40 pm 5/6 Multi room B MULTI-B : XMwed Jun 01 4:40 pm 6/6 Multi room A Multi-A : XM keywed Jun 01 4:40 pm 6/6 Multi room B Multi-B : XM keywed Jun 01 4:40 pm 1/2 XM XM : Mainwed Jun 01 4:40 pm 2/2 XM XM : Keywed Jun 01 4:40 pm 4 3 6 % ' 6 @ @ & / ( 9 .06.1.16, 4:44 PM Page 2 " E P C F 1 B H F . B L F S + 1 1 $
Page 2
3 ENGLISH SIGNAL : STRONG SIGNAL : MARGINALSignal strength is good Signal strength is marginal SIGNAL : WEAK SIGNAL : NONSignal strength is poor Loss of the signal 2. Adjust the antenna location until Signal strength is good. 3. Turn the GYRO TUNING dial or tap the channel or button on the remote control unit to select channel 0 (XM000). -The Radio ID is displayed. Note: -If CHECK ANTENNA appears in the front panel display, the XM Connect-and-Play antenna may not be connected to the XM terminal on the rear panel of this unit properly. LISTENING TO XM SATELLITE RADIO SELECTING AN INPUT SOURCE Before you can listen to XM Satellite Radio, you must first select the input source on the SR9600. MULTI SPEAKERF/P BAND THX THX PURE DIRECT PURE DIRECTUP DOWNTUNING AUX 1 INPUT R AUDIO DIGITAL S-VIDEO L VIDEO POWER ON/STANDBY POWER ON/STANDBYVOLUME UP DOWN INPUT SELECTOR INPUT SELECTOR PHONES PHONES STANDBY STANDBYAV SURROUND RECEIVER SR9600 AV SURROUND RECEIVER SR9600 SURROUND SURROUND MIC ENTER MENU PURE DIRECT PURE DIRECTTHX THX7.1 7.1CH INPUT MODE MODEAUTO AUTO MULTI MULTI A/B T-MODEMEMORY CLEAR DISPLAY EXITSPEAKERS MRAC AUTO TUNE 1. 1. Select XM by turning the INPUT SELECTOR knob on the front panel. Or, tap the XM on the remote control unit. CHECKING THE XM SIGNAL STRENGTH ANDRADIO ID 1. Tap the Disp. twice on the remote control unit. Signal status is displayed. -The display changes as shown below according to the receiving condition. SWITCHING XM INFORMATION IN THE FRONTPANEL DISPLAY You can display XM information (such as artist name, song title, category or signal status) for the channel currently selected in the front panel display. 1. Tap the Disp. button on the remote control unit repeatedly to toggle between the following channel information display modes. Artist name/Song title Channel category Signal Status Surround mode (OSD ON) When the channel Artist name/Song title is displayed: When the channel category is displayed: When the signal status is displayed: Radio ID DIGITAL 1/8 A/V Amp Source Selectwed Jun 01 4:40 pm 1. 1/2 XM XM : Mainwed Jun 01 4:40 pm 1. 1/2 XM XM : Mainwed Jun 01 4:40 pm 1. When the Surround mode is displayed: The video monitor output will show OSD information. Note: -The front panel display can indicate up to 20 alphanumeric characters at once. If the information contains more than 20 characters, the information scrolls from right to left. -If the information contains a character that cannot be recognized by that unit, the character will be displayed with (space). XM I N F ORMA T I ON X C N T C SM H A I A IA M T T GN E L NE AL: : : : : :0 D P M R S4 e i o o T0 e n n c Rp k ey k OT Nr F Ga lc ok is d 4 3 6 % ' 6 @ @ & / ( 9 .06.1.16, 4:44 PM Page 3 " E P C F 1 B H F . B L F S + 1 1 $
