Marantz SR 8500 Service Bulletin 2
This is the 3 pages manual for Marantz SR 8500 Service Bulletin 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SR 8500 Service Bulletin 2 (Ocr-read)
Page 1

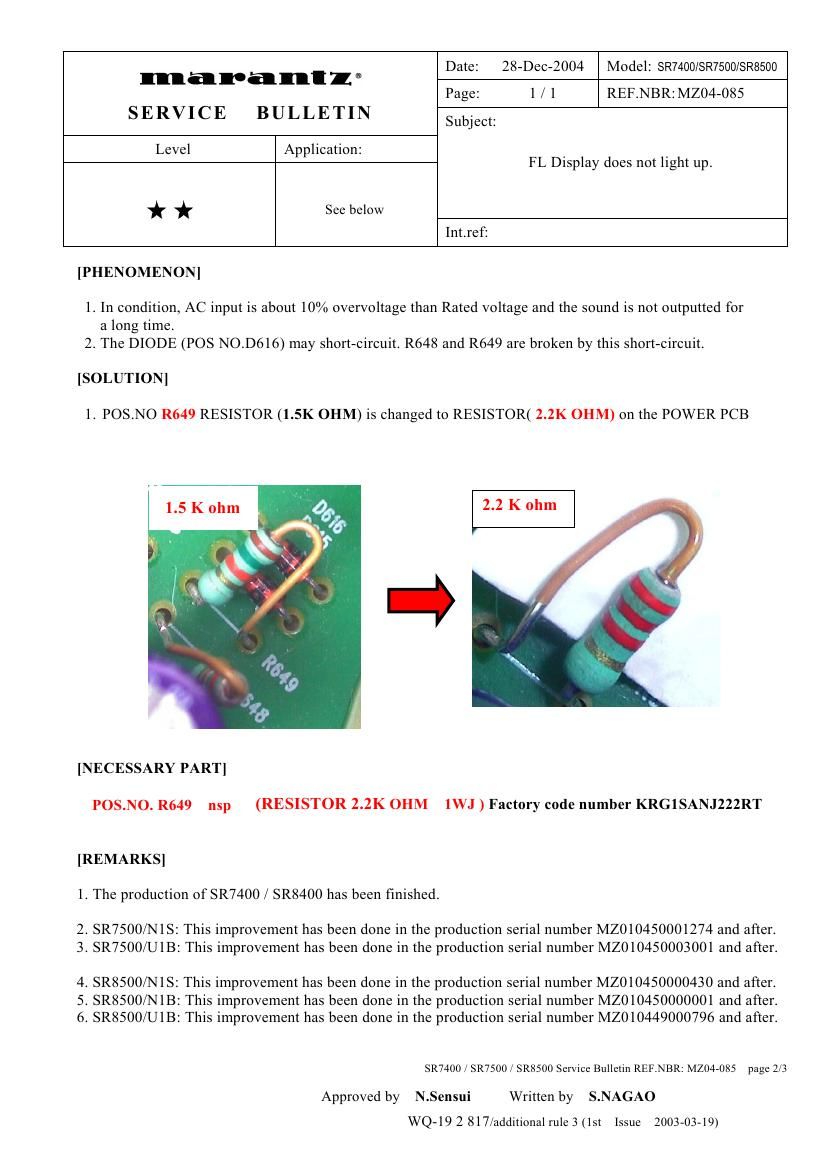

Approved by N.Sensui Written by S.NAGAO WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) SR7400 / SR7500 / SR8500 Service Bulletin REF.NBR: MZ04-085 page 3/3 SR7500 / SR8500 R649 1.5K ohm SR7400 R648 2.2K ohm D616 Zener Diode part no. 90M-HD302190R R649 1.5K ohm R648 2.2K ohm D616 Zener Diode part no. 90M-HD302190R
Page 2
Approved by N.Sensui Written by S.NAGAO WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) SR7400 POWER PCB SR7500 / SR8500 POWER PCB
