Marantz SR 8500 Brochure
This is the 4 pages manual for Marantz SR 8500 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SR 8500 Brochure (Ocr-read)

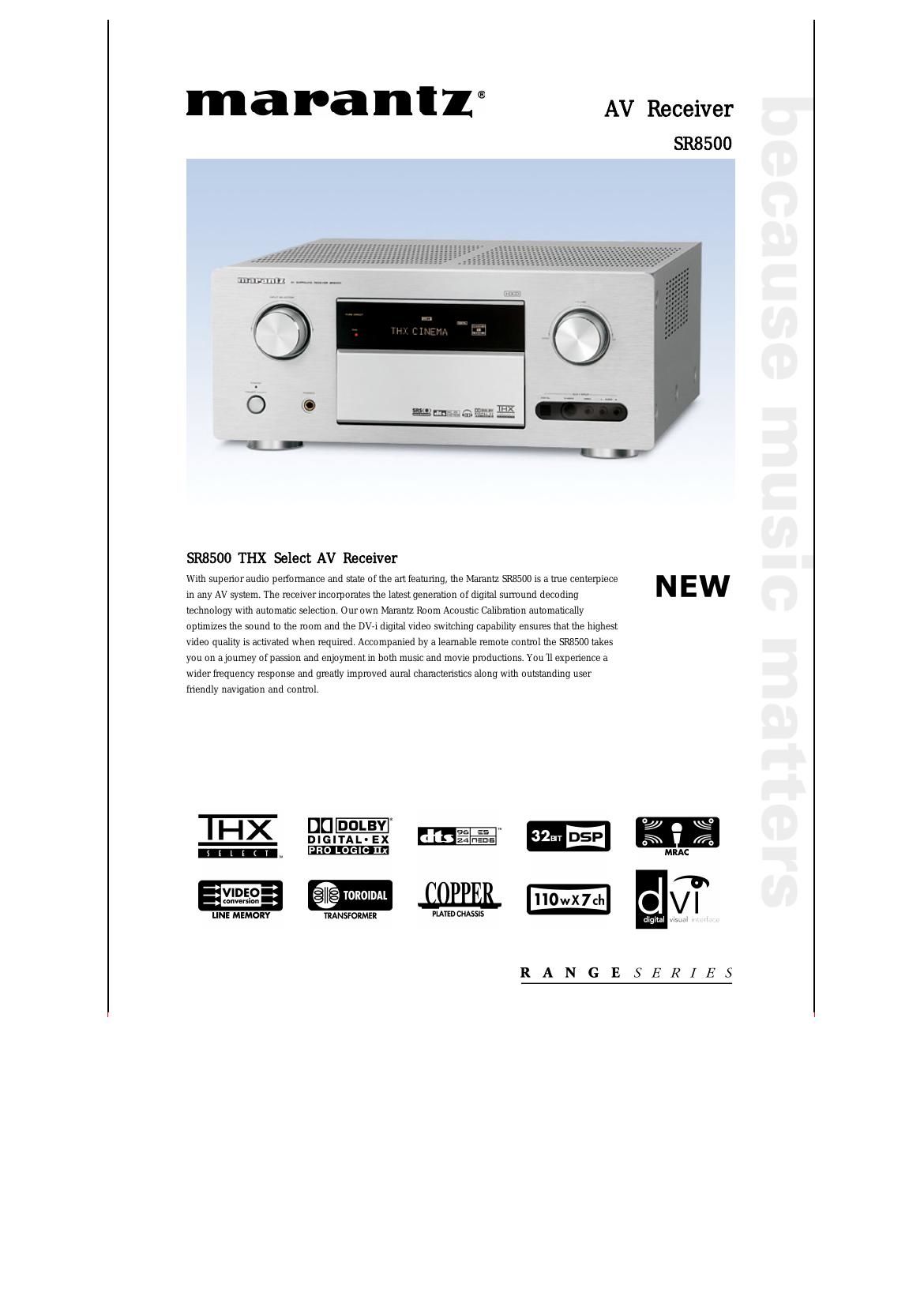

Page 1
Features Benefits Innovative 32-bit Digital Signal Processing with THX Surround EX, DD-EX, DTS-ES and DPL IIx Wide range full discrete 7 channel Current Feedback power amplifiers Top grade audio components, toroidal transformer and copper plated chassis Marantz Room Acoustic Calibration DV-i video switching without signal distortion Video conversion Firmware update through RS-232C port Multi room / multi source system Dolby headphone Provides up to 8 channel audio decoding for any source material at the highest quality Excellent frequency response and superb sonic performance for the highest standard such as SA-CD and DVD-Audio To ensure the renown premium Marantz sound reproduction in multichannel and stereo The best sound for your room - automatically For a high quality, full band width, uncompressed digital video signal transmission to a Marantz HD display or projector The highest analogue quality from all sources connected via a single component connection Make today's receiver for tomorrow's standard ready Allows independent audio and video source selection and control in a second room Full multichannel enjoyment via your regular stereo headphone Technological glossary: The SR8500 represents cutting-edge technology and innovation with several unique Marantz sound enhancements and features. The new generation of Marantz AV receivers are stylish and completely symmetrical. On the front panel of the SR8500, buttons are kept to a minimum. The source selector and volume controls are intuitively placed. The cursor leaf on the hidden panel can be used as a navigator through most of the functions of the SR8500 to be operated via the front panel. The Multitude of surround decoders provides uncompromised 6,7 or 8 channel playback of any multi-channel program, whether it's movie soundtracks or music, over the widest possible seating area. With a fully discrete Current Feedback amplifier section capable to deliver 110 watts of high-current amplification, the SR8500 delivers a continuously clean and stable power into each of the seven channels. Designed and engineered with extensive feed-back from custom installation experts, dealers and consumers, the SR8500 versatility is taken to a new stunning level. An easy-to-use programmable, learning remote control allows full access to all of the operating functions and can be used for system operation as well. Unrivaled home entertainment The SR8500 incorporates the most advanced 32-bit Digital Signal Processing circuitry decoding the latest generation of digital surround sound such as THX Surround EX, Dolby Digital EX, DTS ES, DTS Neo:6, Circle Surround II, and Dolby Pro-Logic IIx. The receiver provides an enveloping 7.1 channel playback of any multi-channel program, whether it's movie soundtracks or music, over the widest possible seating area. Latest surround technologies Pro Logic IIx is the first and only technology to process any native stereo or 5.1 signal into a 6.1- or 7.1- channel output. A product of Dolby's expertise in surround sound and matrix decoding technologies, Dolby Pro Logic IIx is a complete surround sound solution that maximizes the entertainment experience from stereo as well as 5.1-channel encoded sources. On playback systems with four surround speakers, the result is a more seamless, natural and enveloping listening experience on everything from stereo music CDs to DVDs encoded in Dolby Digital Surround EX. Until now, processing stereo and 5.1 program sources into 6.1 or 7.1 output channels necessitated that the A/V receiver include a variety of decoders, often from different developers. In contrast, Dolby Pro Logic IIx decoding does it all, offering a single upgradeable solution for the home theater enthusiast who wants to go from 5.1 channels to 6.1 and 7.1. 8 channel audio from any source Dolby Pro Logic IIx technology features Movie and Music modes that function with 5.1 as well as stereo sources, including 24-bit/192kHz and 24-bit/96kHz sources. The Game mode restores the impact low-frequency surround effects by routing them to the systems' subwoofer. Dolby Pro Logic IIx technology delivers a natural and immersing 7.1-channel listening experience to the home theater environment. The SR8500 features a fully discrete 7 channel amplifier section capable of delivering 110 watts of high-current amplification, for continuously clean and stable power into each of the 7 channels. It employs a massive toroidal power transformer in combination with high grade oversized filter capacitors. Current Feedback amplification is a well known, Marantz original circuit technology accomplishments from the HiFi amplifier field. Due to the introduction of Super Audio (Super Audio CD, DVD-Audio) multi-channel software and an increasing amount of universal disc players, AV Receiver/ amplifier require a higher performance amplifier not only for digital surround sound from DVD Video via the digital input, but also for analog multi-channel. Even in the DVD Video world the amount of higher quality software increases with formats like DTS 96/24. The Current Feedback amplifier technology fits perfectly with the high requirements set for this Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. The SR8500 therefore can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth up to 100kHz. Current Feedback power amplification If you want the best you need a digital video connection. Whether you're watching a ball game or an action-packed movie in high definition, without question, the picture quality is stunning. It could be better, though. For high definition all digital video to look its best, the data must be transferred from your digital source to your HD display or projector in pure digital form. For you to take full advantage of the AV control facilities of the SR8500 we have included the DVi switching facility. The DVi-D inputs and output on the SR8500 are a pure digital high bandwidth video interface. What you see on your screen is exactly what was digitally recorded. You´ll enjoy a razor sharp picture with incredible detail and vibrant, natural colors. Digital video interfacing
Page 2
SR8500 is equipped with a high quality video conversion. It can up convert the Composite signal to S-Video/Component and S-Video to Component; as well as down conversion from S-Video to composite (the component signal is not down converted). This feature allows you to connect the best possible video cable between the SR8500 and the display and of course you only need one. In order to avoid synchronization and eroded video quality problems, the SR8500 has a high quality video converter equipped with digital video processing consisting of for example; 4H line memory, time based corrector, a triple 10-bit DAC, filed locking, VCR detection and anti aliasing filtering. The SR8500 provides you the highest analogue quality from all sources connected via a single component connection. Video conversion Based on our room acoustics knowledge and expertise already shown in products like the AX1000 we have developed the Marantz Room Acoustic Calibration (MRAC). The algorithms developed are derived from this amazing AV computer developed more then a decade ago. Taking into account reflections from walls, ceiling and floor and knowledge about psycho acoustics, MRAC optimizes the sound for the room acoustics. The SR8500 is one of the first new generation Marantz receivers which is to feature the new MRAC function. With the supplied microphone placed on your listening position, the powerful DSP analyzes accurately and sets the sound configuration for your listening room. MRAC can tests and controls speaker configuration, trim, distance/delay and frequency response. Marantz Room Acoustic Calibration The strength of each Marantz design can be found in the attention to detail and cohesiveness of the different elements. The SR8500 is a clear example of benchmark engineering and craftsmanship and features a number of Marantz sound enhancements like Current Feedback topology amplification which makes the power amplifier in- sensitive to (difficult) loudspeaker loads. It incorporates leading edge digital signal processing, along with a Crystal 192 kHz/24 bit D/A converter in each of the seven channels. All of the digital, analogue and control circuits are separated and extensively shielded in their own enclosures to prevent cross-talk and other unwanted interference. Independent power supplies for the FL display, audio and video sections secure maximum separation, clarity and dynamics. Hand- selected high grade customized components, gold-plated terminals and a copper plated chassis all work in harmony. It employs an extensively braced and shielded, massive toroidal power transformer in combination with customized oversized filter capacitors. To achieve a top-notch competitiveness Marantz has also designed a new intelligent cooling system and a high efficiency heatsink. A touch of Marantz The SR8500 is equipped with a multitude of Component terminals to connect your video source through the centre of your home entertainment. It provides one touch switching of video and audio source with a high quality reproduction and feeds useful information onto the screen via the user- friendly OSD. It features multi room/multi source, speaker A/B switching, 2 assignable DC triggers, 2 flasher inputs, a RS232c communication port, high grade - heavy duty - speaker binding posts and an extensive array of both analog and digital in-outputs. With 7 assignable digital inputs (8 in total), 4 component inputs, SACD Multi-Channel (7.1 channel) direct inputs and a multi room speaker and OSD output versatility is taken to a new stunning level. With the Marantz audio system placed in the main room of the house, a second pair loudspeakers can be placed at a separate room. Not only sound but even video signals can be handled in such a way that in the separate room a video source with OSD feature can be selected. At the heart of Customised home installation Bypacked accessories - User manual - Power cable - Remote control - Batteries - FM antenna - AM loop antenna RC1400
