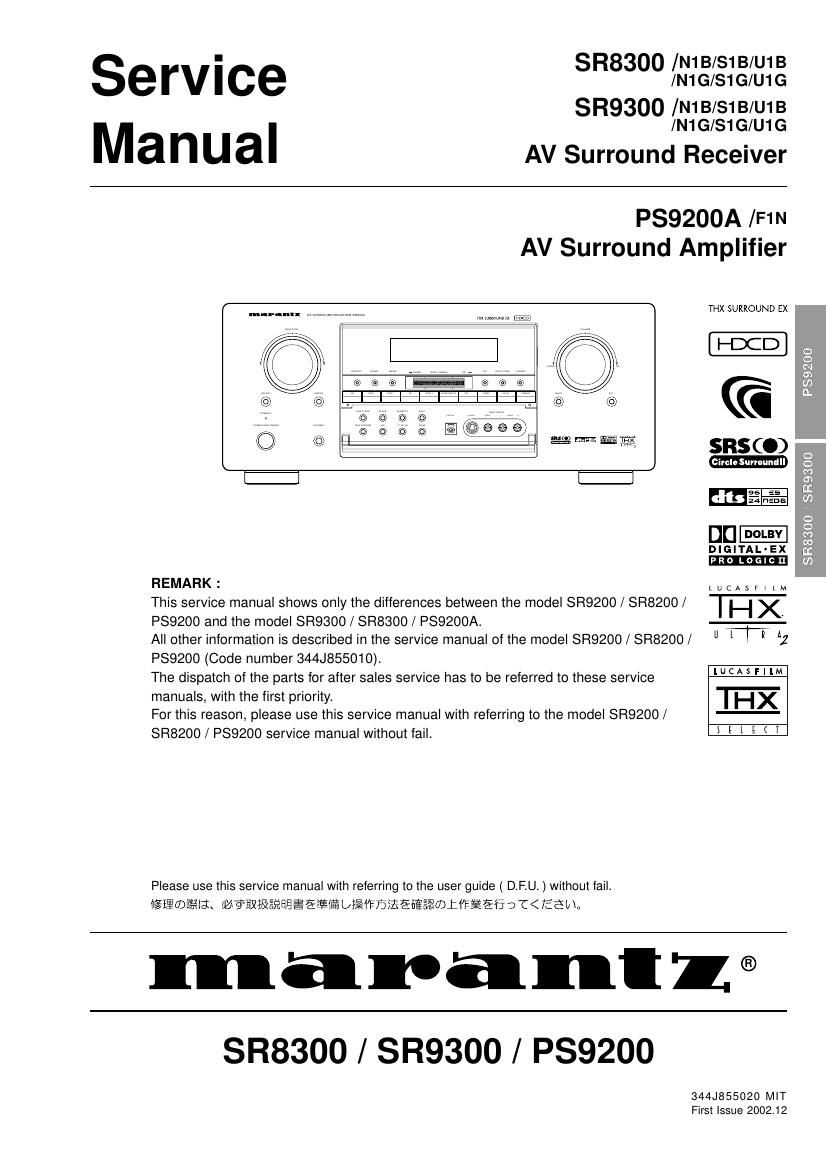

Marantz SR 8300 Service Manual

Page 1

POS. NO.VERS. COLORPART NO. (FOR EUR)DESCRIPTIONPART NO. (MJI) 001B /N1B/S1B 343J248210 FRONT AL PANEL (SR8300 BL) 343J248210 001B /N1G/S1G 343J248310 FRONT AL PANEL (SR8300 GL) 343J248310 001B /U1B FRONT AL PANEL (SR8300 BL) U 343J248220 001B /U1G FRONT AL PANEL (SR8300 GL) U 343J248320 009G 03AJ057110 LEGS 03AJ057110 010G 03AJ057110 LEGS 03AJ057110 001S 343J801110 PACKING CASE (SR8300) 343J801110 001T /N 343J851320 USER GUIDE SR8300 N 343J851320 001T /S USER GUIDE SR8300 S 343J851360 001T /U USER GUIDE SR8300 U 343J851260 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO.VERS. COLORPART NO. (FOR EUR)DESCRIPTIONPART NO. (MJI) 001B /F FRONT AL PANEL (PS9200 GL)V2 344J248340 001B /N1B/S1B 344J248210 FRONT AL PANEL (SR9300 BL) 344J248210 001B /N1G/S1G 344J248310 FRONT AL PANEL (SR9300 GL) 344J248310 001B /U1B FRONT AL PANEL (SR9300 BL) U 344J248220 001B /U1G FRONT AL PANEL (SR9300 GL) U 344J248320 003B /F BADGE VERSION 2 318J251020 009G 03AJ057110 LEGS 03AJ057110 010G 03AJ057110 LEGS 03AJ057110 001T /N 344J851320 USER GUIDE SR9300 N 344J851320 001T /S USER GUIDE SR9300 S 344J851360 001T /U USER GUIDE SR9300 U 344J851260 Z011 /F MAINS CORD DC-302-J 125V 12A ZC01802080 001S /N/S/U nsp PACKING CASE (SR9300) 344J801110 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. SR9300 / PS9200A : PARTS LIST SR8300 : PARTS LIST The change parts are the following.Other parts are the same. SERVICE TOOL Updated of the CPU and DSP DISC ...........................*SR9300CDR REMARK: The disc is used when QU01 and Q671 are replaced. No software is in the IC's when replaced. Refer the service manual for SR9200/SR8200/PS9200 (344J855010) to upload software. The procedure to upload is the same to the SR9200/SR8200/PS9200. However the software is NOT the same to the SR9200/SR8200/PS9200. NEVER write the software to SR9200/SR8200/PS9200. It causes breakdown. So be careful to use this disc to upload.
