Marantz SR 8002 Brochure

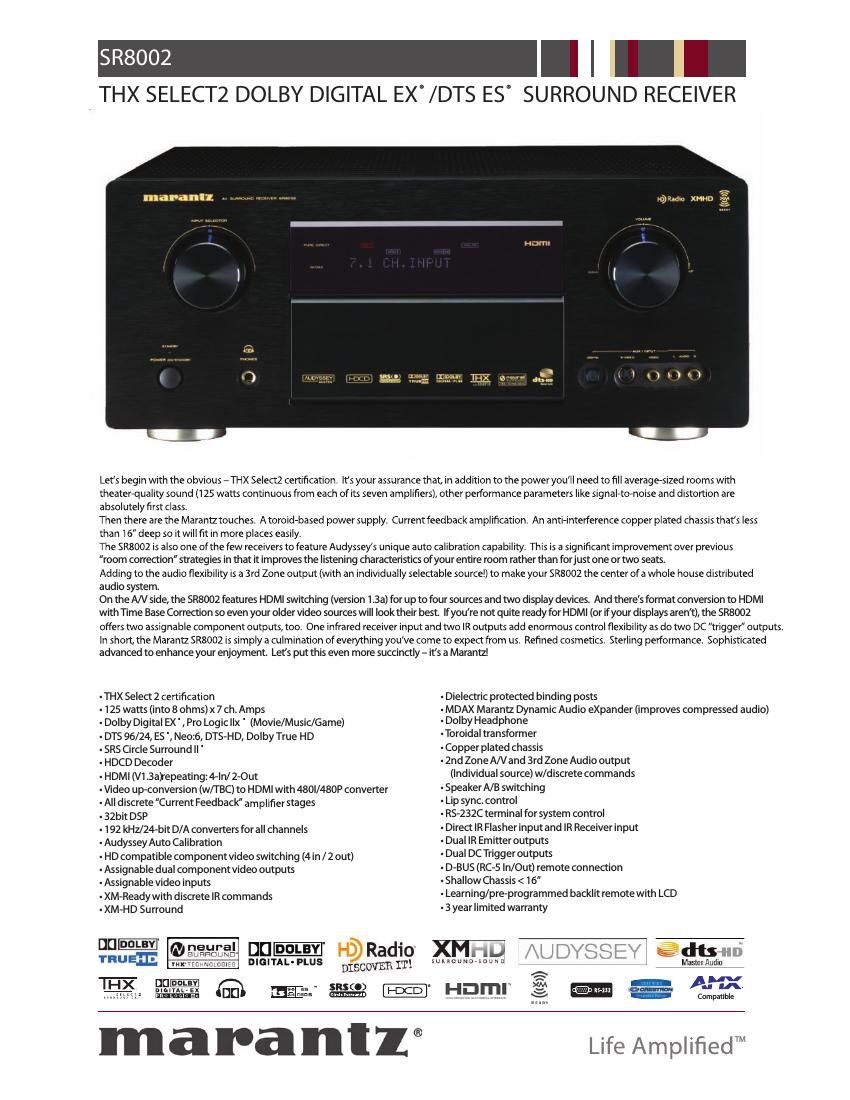

Page 1

-l|--

THX SELECT2 DOLBY DIGITAL EXW/DTS ES SURROUND RECEIVER

>o)a.am xnuu

Lets begin with the obvious 7THX Seleth certification. Its your assurance that, in addition to the power you'll need to fill average-sized rooms with
theater-quality sound (125 watts continuous from each of its seven amplifiers), other performance parameters like signal-to-noise and distortion are

absolutely first class.

Then there are the Marantz touches. A toroid»based power supply. Current feedback amplification. An anti-interference copper plated chassis that's less

than I6 deep so it will fit in more places easily.

The SRSOOZ is also one ofthe few receivers to feature Audyssey's unique auto calibration capability. This is a significant improvement over premous
"room correction" strategies in that it improves the listening characteristics of your entire room rather than forjust one or two seats.
Adding to the audio flexibility is a 3rd Zone output (with an indiVIdually selectable source!) to make your SRBODZ the center ofa whole house distributed

audio system.

On the A/V side, the SR8002 features HDMI switching (version 1.3a) for up to four sources and two display devices. And theres format conversion to HDMI
with Time Base Correction so even your older video sources will look their best. If youre not quite ready for HDMI (or if your displays arent), the SR8002

offers two assignable component outputs, too. One infrared receiver input and two IR outputs add enormous control flexibility as do two DC "trigger" outputs.
In short, the Marantz SR8002 is simply a culmination of everything you've come to expect from us. Refined cosmetics. Sterling performance. Sophisticated
advanced to enhance your enjoyment. Lets put this even more succinctlye its a Marantz!

- THX Select 2 certification

- 125 watts (into 8 ohms) x 7 ch. Amps

- Dolby Digital EX , Pro Logic le (Movie/Music/Game)

- DTS 96/24, ES ', Neo:6, DTS-HD, Dolby True HD

- SRS Circle Surround ||'

- HDCD Decoder

- HDMI (V1.3a)repeating:4-|n/2-Out

- Video up-conversion (w/TBC) to HDMI with 480l/480P converter
- All discrete "Current Feedback amplifier stages

- 32bit DSP

- 192 kHz/24-bit D/A converters for all channels

- Audyssey Auto Calibration

- HD compatible component video switching (4 in / 2 out)
- Assignable dual component video outputs

- Assignable video inputs

- XM-Ready with discrete IR commands

- XM-HD Surround

- Dielectric protected binding posts

- MDAX Marantz Dynamic Audio eXpander (improves compressed audio)

- Dolby Headphone

- Toroidal transformer

- Copper plated chassis

- 2nd Zone A/Vand 3rd Zone Audio output
(Individual source) w/discrete commands

- SpeakerA/B switching

- Lip sync. control

- RS-232C terminal for system control

- Direct IR Flasherinput and IR Receiver input

- Dual IR Emitter outputs

- Dual DC Trigger outputs

- D-BUS (RC-5 In/Out) remote connection

- Shallow Chassis <16"

- Learning/pre-programmed backlit remote with LCD

- 3 year limited warranty

[Jamar 0512:9595. Du DOLBY Radio m

Taugm M mm: DIGITAanLus DISCOVER! Minna: A MasiciAudin
un- * 5 1

W W (ll-[TI snsco) HEIrnI e, g Jimmie

Life Amplifiedw

Page 2

SR8002

FEATURES lNflDUTPUTS (Continuedi

MULTICHANNEL/SURRDUND OTHER

Number of Channels 7 PreAmplifier Out Sch
THX Seleth Main Amplifier In .
DTS (HD, ES, Discrete 5.1/ Matrix 6,1, Nee-5) . 1+ 96/24) Multi-Channel In Sch

Dolby Digital Plus

Multi-Room Audio Out

Dolby True-HD . Multi-Room \fideo Out . (Composite 8t Component)
Circle Surround II . Multi~Room Speaker Out .

SOUND ENHANCEMENTS Speaker A/B .

HDCD Decoder . External control (RSZSZC) .

Current Feedback Topology . DC Triggers 2

Discrete Amplification . (All 7ch) D-Bus Remote (RC-5) In/Out 2/2

Power Transformer Toroidal External IR In/Out 1/2

D/A Conversion 192kHz/24-Bit From Panel A/V Inputs . (+ Digital Opt.)
Digital Signal Processing 11 32-Bit Headphone Out

wdeo Off

AC Outlets (Switched/Unswitched )

. (Dolby Headphone)
1/1

Source Direct . SPECIFI TION.

Chassis Double Layered Copper Plated AUDIO SECTION

Variable X-over . Power Output (8 Ohm) 125W x 7
Display Off S/N Ratio IOSdb

Wsleo Up-conversion
Auto Calibration

Up to HDMI (w/TBC)

. (Auddysey MultiEQ)

Freq. Response (Analog In)
Freq. Response (Dig In)

BHz-100kHz(+/- 3 dB)
8H1s 45kHz (+/- 3 dB)

XM-Ready TUNER SECTION FM

AM/FM tuner . Frequency Range 87.5 . 108.0MH1

Bass management . S/N Ratio (Mono/Stereo) Mono/Stereo: 75/70 dB

Lipssync (digital audio delay) . TUNER SECTION AM

Software U radable [RS232) . Frequency Range 520 - 171 MHZ
Mb smnauo soda

VIDEO VIDEO SECTION

HDMI In 4 (1.3a) Wdeo Freq. Response (Component) 5H1 - SOMHZ (- 1 dB)

Component In 4 (Assignable Inputs) Video Freq. Response (Composit, SMdeo) 5Hz~ 8MH2 (- 1 dB)

S-Wdeo In 5 Signal to Noise aodis

Composite In 5 GENERAL

HDMI Out Ill .33) Color Black

Component Out 2 (Assignable) Front Panel Aluminum

S-Wdeo Out 3 Remote Control Learning/Precoded with LCD

Composite Out 4 Power Requirement RCEOOISR

AUDIO Power Consumption AC 120V/60Hz 780w

Analog L&R In 7 Dimensions W" x H" x D" (Inches) 17 5/16" x 71/4"x 15 5/8"

Analog L&R Out 5 Weight (lbs) 33.1

Digital Optical In 4

Digital Coaxial In 3

Digital Optical Out 1

Digital Coaxial Out 1

IEEE1394 Connection

.
9060 o n no ("I
In new?) 500"- e

All specifications, dimensions and weights are subject to change without notice.
D&M Holdings, Marantz Maramz America, Inc. or any of its Subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors being made by retail
dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained wrthin this document.

©10/D7 MaranzAmeriGJnC - 100 Corporate Drive - Mahwah, NewJersey 07430 - 2017762650) vwwwusmaramzmm
