Marantz SR 7400 Service Bulletin
This is the 10 pages manual for Marantz SR 7400 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SR 7400 Service Bulletin (Ocr-read)
Page 1
Approved by S.NAGAO Written by WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) Date: 15-Mar.-2004 Model: SR7400 Page: 1 / 1 REF.NBR: MZ04-025 Circulation: Application: Subject: Int.ref: [PHENOMENON] 1) It occurs when Digital connection of HDD recorder (by Panasonic or Toshiba product). 2) The sound output of SR7400 is muted by HDD recorder operation. [SOLUTION] 1) Update the CPU(IC28)s software version to [ V040218_2x ] 2) Update the DSP(IC20)s CODE ID 02 to [ CD02_02010116 ] 3) Please refer to the service manual SR7400 page58 to 62, about details of 10.SERVICE MODE and 12.UPDATE FIRMWARE . [NECESSARY PART] Update of the firmware disc *SR7400CD2 [REMARKS] The countermeasure apply to this claim only 1) This problem apply to the following service change code. SR7400/K1G/N1B/N1S /S1G/U1B apply to MZ02xxxxxxxxxx This improvement has been done in the production the service change code MZ03 . 2) The model SR7400/L1G has improved from the top of mass production. SERVICE BULLETIN Can't decode input signal by the operation of other company HDD RECORDER. x for information customer complaint in case of service mandatory ................... See Below File name of SR7400_Soft.zip for CPU File name of DSPROM_04_02_18.zip for DSP
Page 2

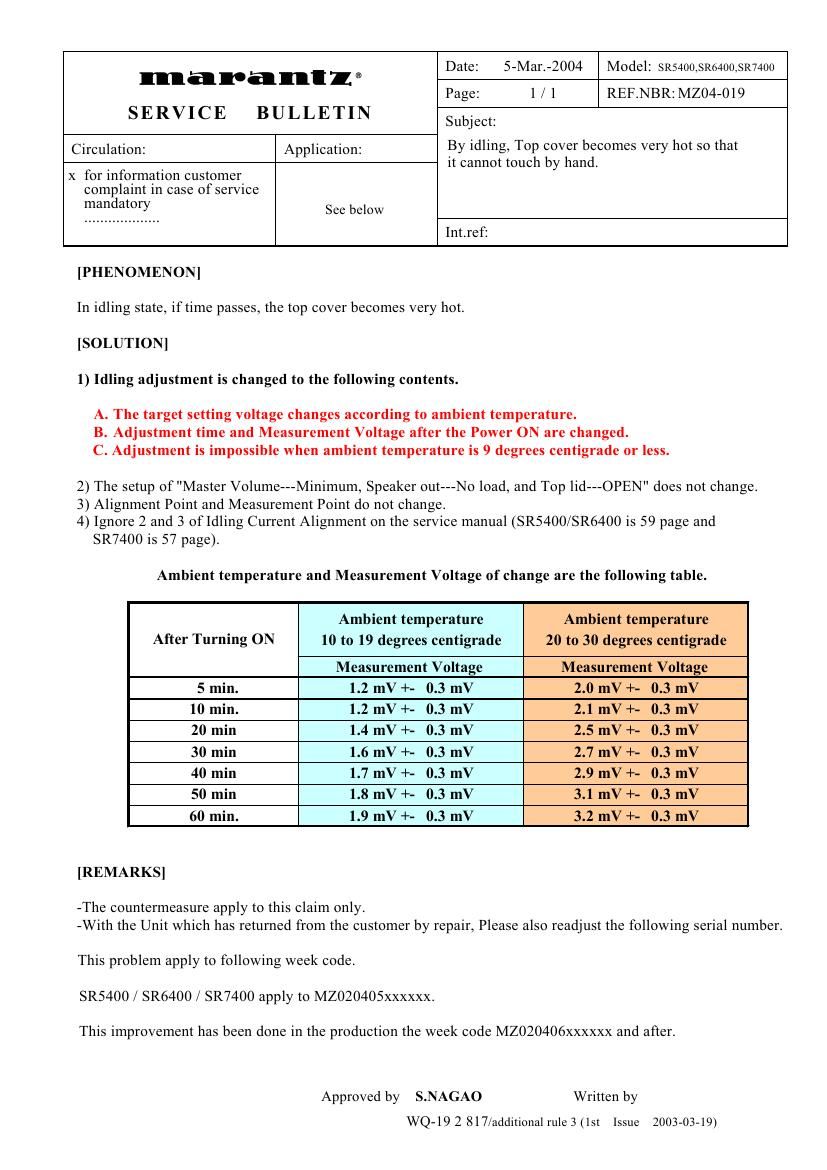

Approved by S.NAGAO Written by WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) Date: 5-Mar.-2004 Model: SR5400,SR6400,SR7400 Page: 1 / 1 REF.NBR: MZ04-019 Circulation: Application: Subject: Int.ref: [PHENOMENON] In idling state, if time passes, the top cover becomes very hot. [SOLUTION] 1) Idling adjustment is changed to the following contents. A. The target setting voltage changes according to ambient temperature. B. Adjustment time and Measurement Voltage after the Power ON are changed. C. Adjustment is impossible when ambient temperature is 9 degrees centigrade or less. 2) The setup of "Master Volume---Minimum, Speaker out---No load, and Top lid---OPEN" does not change. 3) Alignment Point and Measurement Point do not change. 4) Ignore 2 and 3 of Idling Current Alignment on the service manual (SR5400/SR6400 is 59 page and SR7400 is 57 page). Ambient temperature and Measurement Voltage of change are the following table. Ambient temperature 10 to 19 degrees centigradeAmbient temperature 20 to 30 degrees centigrade Measurement Voltage Measurement Voltage 5 min. 1.2 mV +- 0.3 mV 2.0 mV +- 0.3 mV 10 min. 1.2 mV +- 0.3 mV 2.1 mV +- 0.3 mV 20 min 1.4 mV +- 0.3 mV 2.5 mV +- 0.3 mV 30 min 1.6 mV +- 0.3 mV 2.7 mV +- 0.3 mV 40 min 1.7 mV +- 0.3 mV 2.9 mV +- 0.3 mV 50 min 1.8 mV +- 0.3 mV 3.1 mV +- 0.3 mV 60 min. 1.9 mV +- 0.3 mV 3.2 mV +- 0.3 mV After Turning ON [REMARKS] -The countermeasure apply to this claim only. -With the Unit which has returned from the customer by repair, Please also readjust the following serial number. This problem apply to following week code. SR5400 / SR6400 / SR7400 apply to MZ020405xxxxxx. This improvement has been done in the production the week code MZ020406xxxxxx and after. SERVICE BULLETIN By idling, Top cover becomes very hot so that it cannot touch by hand. x for information customer complaint in case of service mandatory ................... See below
