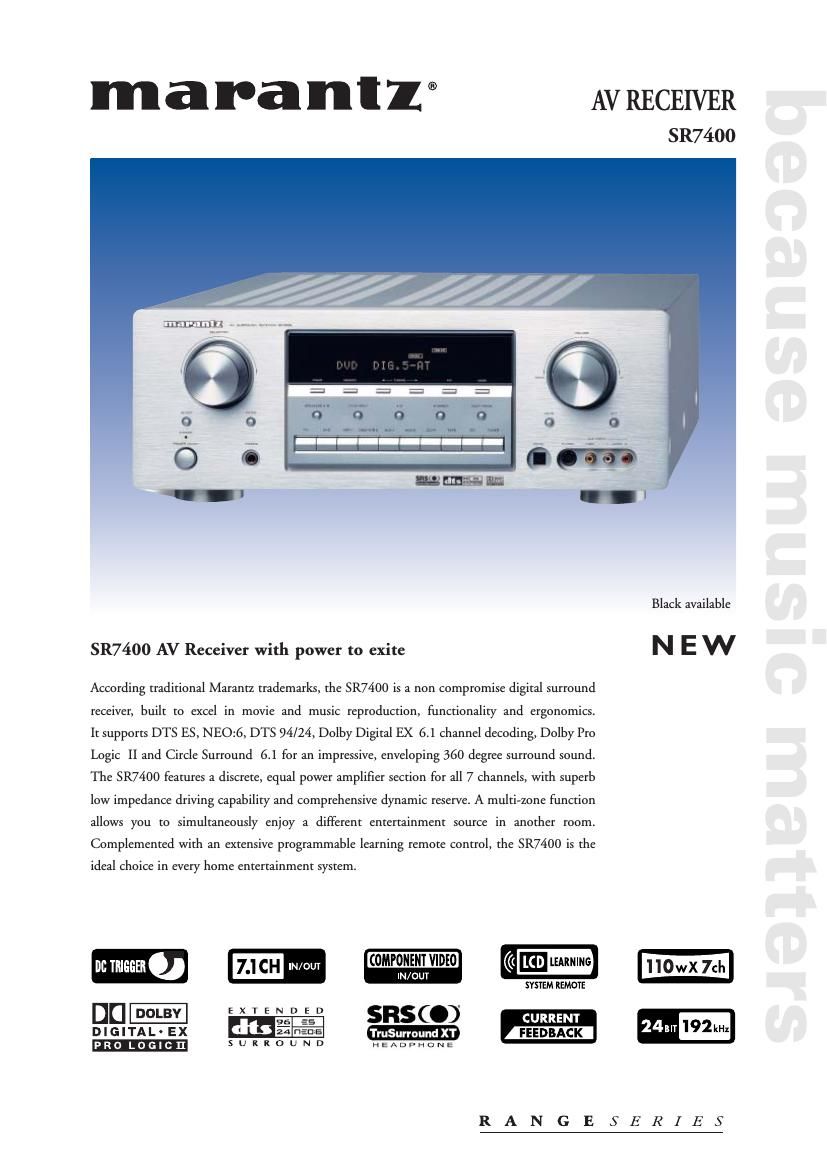

Page 1
Powerful Reproduction of Movies and Music For optimum reproduction of Dolby Digital, DTS, Dolby Pro Logic II and Circle Surround reproduction, the SR7400 provides high current, wide band audio amplification, capable of generating 110 watts of discrete power into all 7 channels. With Current Feedback technology and a robust power transformer, the SR7400 has ample capabilities to drive low impedance loudspeakers. Furthermore an extensive array of digital and analog audio and video connections secure accommodation of a wide variety of multiple program sources. Other versatile and future ready, custom installment features include multi-channel (7.1) direct inputs and pre-amp outputs, RS232c interface, a multi-language on-screen display, DC triggers, and speaker A/B switching. Dolby Digital EX Dolby Digital EX brings a new dimension of depth, spacious ambience and sound localization to home theater environment. The benefits of DD-EX include more realistic flyover and fly- around effects, a more stable image for atmospheres and music and a more consistent surround effect throughout the auditorium or home viewing area. DTS-ES, 96/24 decoding The DTS-ES surround system offering a superb sound quality and a range of formats. The Discrete 6.1 offers the ultimate quality of surround field creation, while the Matrix 6.1 provides compatibility for the existing DTS 5.1 software. And the Neo:6 is to create 6.1 surround stage from any two channel source. DTS 96/24 allows for 5.1 channel sound track encoding at a rate of 96kHz/24 bits on DVD-Video titles. Higher sampling rates provide greater bit depth and allow a wider frequency response. In conjunction with the use of anti-alias and reconstruction filters DTS 94/24 results in a more transparent sound quality equivalent to the original soundtrack and is fully backwards compatible at the same time. Dolby Pro Logic II Dolby Pro Logic is capable of producing a Multi Channel soundstage using only a two channel source, meaning that normal TV broadcast can only be decoded using this decoding technique. Now the standard is being successed by the Dolby Pro Logic II format, offering the full frequency range accross all channels and even with a stereo soundfield on the surround speakers. This experience of two channel decoding adds a more realistic element to watching TV and is fully compatible with the Dolby Pro Logic standard. CS II Circle Surround II is a powerfull and versatile multi-channel technology designed to enable up to 6.1 multi-channel surround-sound playback from mono, stereo, CS encoded sources and other matrix encoded sources. CS-II places the listener "inside" the music performances and dramatically improves the separation and image positioning of both hi-fi audio conventional surround-encoded video material, adding a heightened sence of realism. Experience the emotion Music and sound track reproduction is enhanced through a highly efficient source direct switch, which bypasses the total A/V section in audio mode. In direct mode, interference and disturbance by radiated electrical or magnetic fields are minimized, ensuring the shortest signal path for the highest degree of clarity and detail. Highly accurate 192kHz/24-bit audio D/A converters process the analog to digital conversion, resulting in a far more faithful sound quality compared to the original source. It encompasses the Marantz heritage with refinements such as a metal alloy faceplate, internal bracing and hand-selected customized components. Technological glossary: ■Provides excellent characteristics in differently encoded movie and music soundtracks. The advantages are an extended dynamic range, improved transparancy, separation and imaging resulting in an enveloping realistic and natural soundstage. ■Excellent frequency response and superb sonic perfomance for the highest standard such as SACD and DVD-Audio ■High quality video connection for maximized video content reproduction ■Allows audio and video source selection and control of a second room ■Make today's receiver for tomorrow's standard ready ■Personalised realistic surround sound reproduction ■Flexible system integration and total control by using one remote handset ■Allows upgrading to rapidly changing technologies Benefits: Features: ■Latest generation of DSP from Cirrus Logic decodes DTS ES, 96/24 decoding, Dolby Digital EX, Dolby Pro-Logic II and Circle Surround 6.1 ■Wide range full discrete Current Feedback amplifiers ■Component Video in/out ■Multi room/multi source ■Firmware update through RS-232C port ■TruSurround XT Headphone ■Programming learning RC1400 Remote Control and Marantz D-BUS system ■Firmware upgrade RS232c
Page 2
Convenience & Functionality´s The SR7400 presents multiple surround modes, like hall, stadium, virtual, matrix, movie and 6-channel stereo. The extensive feature list, such as auto preset tuning (program up to 30 stations), manual station naming, display dimmer, delay function and clock/timer characterize the functionality of the SR7400. An easy-to-use programmable, learning remote control allows full access to all of the operating functions and can be used for system operation as well. The unique Marantz D-BUS connection allows convenient linkage to other Marantz components. With the Marantz audio system placed in the main room of the house, a second pair of loudspeakers can be placed at a separate room. In those rooms an audio source can be selected seperately at a different sound level, even with full remote controlled functionality. Not only sound but even video signals can be handled in such a way that in the separate room a video source with OSD feature can be selected. In Marantz style To control entire system with one remote handset, Marantz has designed the D.Bus system. Individual devices inform each other and remote control commands are communicated via this bus line. The SR7400 comes with the RC1400, a programmable learning remote control, for full control of every Marantz and non-Marantz component. The total functionality of the RC1400 enables intuitive and extensive control over your SR7400, but also other IR based devices. ■User manual ■Power cable ■Remote control ■Batteries ■FM antenna ■AM loop antenna RC1400 Bypacked Accessories
