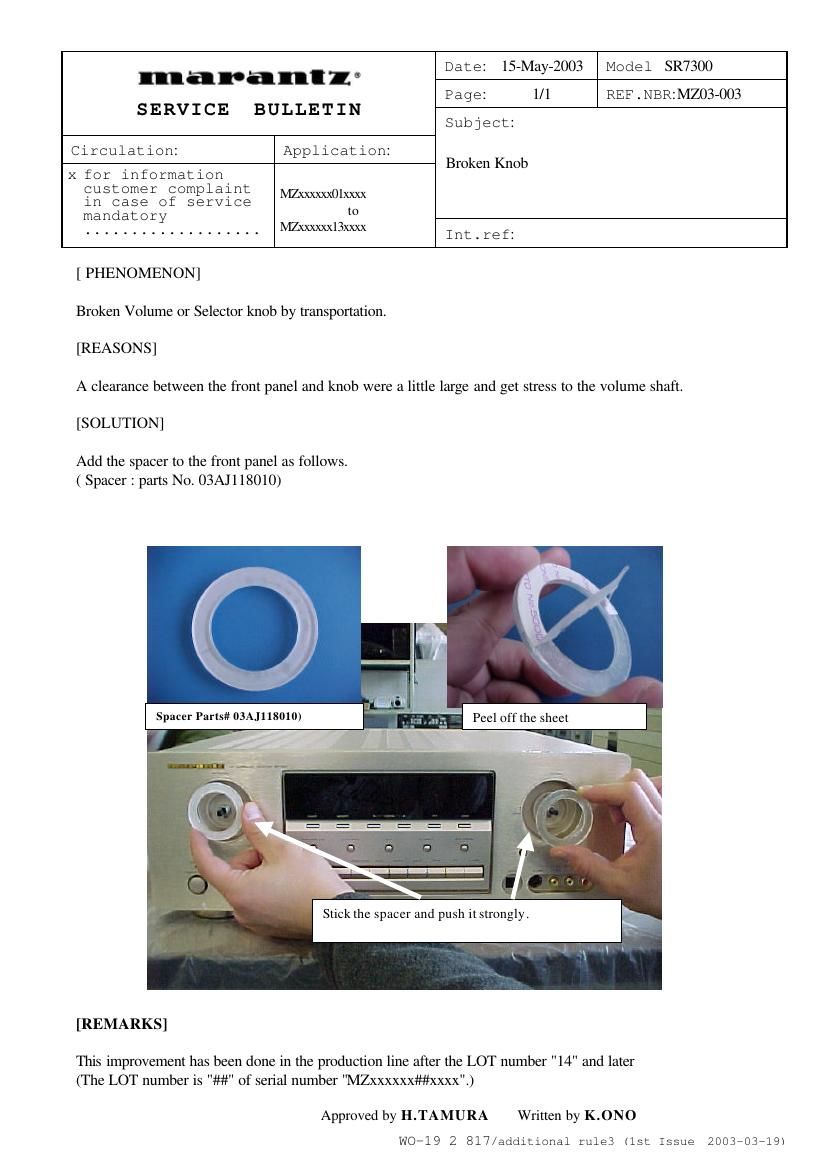

Marantz SR 7300 Service Bulletin
This is the 6 pages manual for Marantz SR 7300 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SR 7300 Service Bulletin (Ocr-read)
Page 1
Approved by H.TAMURAWritten by K.ONOWQ-19 2 817/additional rule3 (1st Issue 2003-03-19)Date :15-May-2003 ModelSR7300 Page :1/2 REF.NBR :MZ03-006 Circulation:Application: Subject: Int.ref :[ PHENOMENON] High tone noise can be heard a little from speaker. [SOLUTION] Please apply the modification of Solution 1 and Solution 2 to the units Lot 01 to Lot 15.Please apply the modification of Solution 2 to the units Lot 16 and after. (Solution 1 has already applied to the unitslot 16 and later.) * The lot number is mentioned in the Serial number label on the rear panel. ( ex. MZxxxxxx01xxxx : 01 lot) Solution 1 ( For lot 01 to 15)1) Cut a jumper wire [U304] on the PS04 board. 2) Add a capacitor < 1000uF/10V : Parts # OA10801020> between the pin 3 of the Q681 and the -side of the CU80 as follows. SERVICE BULLETIN Improvement of high tone noise xfor information customer complaint in case of service mandatory ...................ALLCut the Jumper wire [U304]Solder to the pin 3 of Q681Add and solder a capacitor 1000uF/16v. Solder + side of the capacitor to the pin 3 of Q681. And - side to the CU80( - side ) Add tube and fix the cap by glue.Solder to the - side of CU80
Page 2
Approved by H.TAMURAWritten by K.ONOWQ-19 2 817/additional rule3 (1st Issue 2003-03-19)MZ03-006 Page 2/2 Solution 2 ( For all lot)1) Add a wire (Length approx. 23cm : Wire size #18 or #20) as follows. (GND to GND) Note: Wiring must be done as following and fixed by glue (burn-resistant type).Add 23cm wireSolder to GND plateSolder to GND pin
