Marantz SR 7200 Service Manual

Page 1

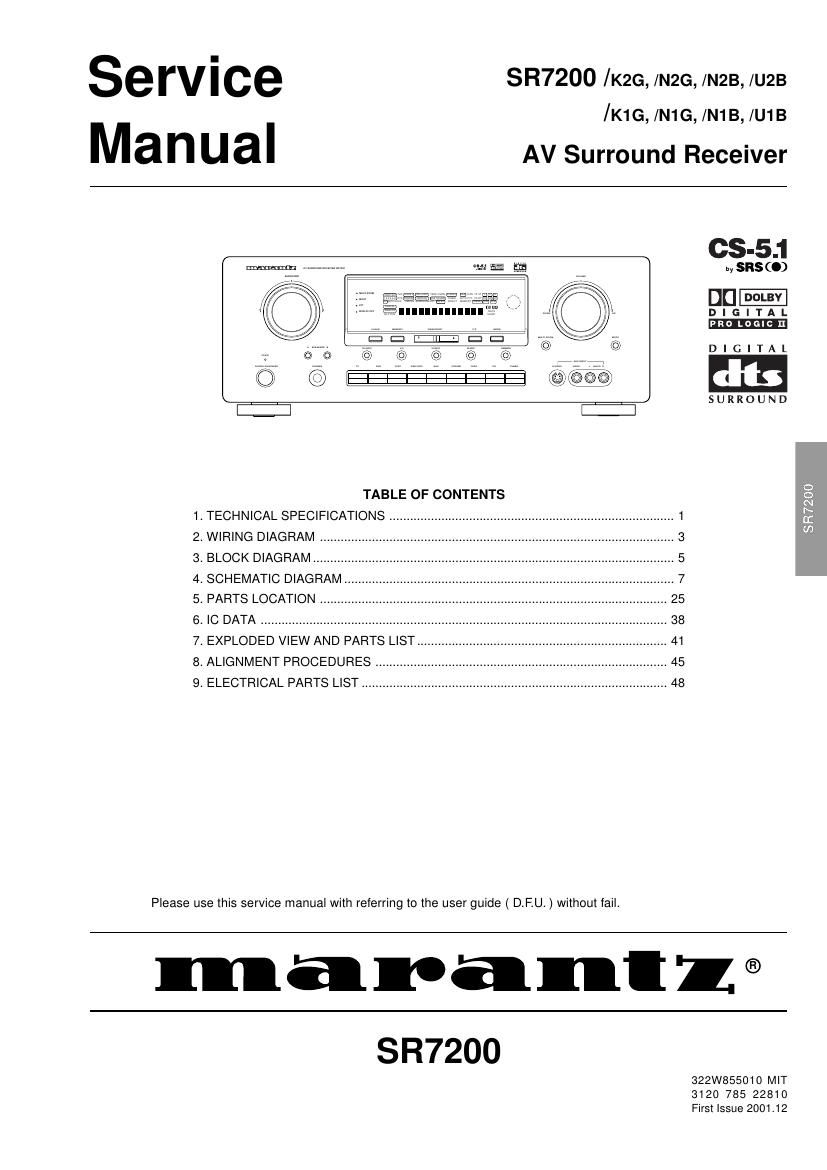

Service
Manual

SR7200 /K2G, /N2G, /N2B, /u23

/K1G, /N1G, /N1B, /U1B

AV Surround Receiver

(Dmflmm-hwk)

. TECHNICAL SPECIFICATIONS
. WIRING DIAGRAM .......................
. BLOCK DIAGRAM ...........
.SCHEMATIC DIAGRAM ..
. PARTS LOCATION .........
. IC DATA ...............................................
.EXPLODED VIEW AND PARTS LIST..
. ALIGNMENT PROCEDURES .............. .
. ELECTRICAL PARTS LIST ........................................................................................ 48

TABLE OF CONTENTS

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

CS-5.1

by SRS (0)

na-
DIGITAL

DIGITAL

SURROUND

maranll®

SR7200

322W855010 MIT
3120 785 22810
First Issue 2001.12
