Marantz SR 7002 Service Manual

Page 1

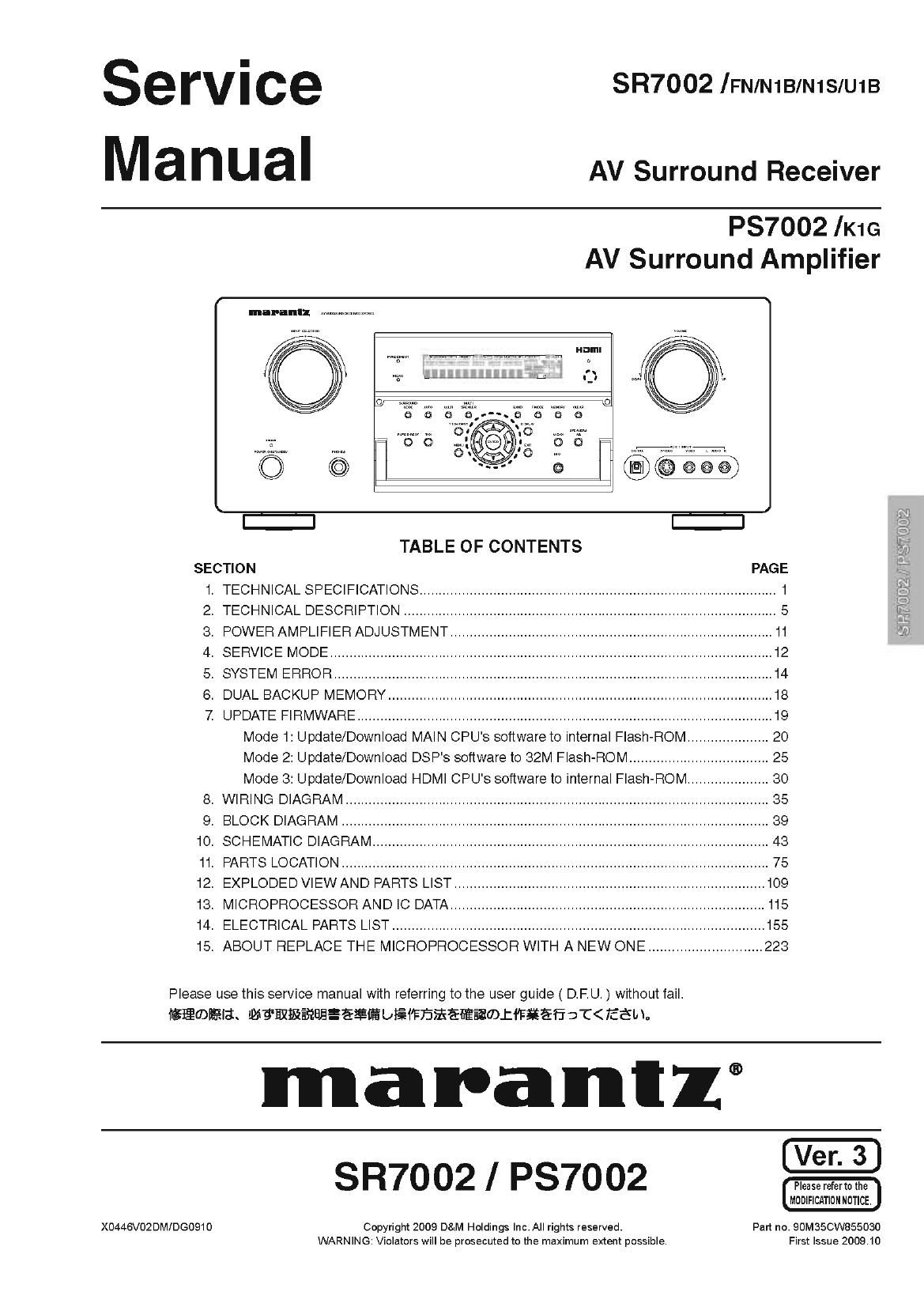

SerVi ce SR7002 IFNIN1BIN1SIU1B
Man Llal AV Surround Receiver

PSTOOZ IK1G
AV Surround Amplifier

TABLEOFCONTENTS

SECTION PAGE
1. TECHNICAL SPECIFICATIONS ............................................................................................ 1
2. TECHNICAL DESCRIPTION ................................................................................................ 5
3. POWER AMPLIFIER ADJUSTMENT ................................................................................... 11
4. SERVICE MODE .................................................................................................................. 12
5. SYSTEM ERROR ................................................................................................................. 14
6. DUAL BACKUP MEMORY ................................................................................................... 18
7. UPDATE FIRMWARE ........................................................................................................... 19
Mode 1: Update/Download MAIN CPU's software to internal Flash-ROM ..................... 20

Mode 2: Update/Download DSP's software to 32M Flash-ROM .................................... 25

Mode 3: Update/Download HDMI CPU's software to internal Flash-ROM ..................... 30

8. WIRING DIAGRAM ............................................................................................................. 35
9. BLOCK DIAGRAM ........................................................................................................ 39
10. SCHEMATIC DIAGRAM ...................................................................................................... 43
11. PARTS LOCATION .............................................................................................................. 75
12. EXPLODED VIEW AND PARTS LIST ................................................................................ 109
18. MICROPROCESSOR AND 10 DATA ................................................................................. 115
14. ELECTRICAL PARTS LIST ................................................................................................ 155
15. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE ............................. 223

Please use this service manual with referring tothe user guide ( D.F.U.) without fail.
ssmeo.Mommawesgsossesewswxwififi:t

m a [5 n I 1 ®
SR7002 / PS7002 213.51.:

MODIFICATION NOTICE.

UI

X0446V02DMIDG0910 Copyright 2009 D&M Holdings |nc.A|| rights reserved. Part no. 90M350W855030
WARNING: Violators will be prosecuted to the maximum extent possible. First Issue 2009.10
