Marantz SR 3053 Service Manual

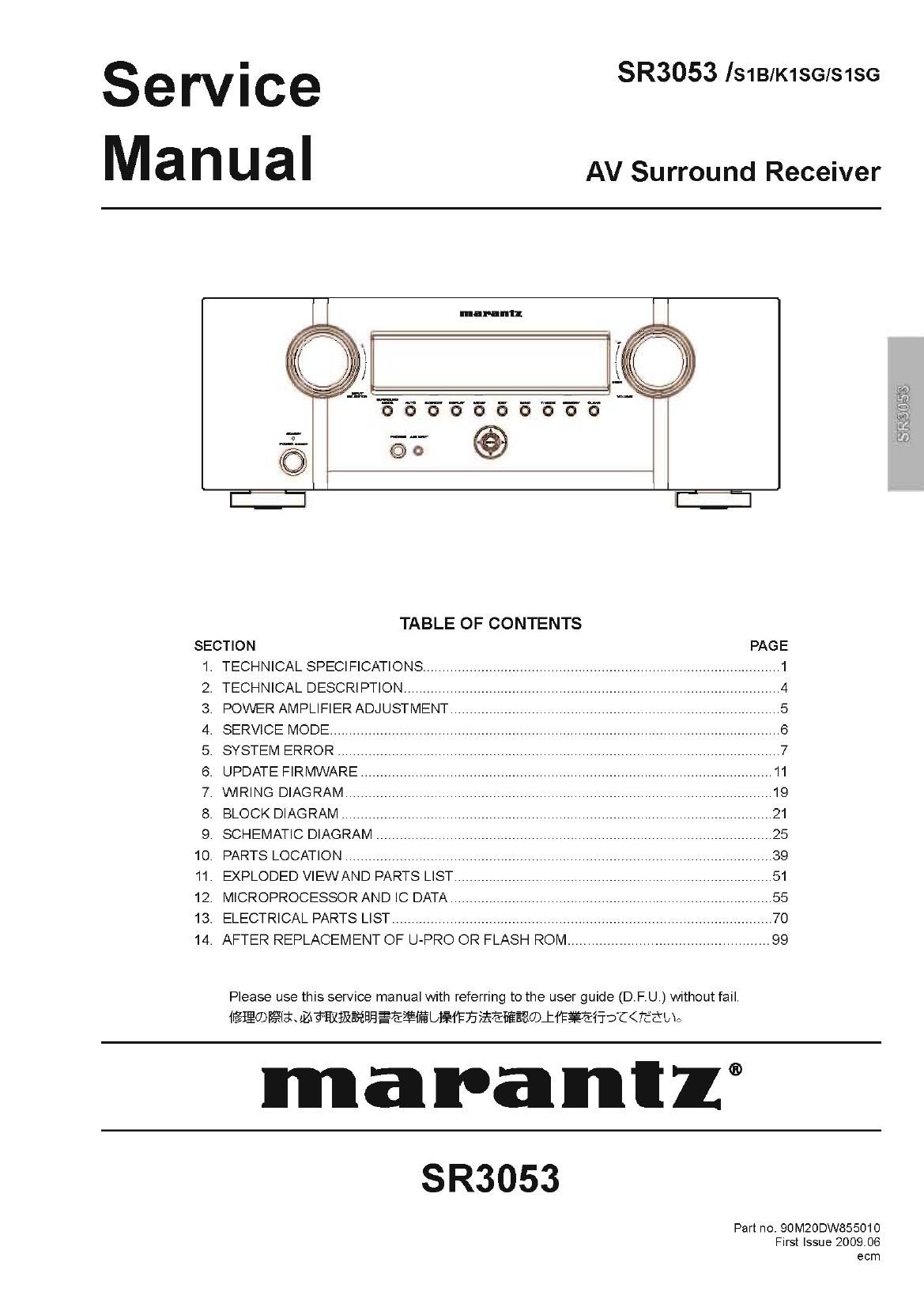

Page 1

Service
Manual

SR3053 IS1BIK1SGIS1SG

AV Surround Receiver

IIIEPIIIII

TABLE OF CONTENTS
SECTION PAGE
I. TECHNICAL SPECIFICATIONS ............................................................................................ I
2. TECHNICAL DESCRIPTION ................................................................................................. 4
3. POWER AMPLIFIER ADJUSTMENT ..................................................................................... 5
4. SERVICE MODE .................................................................................................................... 6
5. SYSTEM ERROR .................................................................................................................. 7
6. UPDATE FIRMWARE .......................................................................................................... II
7. WIRING DIAGRAM .............................................................................................................. 19
8. BLOCK DIAGRAM ............................................................................................................... 21
9. SCHEMATIC DIAGRAM ...................................................................................................... 25
IO. PARTS LOCATION .............................................................................................................. 39
11. EXPLODED VIEWAND PARTS LIST .................................................................................. 51
12. MICROPROCESSOR AND IC DATA ................................................................................... 55
13. ELECTRICAL PARTS LIST .................................................................................................. 70
14. AFTER REPLACEMENT OF U-PRO OR FLASH ROM ................................................... 99

Please use this service manual with referring to the user guide (D.F.U.) without fail.

IEIEODIgIat MWWEFEEH EEEIJE Mil???ififififififiwilffifiifijt

maranlt

SR3053

Part no. 90M20DW855010
First Issue 2009.06

ecm

:Z'VIFLIE: I; 13:.

Page 2

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, IVIARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for
which it is famous.

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by FaX.. In both cases, the correct part number has to be specified.

The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model numberforwhich part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

- USA - - EUROPEITFIADING - - CANADA
MARANTz AMERICA, INC D&M EUROPE B. v. D&M Canada Inc.
100 CORPORATE DRIVE P. 0. BOX 8744, BUILDING SILVERPOINT 57505 APPLE CREEK BLVD.
MAHWAH, NEW JERSEY 07430 BEEM DSTRAAT 11, 5653 MA EINDHOVEN MARKHAM, ONTARIO L3R 5B1
USA THE NETHERLANDS CANADA
PHONE : +31 , 40 , 2507844 PHONE 905 , 415 , 9292
FAX :+31 , 40 , 2507860 FAX :905 , 475 74159
* JAPAN - KOREA
D&M Holdings Inc. 13513111 $4 -7y F I Am- 1|)?»r ya; D&M SALES AND MARKETING KOREA LTD.
D&M BUILDING, 241 NISSHINHCHO, CHUNG JIN B7D., #1001,
KAWASAKI-KU, KAWASAKI-SHI, 53-5, WONHYORO 3 GA, YONGSAN-GU,
KANAGAWA, 210-8569 JAPAN El: 3i T210653 SEOUL, 1407719, KOREA
Hfilllfillllfififillllfizafimjm owl-3A2 PHONE :+82 . 2 . 323 72155
FAX :+82 72 , 323 72154

i CHINA

D&M SALES AND MARKETING SHANGHAI LTD.
ROOMBOB SHANGHAI AIRPORT CITY TERMINAL
NO.1600 NANJING (WEST) ROAD, SHANGHAI,
CHINA. 200040

TEL :021 - G248 - 5151

FAX : 021 F 6248 F 4434

NOTE ON SAFETY :

Symbol A Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol A.
Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

EEJJDSIE :
ADOOTOSBABIA BESLEBSBABDSO DTTBESHTOSBABSSOSOSRRCTTSOO

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary
AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the face or Front Panel of
product and controls and chassis bottom.

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verified before it is return to the user/customer.

Ref. UL Standard No. 60065.

In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.

080702MZ
