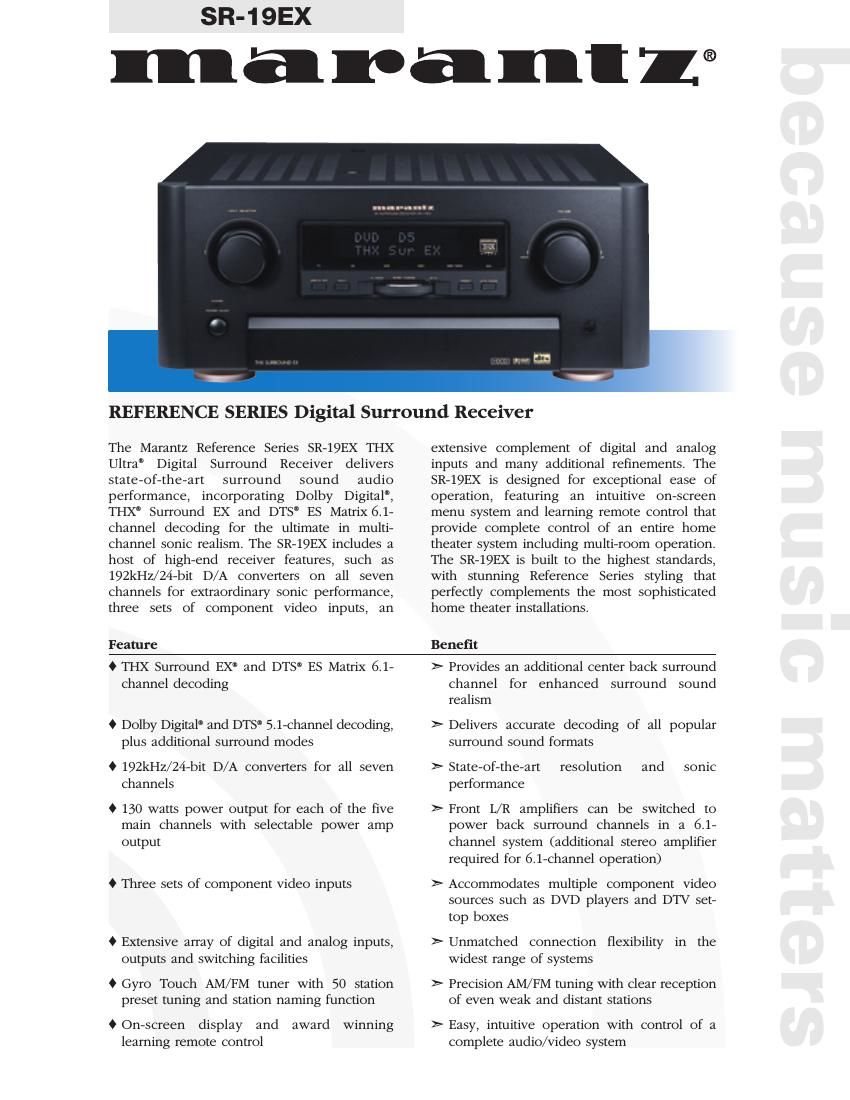

Marantz SR 19 EX Brochure

Page 1

Specifications FM tuner section: Frequency range 87.5 - 108.0MHz Usable sensitivity IHF 1.8µV/16.4dBf Signal to noise ratio Mono/Stereo 76/72dB Distortion Mono/Stereo 0.2/0.3% Stereo separation 1kHz 45dB Alternative channel selectivity ±300kHz 60dB AM tuner section: Frequency range 520-1710kHz Signal to noise ratio 50dB Usable Sensitivity Loop 400µV Distortion 1kHz, 30% Mod. 0.5% Selectivity ±20kHz 70dB Audio section: Continuous power output (RMS) (<0.05% THD, 20Hz - 20kHz) Front (20Hz - 20kHz) 8Ω130W/Ch Center (20Hz - 20kHz) 8Ω130W/Ch Surround (20Hz - 20kHz) 8Ω130W/Ch Input sensitivity/impedance Linear 350mV/47KΩ Signal to noise ratio Linear 106dB Frequency response (analog input/source direct) 8Hz-80kHz(±3dB) General: Power requirements AC 120V 60Hz Power consumption (stereo mode rated power) 530W Dimensions 7 15/32"H x 18"W x 19 3/8"D 190mm x 458mm x 493mm Weight 50.7lbs (23kg) Accessories: Remote control unit RC-18SR 1 AA-size batteries 4 FM feeder antenna 1 AM loop antenna 1 Note:The specifications and design of this product are subject to change without notice. Reference Series Digital Surround Receiver SR-19EX 440 Medinah Road ~ Roselle, Illinois 60172 ~ phone 630.307.3100 fax 630.307.2687 Locate an authorized dealer in your area at: www.marantz.com THX EX, THX Ultra, THX Select, THX and Lucasfilm Cinema RE-EQ are registered trademarks of Lucasfilm Ltd. DOLBY, DOLBY DIGITAL, Dolby Pro Logic, Dolby B, C, S, and Dolby HX Pro, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corp. DTS is a registered trademark of DTS Technology. DTV is a registered trademark of ATSC Laboratories. State-of-the-Art Home Theatre Surround Sound
