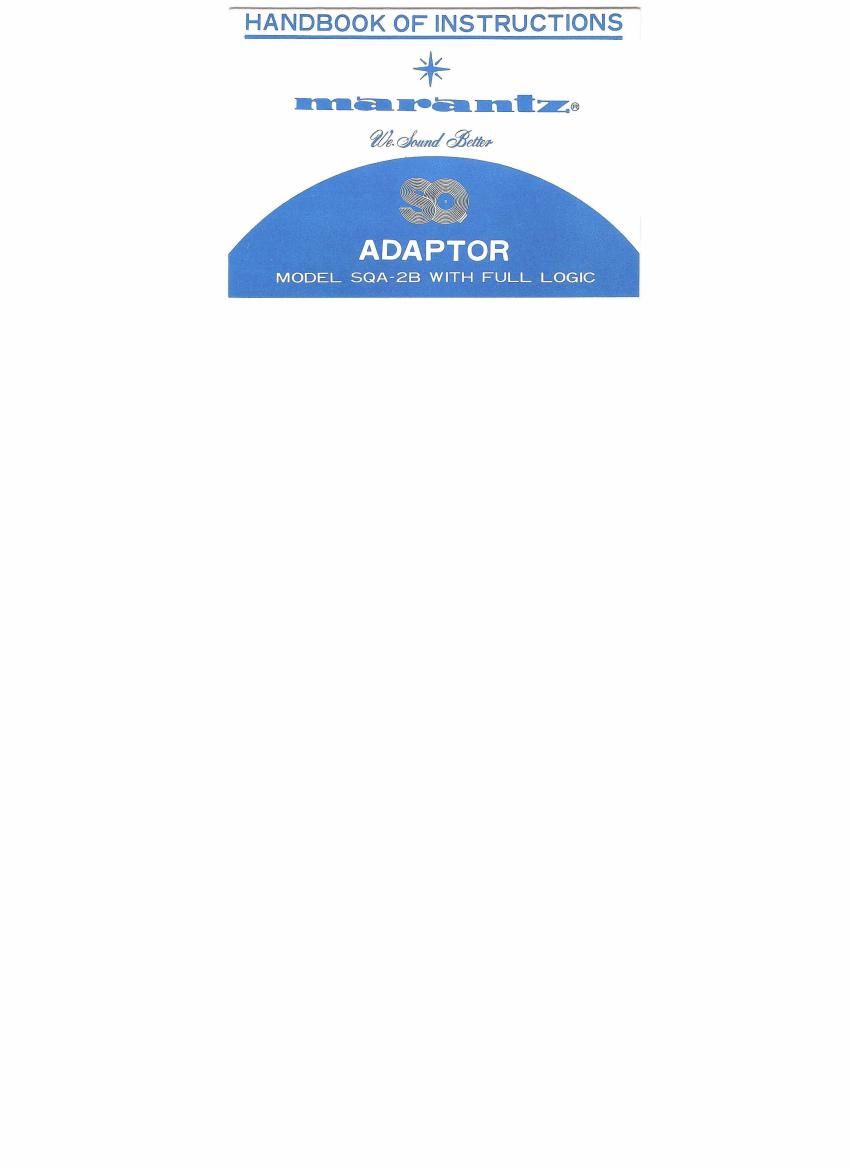

Marantz SQA 2B Adaptor Owners Manual
This is the 3 pages manual for Marantz SQA 2B Adaptor Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SQA 2B Adaptor Owners Manual (Ocr-read)
Page 1
GENERAL DESCRIPTION TheModel SQA·2B 4-channel decoder is specifically designed for plug-in use with those Marantz 4-channel audio components which feature theappropriate under-chassis recess ("pocket") and multiconnector. The SQA-2B con tains aCBS-SQ systemdecoding matrix, aphase shifter, and a full logic circuit to enhance channelseparation. When equipped with SQA-2B a Marantz 4-channel component offers full 4-channel SQsystem decoding capability. ASSEMBLING INTO ASSOCIATED MASTER UNIT Turn the master unit's power switch OFF. Refer to the master unit's instruction manual to find theSQA-2B decoder recess cover on the underside of themaster unit's chassis. Remove the cover by unscrewing the four cover screws. Plugthedecoder into the multiconnector so that the four SQA-2B screwholesline up with the four chassis screw holes. (If thescrew holes don't lineup,the SQA-2B is upside down.) NOTE: To remove your master unit from its optional wood cabinet (or to install it in the cabinet), temporarily unplug the SQA-2B, thenslide the cabinet off (or on), thenreconnect the SQA-2B as above. OPERATION Set your master unit's mode switch to the SQ DE· CODER or4CH DECODER position. Inthis position, the SQA-2B isinthe circuit. Ifany other position isselected on the mode switch, theSQA-2B isout of the circuit. PRECAUTIONS:The Model SQA-2B is specifically designed for certain Marantz 4-channel components only. Marantz isnot respon sible for any damage resulting from any attempt to connect theSQA-2B to any audio component for which the SQA-2B was not specifically designed. DESCRIPTION GENERALE Le decodeur4-canauxSQA-2Bestun module qui ete specialement conc;u pour etre branche sur les appareils 4-canaux comportant un compartiment adequat sous Ie chassisainsi qu'un connecteur ml,Jlti-broches. LeSQA-2B possede unsvsteme dedecodage matriciel du type CBS-SQ, un dephaseur etun circuit logique integral ameliorant la separation entre les canaux. Lorsqu'un appareil4-canaux Marantz est equipe duSQA-2B, il peut decoderainsi Ie svsteme quadriphonique SQ. INSTALLATION DU MODULE DANS L'APPAREIL Eteignez I'appareil (Commutateur en position "OFF") Vovez Ie manuel d'utilisation de I'appareil principal de maniere asituer Iecouvercle du compartiment du SQA-2B sous Iechassis.Enlevez ce couvercle en devissant les quatre vis qui Ie maintiennent. Enfichez Ie decodeur dans Ie connecteur multi-broches demaniere ace que les quatre trous des vis du SQA-2B soientalignes avec les quatre trous des vis duchassis. (Si ces trous ne sont pas alignes, Ie ___ .....S'-"OA2fLes.t aI'eover.s). NOTE: Pour sortir votre appareil principal deson boitier en bois, disponible en option, (ou pour I'V installer), demontez temporairement Ie SQA-2B etfaites ensuite glisser Ie boitier. Apres cela,rebranchez Ie SQA-2B, comme decrit ci-dessus. FONCTIONNEMENT Placez Ieselecteur "MODE" devotre appareil principal en position "SO DECODER" ou "4CH DECODER" Dans cette position, IeSQA-2B estmis en circuit. Dans les autres positions, IeSQA-2B est hors circuit. PRECAUTIONS:Le modele SQA-2B est specialement conc;u pour certains appareils Marantz4-canaux seulement. Marantzn'est pas responsable des dommages qui pourraient resulterdu fait que Ie SQA-2B ait ete branche surunappareil auquel il n'etait pas destine.
Page 2
~ T --- -- .. -- ... ~® MARANTZ CO, INC..pO.BOX 99·SUN VALLEY,CALIFORNIA, 91352 AWHOLLY-OWNED SUBSIDIARY OF SUPERSCOPE INC., SUN VALLEY,CALIFORNIA 91352 PRINTED INJAPAN 2923851210
