Marantz SM 17 Owners Manual
This is the 6 pages manual for Marantz SM 17 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz SM 17 Owners Manual (Ocr-read)

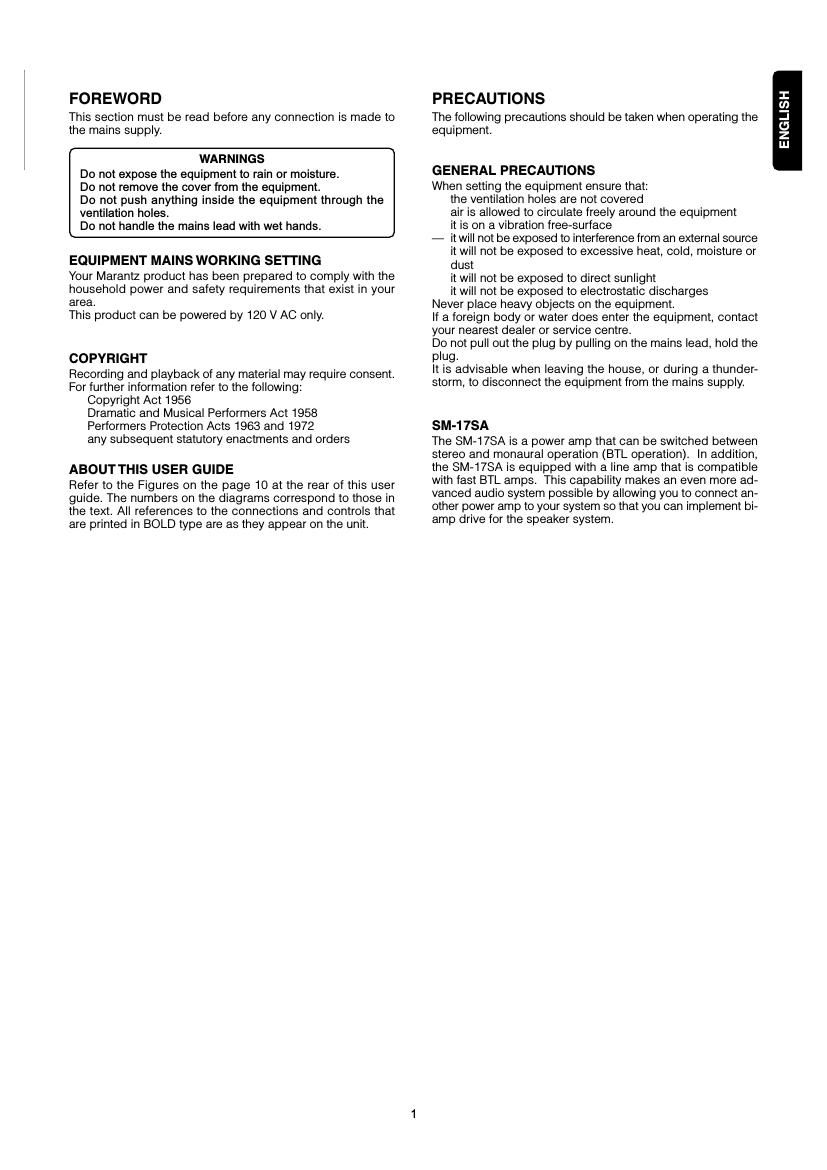

Page 1
ENGLISH 2 AC N SPEAKERSL BTL R L R SPEAKERS IMPEDANCE L&R 4 OHMS BTL 8 OHMS 1 0A 120W MAX TOTAL AC OUTLETSSW TCHED UNSWITCHED1 0A 120W MAX120V 60HZ 2 L+ NORMAL L -L INPUT BTL OUT 0 R+ R -BTL -6 (dB) ATT SER AL NO LR CONNECTIONS OF AMPLIFIER Connect the output jacks of your pre amplifier to the INPUT jacks Connection of speaker systems Each of the speaker systems connected to this unit should have a impedan\ ce between 4 and 16 ohm. Connecting a speaker system with a lower impedance than 4 ohm may activate the protection circuitry during sound reproduction. The output terminals are provided with the positive ( :Red) and negative ( : White) polarity, and the input terminal of each speaker system also has the polarity ( and ). Be sure to connect the terminals with the identical polarity. Caution: If you will be using two speaker systems, or you will be using the SM-17\ SA in BTL mode, use speaker systems that have an impedance of at least 8 ohm. If you connect a speaker system that has a\ n impedance of less than 8 ohm, the SM-17SA s protective circuitry may be worked, making the amplifier incapable of no\ rmal stereo playback. Connection of speaker cord CONNECTIONS The connection method illustrated below is used when the SM-17SA is being used as a stereo power amp. For details on other connection methods, refer to the examples on the fo\ llowing page. Speaker system Connect the right channel speaker system to the R out- put terminals and the left chan- nel speaker system to the L output terminals. To AC power outlet MRANTZ PM-17SA Integrated-amp or other pre-amp To pre output Set NORMAL position Strip coating from extermity.Twist conductors. Turn counterclockwise to loosen. Insert conductors. Turn clockwise to tighten. Speaker cord
Page 2
ENGLISH 3 EXAMPLES OF USAGE The examples shown below illustrate a Marantz PM-17SA (pre-main amp) and an SM-17SA being used in combination for bi-amp drive of a speaker system that is compatible with bi-wiring. Example 1: Bi-amp connection with a PM-17SA + SM-17SA Set switch to COUPLED position.Set switch to BTL position. Set switch to -6(dB) position. Set switch to -6(dB) posi- tion. Set switch to BTL position. Set switch to COUPLED position. Set switch to NORMAL position. Set switch to 0(dB) position. Example 2: Bi-amp connection with a PM-17SA + two SM-17SAs This example uses two SM-17s, each in BTL operation mode. This setup ca\ n powerfully drive the speaker systems bass driver unit . HF LF HFLF OFF CD SPEAKERS REC SE ECTORL NE 3 HO O AP CD R C PYNE 1 T MP NTEGRA ED AMPL F ER PM 17 L NE 2 L NE 1 T PE PHONO CDIN UT SELE TOR 4 2 0 2 4 6dB) OFFON ( d ) 6 60 2 4 2 4 dB) EFTR GHT BASS L NE 3 POWER VOLUME BALANCE PHONES TREBLE 8 43 4 3 27 5 10 D RECTSOURCE 15 0 8 0 CD R NE 2ON EMP POWER MPL F ER M 17 POWER EMP POWER MPL F ER M 17 POWER R L SPEAKERS L BTL R SPEAKERS I EDANCE L+R 4 8 OHMS TL 8 16 OHMS SPEAKERS L BTL R SPEAKERS IMPEDANCE L+R 4 8 OHMS BTL 8 16 OHMS SPEAKERS L BTL R SPEAKERS IMPEDANCE L+R 4 8 O MS BTL 8 16 HMS R L OUT IN COUPLED SEPARATE PRE L MAIN R R R L+ NORMAL L- L INPUT (BTL) BTL OUT 0 R+ R BTL 6 (dB) ATT L R R L+ NORMAL L L INPUT (BTL) BTL OUT 0 R+ R BTL 6 (dB) ATT HF LF HFLF OFF CD SPE KERS EC ELECTORI E 3 P ONO A E CD R C YL N 1 EMP INT GRATED AMPL F ER PM 17 L NE 2 NE 1 APE PHO O DNPUT SE ECTOR 6 4 2 0 2 4 6d ) OFFON ( B) 6 60 2 4 2 4 d ) LE T R GHT BASS I E 3 POWER VOLUME BAL NCE PHONES TREBLE 8 3 4 13 7 35 10 IR CTSOU CE 15 20 58 0 CD R L N 2ON TEMP POWER AMPL F ER SM 7 POWER SPEAKERS L BTL R SPEAKERS MPEDANCE L+R 4 8 OH BTL 8 1 HMS SPEAKERS L BTL R SPEAKERS IMPEDANCE L+R 4 8 O MS BTL 8 16 HMS R L OUT IN COUPLED SEPARATE PRE L MAIN R R R L+ NORMAL L- L INPUT (BTL) BTL OUT 0 R+ R BTL 6 (dB) ATT L R
