Marantz SD 5060 Owners Manual

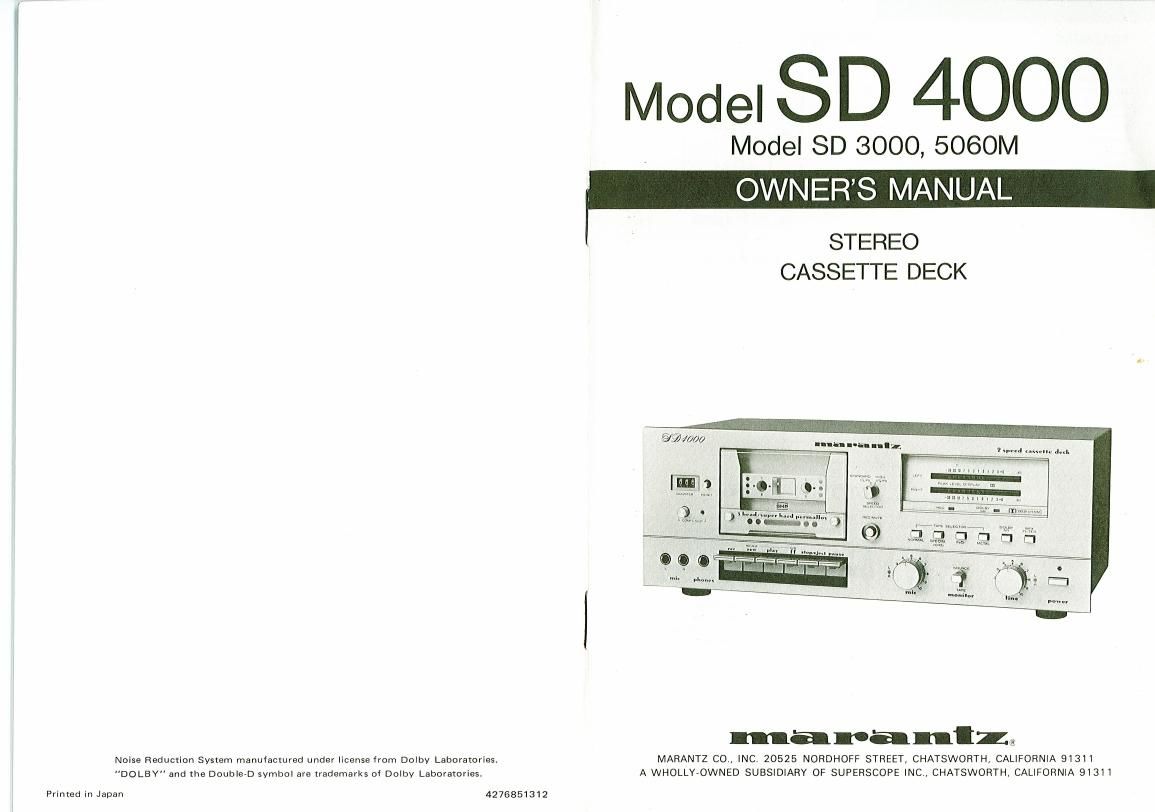

Page 1

Model SD 4000

Model SD 3000, 5060M
OWNERS MANUAL

STEREO
CASSETTE DECK

6/1/0011 1 .-u ulz

mama nlzg

Noise Reduction System manufactured under license from Doiby Laboratories. MARANTZ CO, [NC 20525 NORDHOFF STREET, CHATSWORTH, CALIFORNIA 91311
DOLBY and the Double-D symbol are trademarks of Dolby Laboratories. A WHOLLY-OWNED SUBSIDIARY OF SUPERSCOPE |NC., CHATSWORTH, CALiFORNiA 91311

Printed in Japan 4276851312

Page 2

REAR PANEL SIGNAL CONNECTIONS

MODEL SD 3000/SD 4000

CAUTION:
DO NOT PLUG THE TAPE DECK INTO A
DC OUTLET, AS SERIOUS DAMAGE WILL
OCCUR.

000000

CC)

000)

00

@oo

YOUR AMPLIFIER 0R RECEIVER

M

FOREWORD

To obtain maximum performance and enjoy-
ment from your Stereo Cassette Deck, please
study these instructions carefully. Installing and
operating your deck IS not complicated, but the
flexibility provided by its numerous operating
features merit your becoming familiar with its
controls and connections. Our recommended
procedure will assure you of securing the superb
performance for which your Stereo Cassette
Deck was designed.

For convenience, this manual is divided into
two parts. The first part outlines a simplified
operating procedure. The second part provrdes
a more detailed description of the features of
your Stereo Cassette Deck, and explains some
of the finer points of recording techniques.

For quick identification of the many controls,
connection facilities, and adjustments on your
deck all references to them in this manual are
printed in BOLDFACE type.

Your Marantz product has been specially pre»
pared to comply with the household power and
safety requirements that exist in your locale.
Please check the alphabetical suffix following
the serial number of your Marantz product.
Refer to the following table to note the differ-
ences that exist between your unit and the unit
pictured and described in this manual.

A - Operating Voltage: 240 V AC.

C - Operating Voltage: 120 V AC.

E, N - Operating Voltage: 220 V AC. A ground
post is provided for connection to a boni-
fied earth ground.
(This unit can be converted by a qualified
technician to operate on 110-120/220
240 V 50/60 Hz)

P » Operating Voltage: 120 V AC.

Should it become necessary to convert this unit
to a different operating voltage, please note
that a proper fuse must be substituted for the
one currently in the unit.

FOR UNITS SOLD IN THE UNITED
KINGDOM:

IMPORTANT
The wires in this mains lead are coloured in ac»
cordance with the following code:

Blue # Neutral
Brown ~ Live

BLUE BROWN

As the colours of the wires may not correspond
with the terminal identification in your plug,
proceed as follows:

Connect brown wire to the terminal marked
"L" or coloured brown or red,

Connect blue wire to the terminal marked N"
or coloured blue or black.

For 13 A plugs, conforming to BS 1363, use a
3 A fuse.

For other plugs, use a 5A or lower fuse in the
plug or adaptor or at the distribution board.

AFTER UNPACKING

It is advisable to retain all original packing
material to prevent damage should you wish to
transport your Cassette Deck (refer to page 13
for repacking and shipping instructions). Be
careful that you do not inadvertently throw
away or lose the parts packed with the unit.

Please inspect your Stereo Cassette Deck care
fully for any signs of shipping damage. Our very
strict quality control and professional pride
ensure that each tape deck left the factory in
perfect condition. if the unit is damaged or fails
to operate, immediately notify your dealer. If
the unit was shipped to you directly, notify the
transportation company without delay. Only
you,the consignee, may institute a claim against
the carrier for shipping damage. Save the carton
and all packing material as evidence of damage
for their inspection. If necessary, contact your
dealer or, as a last resort, your Marantz import-
ing agent, who will fully cooperate under such
circumstances.
