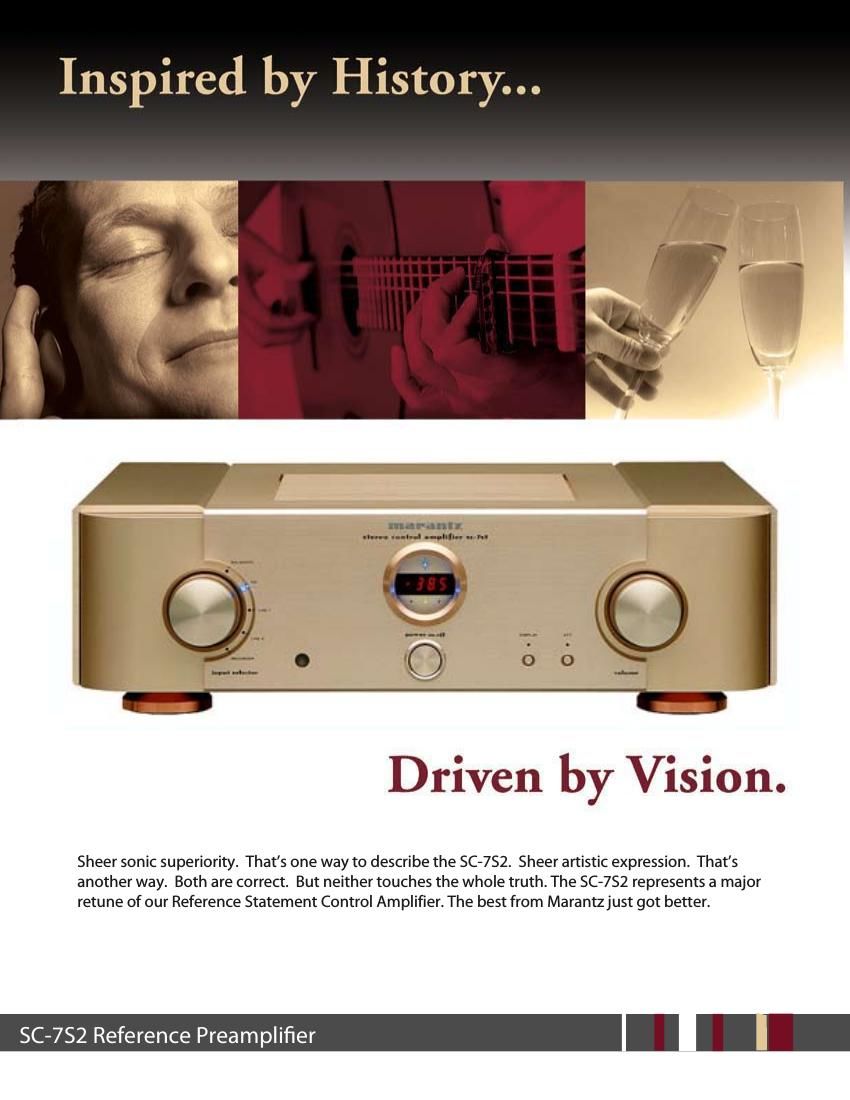

Marantz SC 7 S 1 Brochure 2

Page 1

The SC-7S2 thoroughly updates the distinctive voice of the original Marantz Model 7 preamplifer and further improves on the acclaimed SC-7S1. This work of art defnes new horizons in both musical performance and contemporary elegance. It is an enduring testament to the synergy of todays technologies with frequency response and channel separation far exceeding conventional requirements. The SC-7S2 achieves these goals with a fully balanced current-feedback topology and a power supply based on a aluminum-encased toroid power transformer, Shottky barrier rectifer diodes, and low-ESR electrolytic storage capacitors for optimal power conditioning and distribution. Each input is fully bufered with Marantz-developed discrete circuitry for accurate signal transfer. Four Wolfson WM8816 high-precision multi-gang volume controls and 12 Marantz-proprietary HDAM-SA modules form an incredibly precise attenuation circuit fully capable of 0.5 dB resolution throughout its entire 100 dB range. Although the SC-7S2 is devoutly two-channel, it acknowledges multi-channel music with a foating bus (our F.C.B.S.) that allows you to control multiple units simultaneously for exciting multi-channel reproduction of any source. The copper-plated aluminum chassis provides exceptional dimensional stability while copper and steel sub-members ofer isolation from radio frequency (RF) and electromagnetic interferences (EMI). Adjustable muting and trim let you tailor the SC7S2 to your preferences. You can turn of the display to totally reduce potential distractions. And a Marantz system remote control lets you enjoy the SC7S2s exceptional performance from your favorite listening/viewing location. SC-7S2 Reference Preamplifer *All specifcations, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document. ©2007 Marantz America, Inc. - www.us.marantz.com FEATURES GENERAL FEATURESNumber of Channels Output Power/Channel (20Hz - 20kHz) @ 8 HDAM Power Transformer Discrete Amplifer Stage Individual Level Adjust Tone Control Phono Input Source Direct Speaker A/B IN/OUTPUTSAUDIO Analog L&R In Main Channel Amp In Bridge Mono Mode Analog L&R Out Headphone Out OTHERS D-Bus Remote (RC-5) In/Out External Control (RS232C) AC Outlets (Switched/Unswitched)2 1.7V -(HDAM SA) Toroidal - - - - - - 1/3 (Balanced/Unbalanced) -(Bi-Ampmode) 2/1/1 (Balanced/Unbalanced/Rec Out) - Marantz Floating Control Bus - - / - SPECIFICATIONSTHD (20Hz - 20kHz, 8 Input Sensitivity/Impedance Frequency Response S/N Ratio GENERALColor Front panel Remote Control Power Requirement Power Consumption Dimensions (Inches) W x H x D Weight (lbs.) 0.0015% (Balanced) 420mV/20k 3Hz - 150kHz (+0, -3 dB) 105 dB (Unbalanced) Gold Aluminum Aluminum Top RC-7S1SC AC 120V 60Hz18W 18 x 7 3/8" x 17 3/ " 46.3
