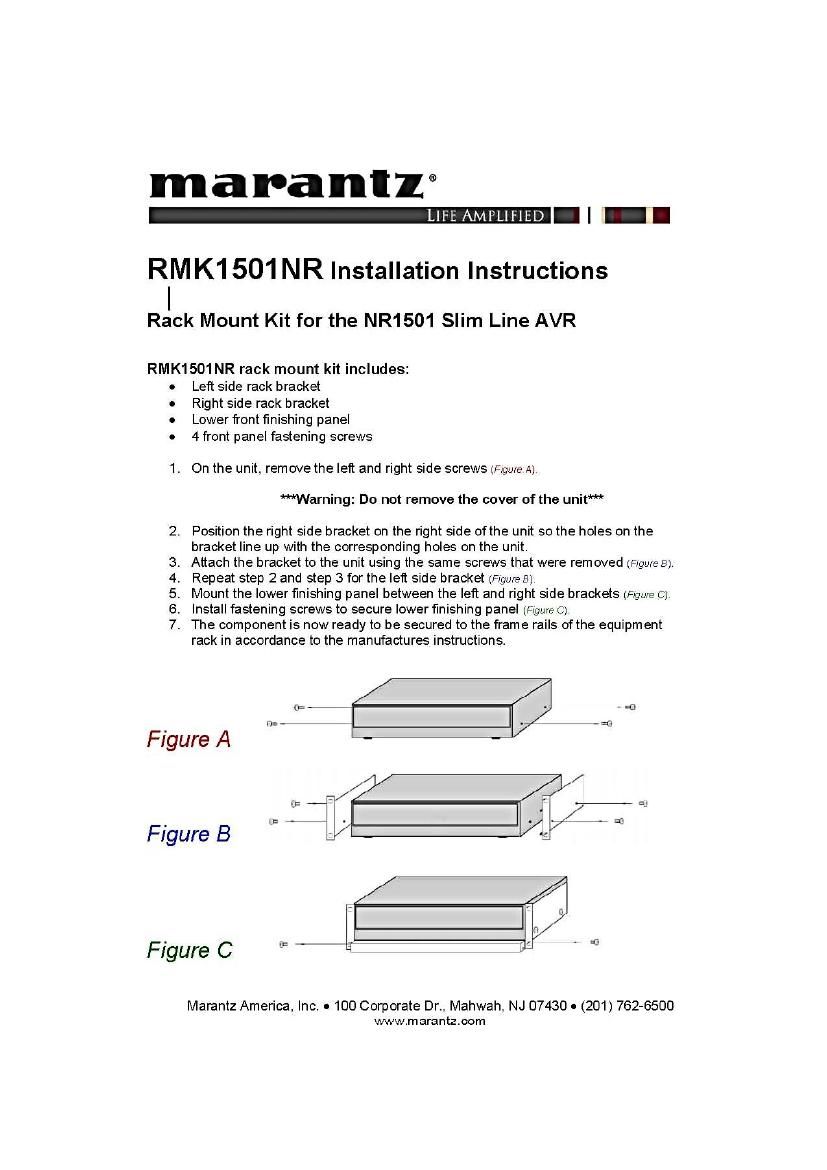

RM K1501 NR Installation Instructions
Rack Mount Kit for the NR1501 Slim Line AVR
RMK1501 NR rack mount kit includes:
.N
N97???
Figure A
Figure B
Figure C
Left side rack bracket
Right side rack bracket
Lower front finishing panel
4 front panel fastening screws
On the unit, remove the left and right side screws (Figure A)
*Warning: Do not remove the cover of the unit*""
Position the right side bracket on the right side ofthe unit so the holes on the
bracket line up with the corresponding holes on the unit.
Attach the bracket to the unit using the same screws that were removed (Figure 8)
Repeat step 2 and step 3 for the Ielt side bracket (Figure 5)
Mount the lower finishing panel between the left and right side brackets (Figure C)
Install fastening screws to secure lower finishing panel (Figure C)
The component is now ready to be secured to the frame rails of the equipment
rack in accordance to the manufactures instructions.
=3
Marantz America, Inc. 0 100 Corporate Dr,, Mahwah. NJ 07430 c (201) 762-6500
wwwtm arantz.com
