Extracted text from Marantz RC 9500 Brochure (Ocr-read)

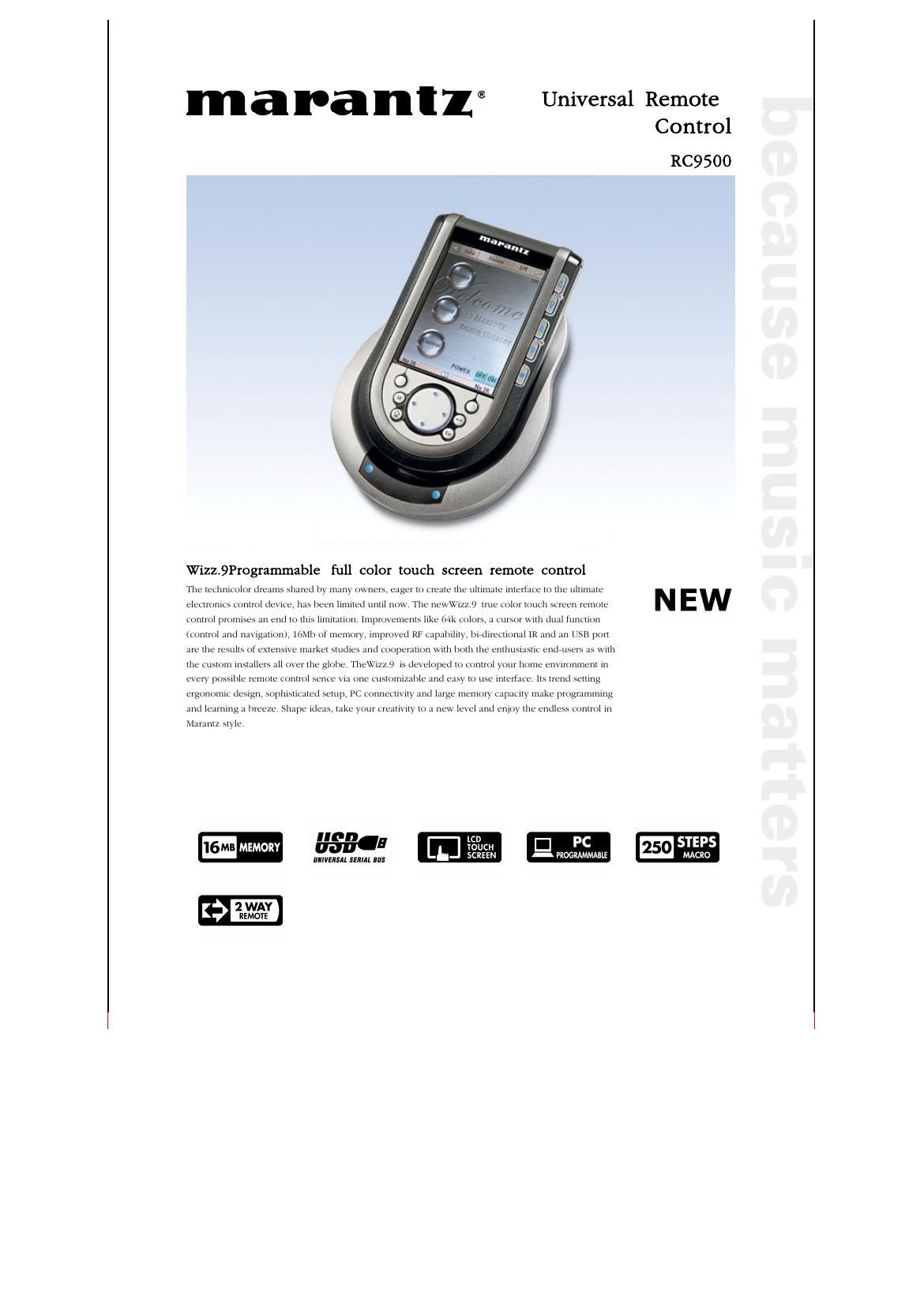

Page 1
Features Benefits High contrast, fully customizable 3.8" TFT LCD touch screen 64.000 Colors 16 Mb of non-volatile flash memory 2-Way IR 15 Programmable Direct-Access Buttons New Wizz-it 9 software IR/RF transmission capability Full screen editability USB connectivity Vastly improved readability due to an increased contrast ratio, without smearing and mottling of solid colours Full color display makes all your graphics come alive in close to real life colors A large internal memory allows unlimited design and program possibilities Provides a status feedback possibility when, used in combination with high-end Marantz receivers Using these pre-programmed hard keys allows fast access to IR commands without window scrolling More easy to use with a multitude of extra possibilities to ensure maximum personalization of every screen on your remote Very flexible, RF makes it possible to transmit even through a wall Fully customisable graphical remote layout lets you adapt the remote to each individual system setup Easy to connect to any PC with true plug and play editability Technological glossary: The fully customizable Wizz.9 is Marantz' next bold step forward in remote control technology. The new generation programmable learning remote controls incorporate an extensive array of user friendly innovations and improvements, housed in a sophisticated, ergonomic design. All of your existing remotes can be replaced with one easy-to-use, feature- packed remote for complete and customized control of your entire Home Entertainment system. The IR/RF capability allows the user to control infrared devices in cabinets or in other rooms with the simple addition of the optional Marantz RX-77. No matter how many components you have, operate them with ease and simplicity. You can even dim the lights, close the drapes and turn on the fireplace by one touch and the miracle of technology. A colorfull future at your fingertips The Wizz.9 has an improved 320x240 pixel 3.8" display with 64K colors that allows you to create real life 3-D buttons and pictures. The white backlight that lights up both the LCD and all hard buttons ensures perfect operability in the dark. The built- in pick-up sensor will switch the backlight on automatically. The digital contrast adjustment is always directly available to adjust the LCD-contrast similar to the possibilities already available on the RC5400. The units can be turned on with the manual backlight button at the side, while an integrated motion sensor will activate the LCD screen if it is lifted under an angle of 50° or more. It also wakes up either by pressing the hard buttons or by tapping the screen. Each touch screen panel is treated with an excellent anti-glare coating for significantly reduced reflection and optimized readability under different viewing angles. All the hard buttons, 18 in total, are intuitively placed for instant access and navigation between screens. 15 out of these 18 buttons are programmable for a product specific or global function. All hard buttons are back lit with blue El foil. The Wizz.9 an increased memory of 16Mb of non volatile, flash memory and will be extentable to 48Mb via a sofware upgrade which will be issued in a later stage. Now you will never run out of memory. The touch screen way A total of 18 hard buttons are available to perform basic functions: The channel up/down, mute, volume up/down buttons are conveniently located at the right side of the LCD. The 4-direction cursor key can both be used for controlling devices by infrared or navigating through the devices and pages on the LCD. The four buttons are freely programmable. Of the six buttons around the cursor five can be freely assigned and labeled. User customizable hard buttons total up to 15: nearly all of them, except for the top right hard button below the screen (a Function button) and the page up/down keys on the side. Also located on the side is a backlight button. Direct access buttons The Wizz.9 will be released with the new Witt-it.9 editing tool dedicated for the Wizz.9 (it won't work on any other model remote). This program will let you dive headfirst in the Wizz.9 remote control´s brand new features. We're talking 64k colors, bitmap transparencies, full screen editing (incl. system area), multiple open files and a host of other new goodies. But don´t just sit there reading this, download it as soon as possible. The Wizz.9 contains programmable instant surf buttons that call up any channel at the touch of a button, and features the ability to import channel icons and personalized graphics. Furthermore they come pre-programmed to operate a wide variety of Marantz audio and video products. In addition, they features up to 56kHz (and 455kHz) carrier frequency learning capability to operate the most popular brands of audio/video equipment. Customize and create Personalized setup can be further customized via a PC interface and Windows PC programming software that enables users to import custom animations, channel icons and even their own graphics and photos. The software package Remote Control Setup includes new functionality to help you create your configuration file, now called PCF: multi document, multi level (standard and advanced), transparency, multiple jumps in macro, full screen configurability, assignment of system functions to buttons and of course import CCF-files. We made it even more easy to hook this beauty to your PC via an USB connection. The new generation Marantz remote controls are future proof and allow you to update the software, which is downloadable at: . The future in mind www.marantz.com
Page 2
Many operational changes and improvements have also been made. For instance, there are now three ways to navigate the Wizz.9. The first method is via two on-screen buttons. One presents a device overview, while the other presents an overview of all pages under the device. The second method is by the page up/down hard buttons on the side, combined with device left/right buttons on-screen. Finally, the 4-way cursor pad can also be configured to select pages and devices, with a special toggle hard button that switches between this mode and normal device IR commands. Functional changes include full screen-configurability (system items can be added and removed), multiple page jumps, plus buttons with system function assignments (these are remote-specific operations, such as page history, backlight, etc.). Software improvements include conditional macros, new design objects such as tabs and listboxes, adjustable IR transmission times and more! Ease of use By default, the RC5400 uses infrared (IR) to operate the programmed AV components. This means that you have to point the remote towards the device you're operating. Normally, IR signals have an operating distance of maximum 10 meter. You can choose to operate devices using radio frequency (RF) signals instead of IR signals. Depending on the circumstances, RF signals have an operating distance up to approximately 30 meter in house and can, unlike IR signals, go through obstacles like furniture and walls. The RF signals sent out by the RC5400 are picked up by the RF extender RX-77. The RF extender translates the RF signals into the original IR signals and sends the IR signals to the appropriate component. The combination of the RC5400 with the optional RX-77 provide a great solution for an wireless multiroom or hidden system control. Optional: RX-77 RF extender - Windows 98/ME,Windows NT4.0/2000, Windows XP - 16 MB of RAM - 25 MB of free hard disk space - Free USB port PC requirements: Bypacked accessories - User manual - Recharging docking station - USB cable for PC connection - AC to DC power adapter (2) - NiMH 4,8V rechargeable batteries
