Extracted text from Marantz RC 3001 Service Manual (Ocr-read)

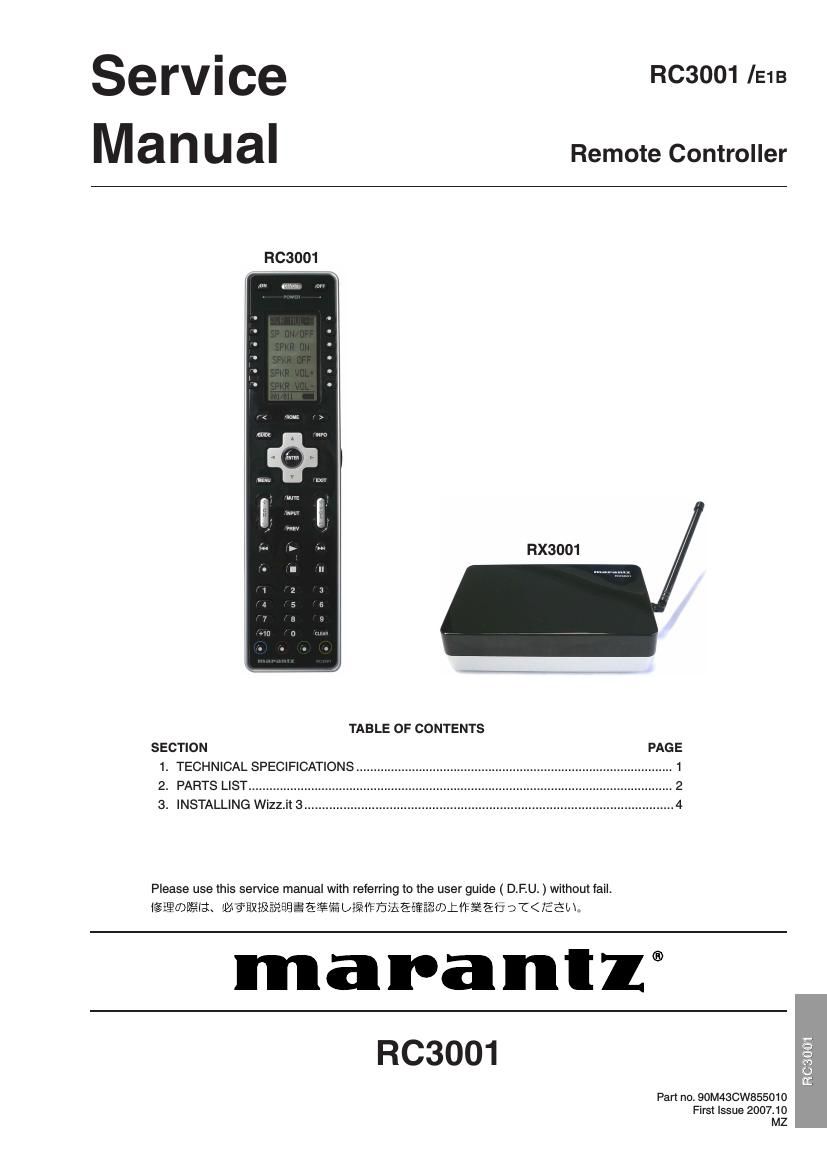

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 60065. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 070719MZ USA MARANTZ A MER IC A, I N C 100 CORPORATE DRIVE MAHWAH, NEW JERSEY 07430 USA EUROPE / TRADING M ARANTZ E URO PE B .V . P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 KOREA D&M SALES AND MARKETING KOREA LTD. C HUNG J IN B /D ., # 1001, 5 3-5 , W ONHYO RO 3 G A, Y O NG SAN -G U, SEOUL, 140-719, KOREA PHONE : +82 - 2 - 323 - 2155 FAX : +82 - 2 - 323 - 2154 CANADA D &M C ANADA IN C. 5-505 APPLE CREEK BLVD. MARKHAM, ONTARIO L3R 5B1 CANADA JAPAN D&M BUILDING, 2-1 NISSHIN-CHO, KAWASAKI-KU, KAWASAKI-SHI, KANAGAWA, 210-8569 JAPAN D &M H old in gs In c. CHINA M ARANTZ S H ANG HAI T R ADIN G L TD .RO OM .5 06 S H AN G HAI L IG HT IN DUSTR Y M AN SIO N1578 N AN JIN G ( W EST) R O AD S H AN G HAI CHINA TEL : 021 - 6248 - 1064 FAX : 021 - 6248 - 3565 NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. † ¶ Íw «™ UmMoM æ ¼xz† ¶ Í OAs æ ¼pb{ žc¦ ^-oM æ ¼ jøw‹w›–;`o<^M{
Page 2
1 1. TECHNICAL SPECIFICATIONS RESET 26 ENGLISH SPECIFICATIONS RC3001 LCD Resolution ............................................. 11x81pixel x6 line ................................................9x81pixel x1line Backlight .............................................. EL back light Transmission .............................................. IR or RF Learning .......................... Capability: MAX 1000code Operating/ learning IR frequency range .....................................................Up to 455kHz RF carrier frequency ............................... 433.92MHz Rechargeable battery pack .............................NiMH Battery Pack 700 mAh Interface .. USB 2.0 connection with USB bus power supply Memory Size ...................................... 4M bit (512kB) Dimensions (W x H x L) ............... 54 x 228 x 25 mm (2-3/16 x 9 x 1ins.) Unit Weight (With Batteries) ................ 210g (0.5lbs) DC 9V 25mm (1ins.) 54mm (2-3/16 ins.) 228mm (9 ins.) 3 $ @ & @ @ & / ( J O E E 1 . 26 ENGLISH SPECIFICATIONS RC3001 LCD Resolution ............................................. 11x81pixel x6 line ................................................9x81pixel x1line Backlight .............................................. EL back light Transmission .............................................. IR or RF Learning .......................... Capability: MAX 1000code Operating/ learning IR frequency range .....................................................Up to 455kHz RF carrier frequency ............................... 433.92MHz Rechargeable battery pack .............................NiMH Battery Pack 700 mAh Interface .. USB 2.0 connection with USB bus power supply Memory Size ...................................... 4M bit (512kB) Dimensions (W x H x L) ............... 54 x 228 x 25 mm (2-3/16 x 9 x 1ins.) Unit Weight (With Batteries) ................ 210g (0.5lbs) DC 9V 25mm (1ins.) 54mm (2-3/16 ins.) 228mm (9 ins.) 3 $ @ & @ @ & / ( J O E E 1 . 27 ENGLISH RX3001 MAX186mm (7-3/8ins.) MIN105mm (4-3/16ins.) 27mm (1-1/8ins.) MAX190mm (7-1/2ins.) MIN109mm (4-5/16ins.) 102mm (4-1/16ins.) 63.5mm (2-1/2ins.) DC 9V RX3001 RF carrier frequency ............................... 433.92MHz Operating/ learning IR frequency range .....................................................Up to 100kHz IR emitter output ...................................................x6 Dimensions (W x H x L) ... 102 x 63.5 x 27 mm (4-1/16 x 2-1/2 x 1-1/8 ins.) Unit Weight ............................................ 90g (0.2lbs) AC Adapter Power Supply ................. 100 V-240 V AC / 50-60 Hz Power Output .......................................DC9V 800mA 3 $ @ & @ @ & / ( J O E E 1 . 27 ENGLISH RX3001 MAX186mm (7-3/8ins.) MIN105mm (4-3/16ins.) 27mm (1-1/8ins.) MAX190mm (7-1/2ins.) MIN109mm (4-5/16ins.) 102mm (4-1/16ins.) 63.5mm (2-1/2ins.) DC 9V RX3001 RF carrier frequency ............................... 433.92MHz Operating/ learning IR frequency range .....................................................Up to 100kHz IR emitter output ...................................................x6 Dimensions (W x H x L) ... 102 x 63.5 x 27 mm (4-1/16 x 2-1/2 x 1-1/8 ins.) Unit Weight ............................................ 90g (0.2lbs) AC Adapter Power Supply ................. 100 V-240 V AC / 50-60 Hz Power Output .......................................DC9V 800mA 3 $ @ & @ @ & / ( J O E E 1 . 25 ENGLISH 4. STATUS INDICATOR This displays the settings made in the MAIN MENU and the status of the remote device. CHECKING THE STATUS 1. Display the MAIN MENU on the LCD of the RC3001, then press the button next to the lSTATUS z indicator. 2. Pressing the ENTER button cycles through the statuses of each of the items below. - Remaining learning memory - Remaining macro steps - LCD timer setting - Backlight timer setting - Beep setting - Firmware version - Current clock time Either press the ENTER button or wait three seconds so that the LCD returns to the MAIN MENU. 5. RESET If the RC3001 is not operating properly, use the procedure below to perform a reset (restart). Performing a reset does not erase the settings in the RC3001. 1 . Remove the battery case cover. 2 . Use a paper clip or other object to press the reset button in the reset hole as shown in the gure below to reset the RC3001. Note: Perform the reset with the battery pack loaded. 6. PROGRAMMABLE CODES NUMBER OF PROGRAMMABLE CODES This remote control has Flash memory 4M bit (512KB) that enables it to program remote control signals include the learned codes for up to 8000 codes. This number is for Marantz remote control codes. The actual number of codes may be less than 8000 depending on the type of the programmed remote control signals. PROGRAMMABLE CODES This remote control may be unable to learn the codes for some AV equipment due to the code types, system, or other differences. 3 $ @ & @ @ & / ( J O E E 1 .
