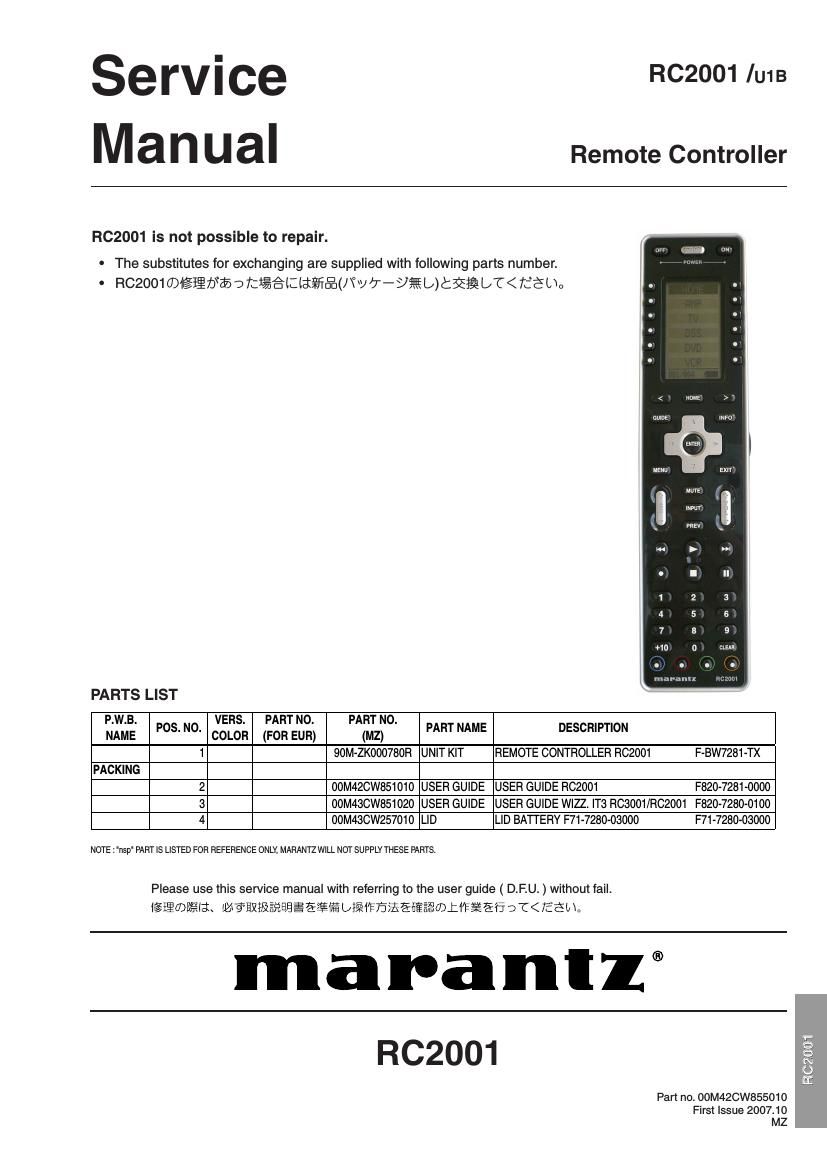

Marantz RC 2001 Service Manual

Page 1

Service Rc2001 /u1B
Man ual Remote Controller

RC2001 is not possible to repair.

- The substitutes for exchanging are supplied with following parts number.
- RCZOO1ODIP/EIEbIZfi)tigélllfifigéuiv7-73fil/kfifiifiLT

man-am" aczmn

PARTS LIST
P.W.B. VERS. PART NO. PART NO.
NAME POS. N0. COLOR (FOR EUR) (MZ) PART NAME DESCRIPTION
1 90M-ZK000780R UNIT KIT REMOTE CONTROLLER RC2001 F-BW7281-TX
PACKING
2 00M4ZCW851010 USER GUIDE USER GUIDE RCZOO1 F820-7281-0000
3 00M43CW851020 USER GUIDE USER GUIDE WIZZ. |T3 RCBOO1/RC2001 F820-7280-0100
4 00M43CW25701O LID LID BATTERY F71-7280-03000 F71 -7280-03000

NOTE lisp PART IS LlSTED FOR REFERENCE ONLY, MARANTZ WlLL NOT SUPPLY THESE PARTS.

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
leeway-.13. flfléfiflmfiéfifiééfilfiéblilffiiiéfififlmtlfifiéfi 3 T< IEéL \o

marantz®

RC2001

Part no. 00M4ZCW85501O
First Issue 2007.10
MZ

Page 2

INSTALLING Wizz.it 3

INS ALLING Wizz.it 3

1, At first, you download the software Wizz.it 3" from the Home Entertainment section of your region in
Marantz Website http://www.marantz.com.
2, Open the downloaded file in your PC and follow the on screen instructions to install the editor.

Notes:
You can install Wizz.it 3 together with other Marantz editors.
The files of Wizz.it 3 are automatically placed in a separate directory.

CUSTOMIZING THE CONFIGURATION FILE

During the installation of the editor, one configuration file was also saved on your PC.

There is one default configuration file which you can start from to create a custom configuration file (CF)

(delaultFlC3001 .mcf).

The default CF is constructed in such a way that they can be easily adjusted to the needs of every

customer.

- This file contains the main Marantz remote control codes for enabling control of Marantz products with
the default settings.

CONNE ONS

CONNECT PC AND REMOTE CONTROLLER

1, The attached USB cable connects to the USB port of remote controller and the USB port of your
PC

2, Open the USB Device wizard menu in your PC automaticalIy.

3, Select the automatic scanning of USB driver or select the location of USB driver.
The location of RCZOO173001 USB driver
C:\Program Files\Marantz\Marantz Wizz.it 3

Note:
The USB driver of RC2001 and RC3001 does not take the certification of Microsoft.
However, you can use it in your PC.
