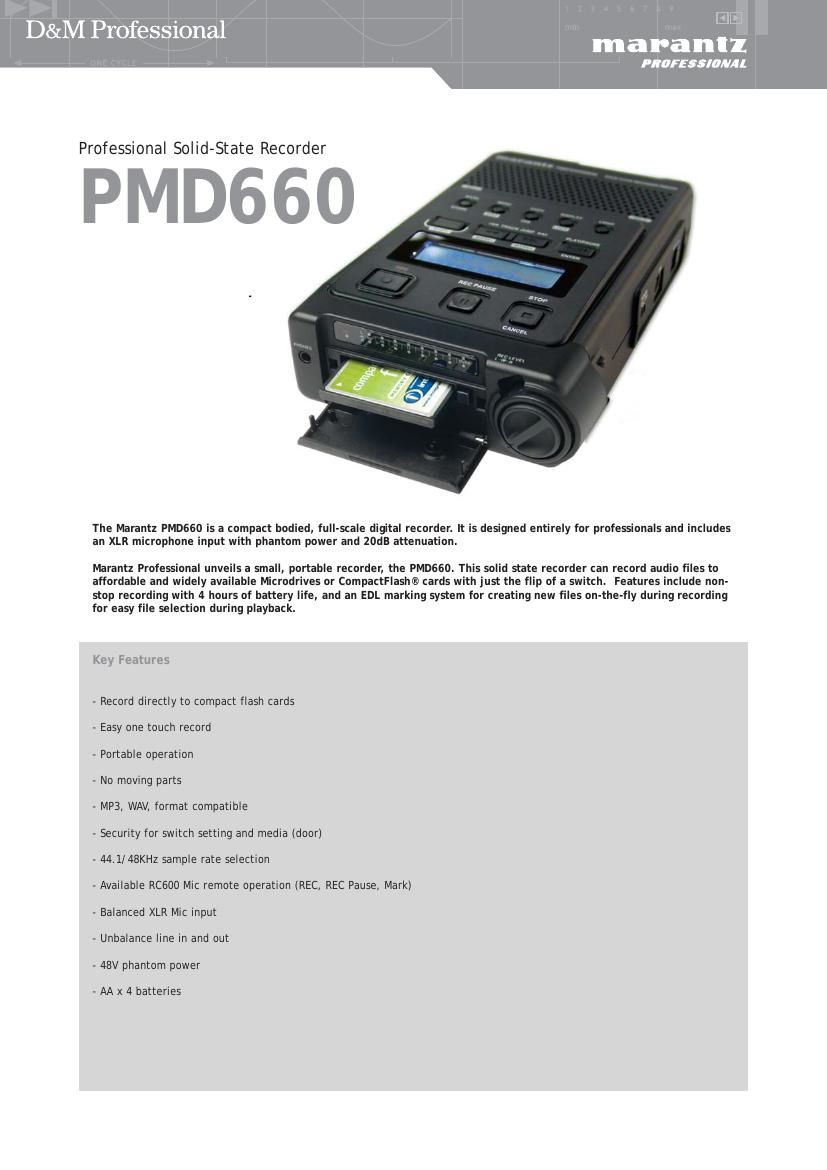

Marantz PMD 660 Brochure
This is the 2 pages manual for Marantz PMD 660 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz PMD 660 Brochure (Ocr-read)
Page 1
PMD660 Specifications General: System Solid State Recorder Number of the channels 2 (stereo), 1 (mono) Usable media CF memory cards, Microdrives Recording and media methods .mp3 MPEG1 Layer III compression PCM 16 bit linear PCM Power Consumption Recording /Playback 4.0W Headphone Output power 15mW/ 32 ohm Speaker Output power 100mW Phantom power +48V, 5mA Dimensions Width 113mm Height 47mm Depth 184mm Weight 0.7Kg Audio: Recording bit rate MP3 stereo 128 kbps MP3 mono 64 kbps Sampling frequency 48, 44.1KHz Frequency response (PCM 44.1KHz) 20,000Hz (-3.0dB) Signal-to-Noise Ratio IEC-A Weighted Line 80dB MIC 60dB Total Harmonic Distortion 0 VU (PCM) Line 0.06% MIC 0.15% Dynamic Range 80dB Inputs/ Outputs MIC IN L/R Type XLR (1: GND 2: HOT 3: COLD) Input sensitivity 1.2mVrms/ 6.5 k ohms LINE IN L/R Type 1/8 jack Input sensitivity 300mVrms/20k ohms LINE OUT L/R Type 1/8 jack Standard level 1.8Vrms/2k ohms D&M Professional Europe Kingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex, UB7 0EH, UK Tel: +44 (0)1753 680023 Fax: +44 (0)1753 686020 www.d-mpro.eu.com
