Marantz PMD 570 Brochure

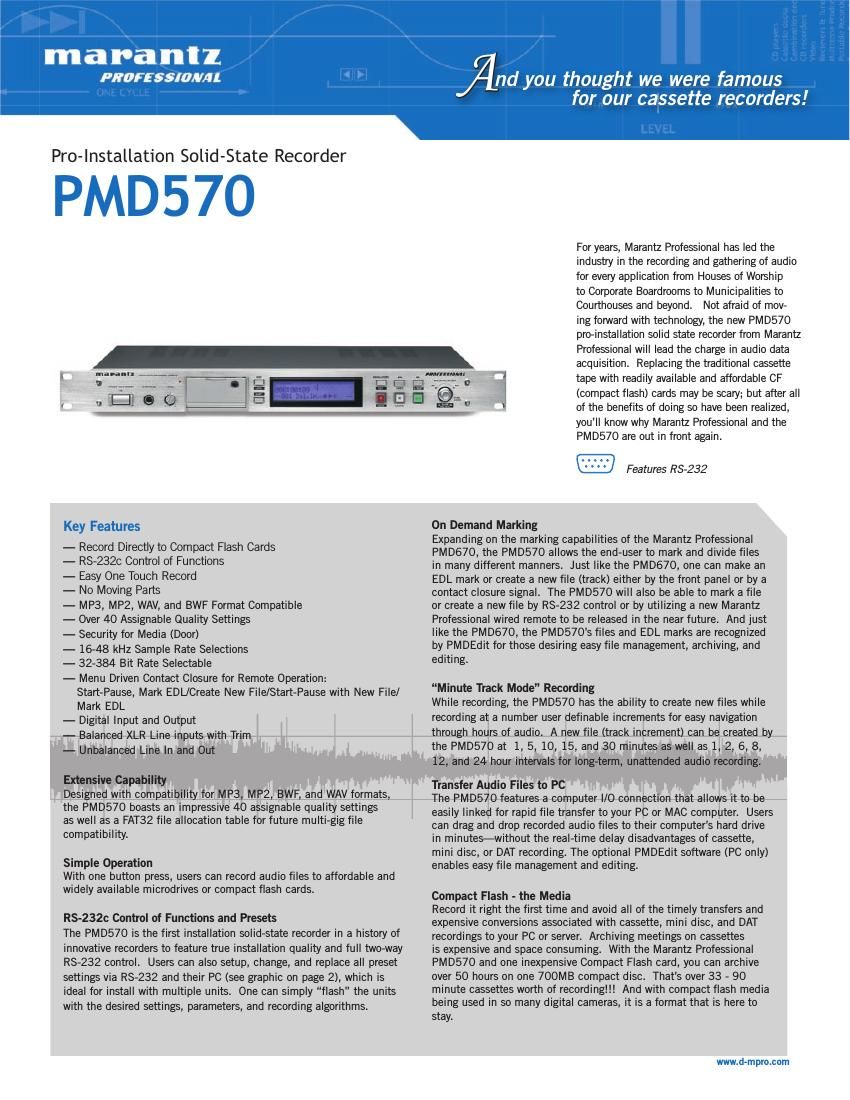

Page 1

D&M Professional 1100 Maplewood Drive Itasca, Illinois 60143Tel: 630.741.0330 Fax: 630.741.0652www.d-mpro.com PLEASE NOTE: Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice. SpecificationsGeneralSystem Solid-state recorderNumber of Channels 2 (stereo), 1 (mono)Usable Media CF memory cards, MicrodrivesRecording and Media Methods.mp2 MPEG1 layer II compression.mp3 MPEG1 layer III compression.mp3 MPEG2 layer III compression* *for all half sample ratesPCM 16-bit linear PCMPower Consumption 5.3 WHeadphone Output Power 20 mW/32 ohmsDimensions (Maximum)Width 483 mmHeight 52 mmDepth 298 mmWeight 3.0 kgAudioRecording Bit rate (Selectable)MP2 Stereo 384, 256, 192, 128, 96, 64 kbps MP2 Mono 192, 128, 96, 64, 48, 32 kbpsMP3 Stereo 320, 256, 160, 128, 80, 64 kbpsMP3 Mono 160, 128, 80, 64, 40, 32 kbpsSampling Frequency Analog 48, 44.1, 32, 24*, 22.05*, 16* kHz *except MP2Digital 48, 44.1 kHzFrequency Response (PCM 44.1 kHz) 20,000 Hz (-0.5 dB)Signal-to-Noise Ratio IEC-A Weighted 91 dBTotal Harmonic Distortion at0 VU (PCM) 0.01%Dynamic Range 94dBInputs/OutputsBalanced LINE IN L/RType XLR (1:GND, 2:HOT, 3:COLD)Input Sensitivity +16dBu/@ 0dBFS (+4dBu/@-12dBFS) /24 k ohms 0dB - +24dB Trim ControlUnbalanced LINE IN L/RType RCA jackInput Sensitivity 500 mVrms/22 k ohmsLINE OUT L/RType RCA jackStandard Level 2 Vrms max./300 ohmsDIGITAL IN/OUTType RCA jackImpedance 75 ohmsStandard Level 0.5 Vp-pSampling Frequency 44.1/48 kHzFormat SPDIF (IEC-958 type II) PMD570 RS-232 Application/Preset screen for PC programming PMDEdit for PC
