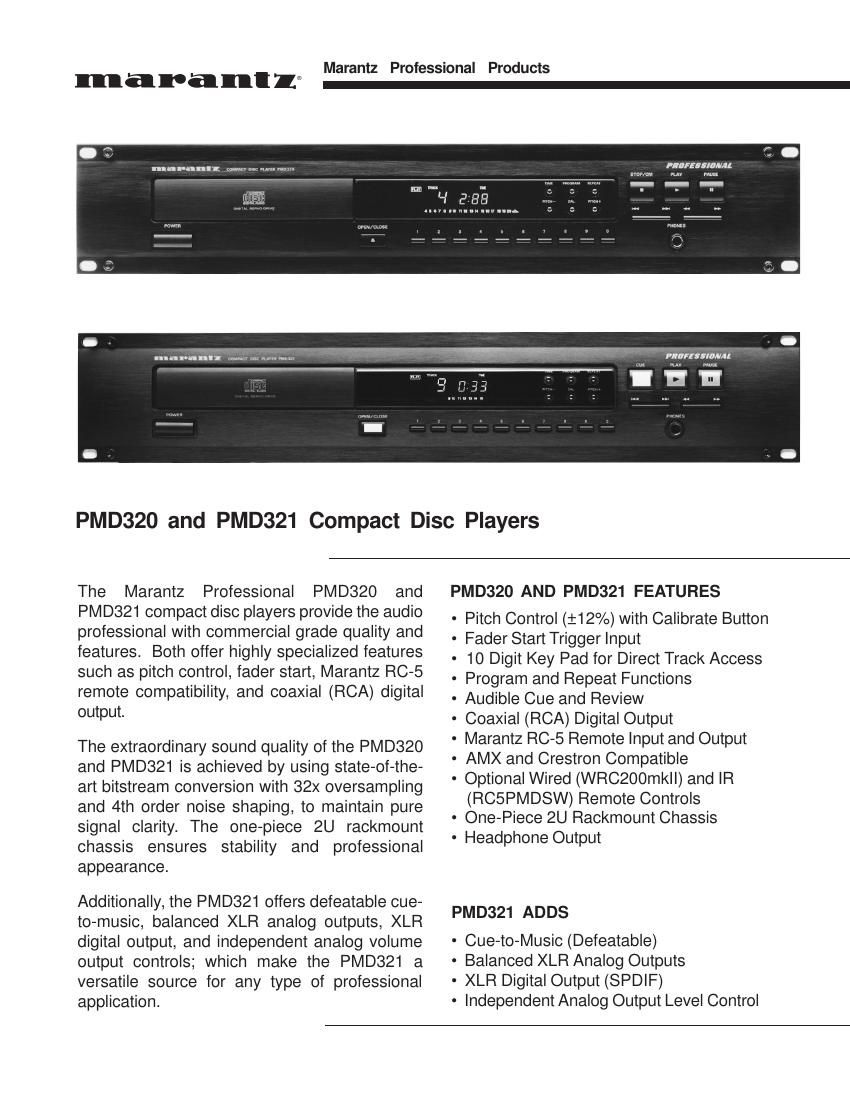

Marantz PMD 321 Brochure

Page 1

OVERALL Frequency response..............................5-20kHz (±0.5dB) Signal to Noise..................................................> 104dB Channel Separation............................................> 100dB Dynamic Range...................................................> 96dB THD................................................................< 0.004% Wow and Flutter............................... Below Measurable Limits D-A Conversion.....................................1-bit Sigma-Delta Oversampling............................................................32x Noise Shaping..................................................4th Order RCA Analog Output Level.....................2VRMS / 200 ohm XLR Analog Output Level...................1.2VRMS / 100 ohm XLR Digital Output Level........................3.5Vp-p / 110 ohm Coaxial (RCA) Digital Output Level..........0.5Vp-p / 75 ohm Digital Output Format...........................SPDIF (IEC-958-II) Power Requirements.................................120VAC, 60Hz Power Consumption................................................22W DIMENSIONS Panel Height (2U).....................................3.5" (89mm) Panel Width..............................................18.9" (480mm) Depth.......................................................11.5" (293mm) Weight.....................................................8.6lbs. (3.9kg) Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice. Superscope Technologies, Inc. 2640 White Oak Circle Aurora, Illinois 60504Telephone: (630) 820-4800 Fax: (630) 820-8103 Recording/Duplication Studios, Broadcast and Mastering Facilities: Exceptional sound quality and a digital output make the PMD320 and PMD321 extremely versitile CD sources. The PMD321 gives added advantage by having XLR outputs for analog and digital and the ability to adjust the analog output level. Any type of professional environment can benefit by the extraordinary fit and finish of the PMD320 and PMD321. DJs: The PMD320 and PMD321 offer the professional DJ all the features needed to ensure a smooth and impressive performance: fader start input, pitch control, cue-to-music, direct track access, anti-skip mechanism, XLR connections, and remote control capability. Houses of Worship: The pitch of a soundtrack can be altered by ±12% (in increments of 0.1%) to accomodate a singer or choir's vocal range. The 10 digit keypad insures quick and direct track access of up to 99 tracks. A/V Rental: The PMD320 and PMD321 provide exceptional quality, value, and versatility. Add their user-friendly operation, and they become ideal for any professional rental scenario. Dance and Aerobics Studios: Pitch control alters the tempo of the music to suit a specific workout or choreography. Additionally, the program function makes it easy to create a custom track sequence. Corporate Installations: Both models offer Marantz (RC- 5), AMX, and Crestron remote control compatibility, while combining unmatched value and overall quality. APPLICATIONSTECHNICAL SPECIFICATIONS
