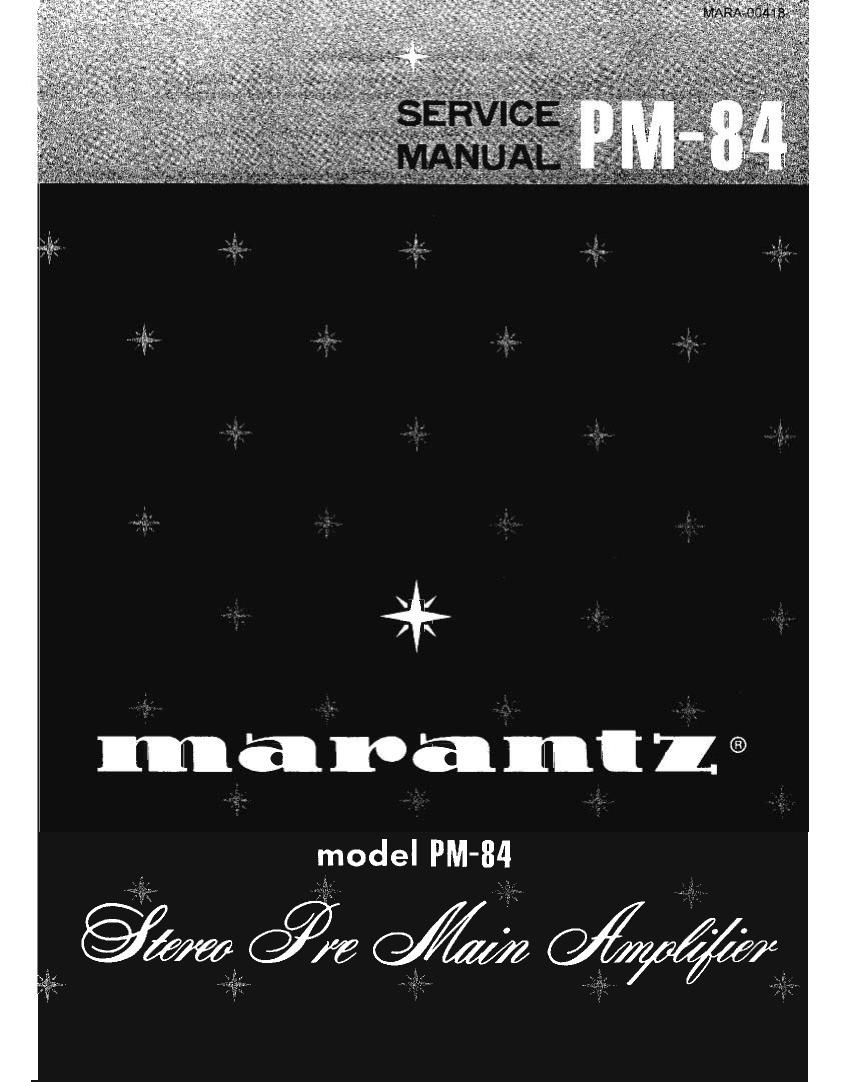

Page 1

w,- 1..

-44.

Page 2

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.

Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for
which it is famous,

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS:

Parts can be ordered either by mail or by telex. In both cases, MARANTZ part number has to be specified. If you order by
mail, fulfil MARANTZ order forms.

MARANTZ SA. SUPERSCOPE NATIONAL PARTS DEPARTMENT
EUROPEAN PARTS DEPARTMENT 20525 Nordhoff Street
2, Avenue Leopold III Chatsworth, California 91311
87120 PERONNES-lez-BINCHE Phone: 1-800423-5108
BELGIUM Phone: 1413-9528-9333

TWX: 57589 SEPLT B

The following information must be supplied to eliminate delays in processing your order:

Complete address

Complete part numbers and quantities required

. Description of parts

Model number for which part is required

Way of shipment

Signature: any order form or telex must be signed otherwise such part order will be considered as null and void.

95".wa

PARTS ORDERING:
Parts may be ordered from the following addresses:

EUROPE

MARANTZ S.A. MARANTZ SA. MARANTZ AUDIO U.K. LTD MARANTZ AUSTRIA Ge.M.B.H. MARANTZ BELGIUM
European Parts Department 326 Avenue Louise Ste 32 Unit 15.16 25 Franz Lisztgasse 45 Rue Auguste Van Zande
2, Avenue Leopold lll 1050 Bruxelles Saxon Way industrial Estate 2350 Perchtoldsdorl 1080 Brussels
3-7120 Peronnes-lez-Binche Belgium Moor Lane Austria Belgium
Belgium Harmondsworth U87 OLW

Great Efilalll
MARANTZ DENMARK MARANTZ FRANCE MARANTZ GERMANV MARANTZ ITALIANA S.p.A. MABANTZ NEDERLAND BM
Bregnorodvei 1321: 4 Rue Bernard F*alissy G.M.B.H. Via Monte Napoieone 10 Nagenmacxersweg 3
3460 Birkerpd 92600 Asnieres Max Plancksrrassa 22 2012i Miami) 3449 HV. Woerden
Denmark France 6072 Dreieich l italv Netherlands

Germany

AUSTRALIA U.S.A. JAPAN

MARANTZ SVENSKA A.B. MARANTZ AUSTRALIA PTV MARANTZ COMPANY, INC. MARANTZ JAPAN. INC.
Svarrviksvégen 56 19 Chard Roao National Servrce Dept. 35-1, 7-chome. Segamiono
Traneberg Brookvale, NSW 2100 PO, Box 677 Sagamiharashi. Kanagam
Biomma Australia Chatsworth, CA Sl3il Japan
Sweden USA

All of the above locations are fully equipped to take care of your total service needs. Because various countries have differing
configuration requirements, it is necessary that you contact the service facility in your particular country. In the event that
there is no service location listed for your country, please, contact the nearest facility for the necessary assistance.

In case of difficulties, do not hesitate to contact the Technical
Department at abovementioned address.

NOTE-FOR U.S.A. ONLY

Parts for your MARANTZ stereo are generally available within 72 hours throughout the nation via a toll-free line to our
National Parts Depot in California, The sales professionals who take your call immediately refer to their own desk top
computer terminal and can quickly determine the availability and price information you require, If, for some reason, your
order should exceed our available stock, we usually can instantly provide an alternate replacement part or current delivery
information. When the order is placed and confirmed, the computer simultaneously generates "hard copy orders at'the
distribution center. As hard copies come directly from the computer to the national parts depot, your requested stock is
assembled and prepared for shipment and placed on the first available carrier for delivery to you.

.Phone orders will eliminate mail delays, and we encourage the use of this method. If you orderby mail, use MARANTZ
parts order forms which are available from SUPERSCOPE NATIONAL PARTS DEPARTMENT.

maranlle
