Marantz PM 66 Service Manual
This is the 15 pages manual for Marantz PM 66 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz PM 66 Service Manual (Ocr-read)
Page 1

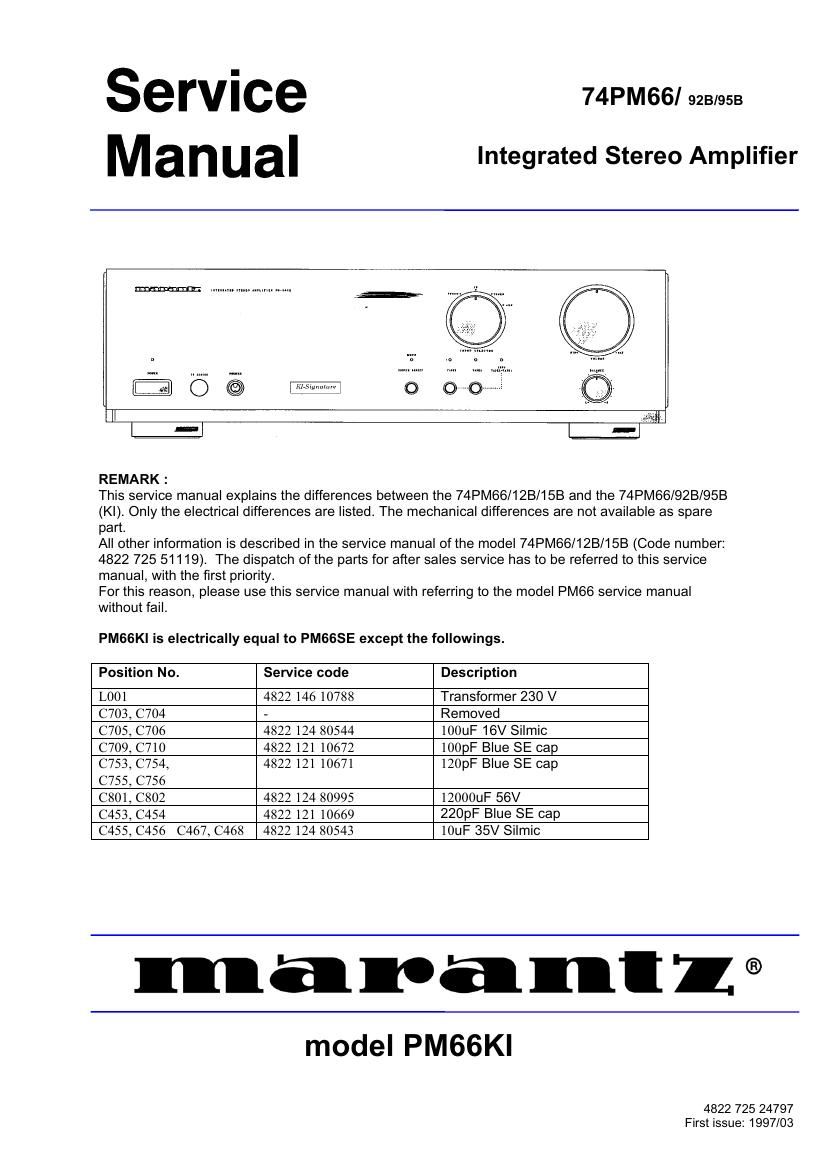

Integrated Stereo Amplifie r REMARK : 74PM66/ 92B/95B This service manual explains the differences between the 74PM66/12B/15B and the 74PM66/92B/95B (KI). Only the electrical differenc es are listed. The mechanical differ ences are not available as spare part. All other information is described in the servic e manual of the model 74PM66/12B/15B (Code number: 4822 725 51119). The dispatch of the parts for after sa les service has to be referred to this service manual, with the first priority. For this reason, please use this service manual with referring to the model PM66 service manual without fail. PM66KI is electrically equal to PM66SE except the follow ings. Position No. Serv ice code Description L001 4822 146 10788 Transformer 230 V C703, C 704 - Remov ed C705, C 706 4822 124 80544 100 uF 16V Silmic C709, C 710 4822 121 10672 100 pF Blue SE cap C753, C 754, C755, C 756 4822 121 10671 120 pF Blue SE cap C801, C 802 4822 124 80995 12000 uF 56V C453, C 454 4822 121 10669 220pF Blue SE cap C455, C 456 C467, C 468 4822 124 80543 10 uF 35V Silmic model PM66KI 4822 725 24797 First issue: 1997/03
Page 2
Integrated Stereo Amplifie r REMARK : 74PM66/ 92B/95B This service manual explains the differences between the 74PM66/12B/15B and the 74PM66/92B/95B (KI). Only the electrical differenc es are listed. The mechanical differ ences are not available as spare part. All other information is described in the servic e manual of the model 74PM66/12B/15B (Code number: 4822 725 51119). The dispatch of the parts for after sa les service has to be referred to this service manual, with the first priority. For this reason, please use this service manual with referring to the model PM66 service manual without fail. PM66KI is electrically equal to PM66SE except the follow ings. Position No. Serv ice code Description L001 4822 146 10788 Transformer 230 V C703, C 704 - Remov ed C705, C 706 4822 124 80544 100 uF 16V Silmic C709, C 710 4822 121 10672 100 pF Blue SE cap C753, C 754, C755, C 756 4822 121 10671 120 pF Blue SE cap C801, C 802 4822 124 80995 12000 uF 56V C453, C 454 4822 121 10669 220pF Blue SE cap C455, C 456 C467, C 468 4822 124 80543 10 uF 35V Silmic model PM66KI 4822 725 24797 First issue: 1997/03
