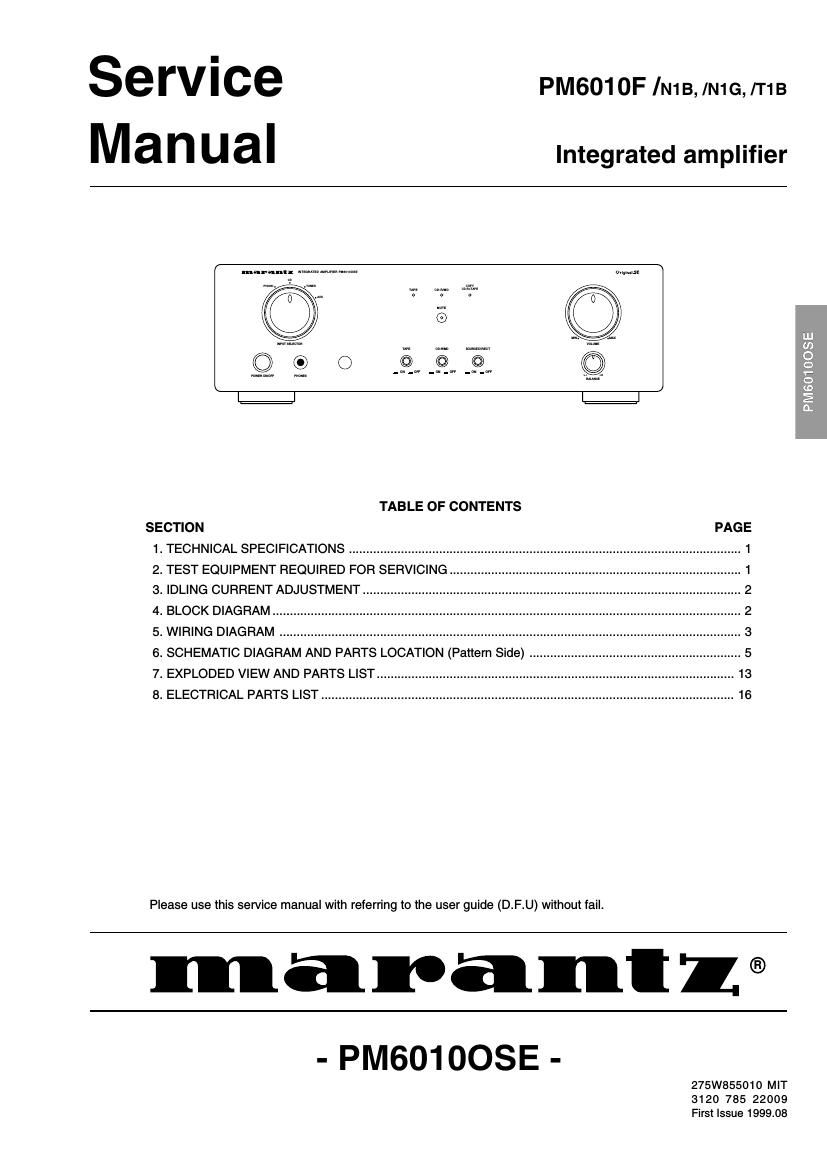

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990729MIT USA MARANTZ AMERICA, INCMARANTZ AMERICA, INC.440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC.35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 748 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA JAMO AUSTRALIA PTY LTD1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD.6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD.NO. 102 JALAN SS 21/35, DAMANSARA UTAMA, 47400 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 3 - 7184666 FAX : +60 3 - 7173828 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD.ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTDWO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213
Page 2
1 1. TECHNICAL SPECIFICATIONS Power output RMS 8 Ohms ........................................................................................................................................................... 50 W DIN 8 Ohms ............................................................................................................................................................ 55 W IHF dynamic power 8 Ohms ................................................................................................................................................................... 80 W THD at 8 Ohms rated output .............................................................................................................................. 0.008 % Intermodulation distortion .................................................................................................................................. 0.008 % Damping factor .......................................................................................................................................................... 100 Magnetic cartridge input Input sensitivity inpedance .................................................................................................................... 2.5 mV/47 kOhm Accuracy of frequency response to IEC RIAA ...................................................................................................... 0.5 dB Signal to noise ratio (IHF A weighted) ................................................................................................................... 87 dB Tuner/CD/Aux/Tape inputs Input sensitivity impedance .................................................................................................................. 150 mV/33 kOhm Signal to noise ratio (A weighted) .......................................................................................................................... 97 dB Frequency response (-3 dB limits) .............................................................................................................. 5 Hz -70 kHz Channel separation (1 kHz/10 kHz) .................................................................................................................. 85/65 dB General Power Requirements ............................................................................................................................ 230 V AC, 50 Hz Dimensions (MAX) Width ............................................................................................................................................................. 440 mm Height ............................................................................................................................................................ 138 mm Depth ............................................................................................................................................................ 338 mm Weight Unit alone ......................................................................................................................................................... 6.7 kg Specifications subject to change without prior notice. 2. TEST EQUIPMENT REQUIRED FOR SERVICING Item Use Distortion Analyzer Distortion measurements Audio Oscillator Sinewave and squarewave signal source AC VTVM Voltage measurements (AC) Oscilloscope Waveform analysis and trouble shooting and ASO alignment DC VTVM Voltage measurements (DC) AC Wattmeter Monitors primary power to amplifier Line Voltmeter Monitors potential of primary power to amplifier Variable Autotransformer Adjusts level of primary power to amplifier Circuit Tester Trouble shooting Shor ting Plug Shor ts amplifier input to eliminate noise pickup
Page 12
17 POS. NOVERS. COLORPART NO. (FOR PCS)DESCRIPTION (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, **:EUROPE) POS. NOVERS. COLORPART NO. (FOR PCS)DESCRIPTION PG71-MASTER VOLUME CIRCUIT BOARD CG71 5322 124 2173110µF 20% 50V CG72 5322 124 2173110µF 20% 50V RG71 4822 101 3088550K MOTOR VARIABLE PJ01-TAPE IN OUT CIRCUIT BOARD CJ01 4822 122 3004310nF 80% 63V CJ02 4822 122 3004310nF 80% 63V CJ03 4822 122 3004310nF 80% 63V CJ04 4822 122 3004310nF 80% 63V CJ05 4822 122 33642150pF 5% NPO 50V CJ06 4822 122 33642150pF 5% NPO 50V CJ07 4822 122 33642150pF 5% NPO 50V CJ08 4822 122 33642150pF 5% NPO 50V CJ09 4822 122 33642150pF 5% NPO 50V CJ10 4822 122 33642150pF 5% NPO 50V CJ11 4822 122 33642150pF 5% NPO 50V CJ12 4822 122 33642150pF 5% NPO 50V CU91 4822 122 406170.1µF 50V JJ01 4822 267 31452TERMINAL RCA 4P JACK JJ02 4822 267 31452TERMINAL RCA 4P JACK PS01-TAPE MONI. PHONE OUT SPK. SW. CIRCUIT BOARD PS01-CAPACITORS C851 4822 122 3004310nF 80% 63V C852 4822 122 3004310nF 80% 63V C853 4822 124 12432100µF 20% 50V C854 4822 124 12432100µF 20% 50V C855 4822 124 9036222µF 50V C856 4822 124 9036222µF 50V C857 4822 122 3004310nF 80% 63V C858 4822 122 3004310nF 80% 63V CW01 4822 121 4185710nF 5% 250V CW02 4822 121 4185710nF 5% 250V PS01-RESISTORS R851 4822 117 101581R 5% 0.25W R852 4822 116 6031310R 0.5W R853 4822 116 6031310R 0.5W R854 4822 050 11004100K00 1% 0.4W R855 4822 050 1100310K00 1% 0.4W RG51 4822 100 30138100K x 2 VARIABLE RW01 4822 116 60455270R 5% 2W PS01-SEMICONDUCTORS D851 4822 130 32508DIODE DSF10CD852 4822 130 32508DIODE DSF10CD853 4822 130 32508DIODE DSF10C D854 4822 130 32508DIODE DSF10C D855 3120 004 56210DIODE 1SS131-77 DN51 3120 004 56210DIODE 1SS131-77 Q851 4822 209 71903IC NJM78M05A REGULATOR Q852 4822 130 42372TRS. 2SA1048Y PS01-MISCELLANEOUS JW01 BLACK 4822 267 31479SOCKET HEADPHONE JW01 GOLD 8239 210 96380SOCKET HEADPHONE LN51 4822 280 20501RELAY MR62-24SR SS01 3120 208 40080SWITCH PUSH PU01-µ-COM. INDICATOR CIRCUIT BOARD PU01-CAPACITORS CU01 4822 122 406170.1µF 50V CU02 4822 122 3004310nF 80% 63V CU03 5322 124 2173110µF 20% 50V CU04 5322 124 2173110µF 20% 50V CU05 8239 210 94060220µF 10V RA2 S10V220U PM20A CU06 4822 122 3004310nF 80% 63V CU07 8239 210 94060220µF 10V RA2 S10V220U PM20A CU08 5322 124 2173110µF 20% 50V CU09 4822 122 406170.1µF 50V CU10 8239 210 94060220µF 10V RA2 S10V220U PM20A CY01 2020 012 90353100µF 6.3V S6.3V100U PM20T PU01-RESISTORS RU01 4822 050 11004100K00 1% 0.4W RU02 4822 050 1150315K00 1% 0.4W RU03 4822 050 1150315K00 1% 0.4W RU04 4822 050 147024K70 1% 0.4W RU05 4822 050 122022K20 1% 0.4W RU06 4822 050 12204220K00 1% 0.4W RU07 4822 050 11001100R00 1% 0.4W RU08 4822 050 1100310K00 1% 0.4W RU09 4822 117 12425100R 5% 0.25W RU10 4822 050 1100310K00 1% 0.4W RU11 4822 050 1100310K00 1% 0.4W RU12 4822 050 1470347K00 1% 0.4W RU13 4822 050 1150315K00 1% 0.4W RU14 4822 050 1150315K00 1% 0.4W RU15 4822 117 12425100R 5% 0.25W RU16 4822 050 1470947R00 1% 0.4W RU17 4822 050 1100310K00 1% 0.4W RU18 4822 050 1100310K00 1% 0.4W RU19 4822 050 1100310K00 1% 0.4W RU20 4822 050 1100310K00 1% 0.4W RU21 4822 050 1100310K00 1% 0.4W RU22 4822 050 1100310K00 1% 0.4W RU23 4822 050 1100310K00 1% 0.4W RU24 4822 050 1100310K00 1% 0.4W RU25 4822 050 13301330R00 1% 0.4W RU26 4822 050 12204220K00 1% 0.4W RU27 4822 116 603092R2 0.25W RU28 4822 050 1150315K00 1% 0.4W RU29 4822 050 122022K20 1% 0.4W RY01 4822 050 13301330R00 1% 0.4W RY03 4822 050 13301330R00 1% 0.4W RY04 4822 050 13301330R00 1% 0.4W RY05 4822 050 13301330R00 1% 0.4W RY06 4822 116 60494330R00 1W RY07 4822 050 1100310K00 1% 0.4W PU01-SEMICONDUCTORS DU01 3120 004 56210DIODE 1SS131-77 DU02 4822 130 32508DIODE DSF10C DU04 4822 130 80326LED GL3HD8 DY01 4822 130 80326LED GL3HD8 DY03 4822 130 80326LED GL3HD8 DY04 4822 130 80326LED GL3HD8 DY05 4822 130 80326LED GL3HD8 DY06 4822 130 80317ZENER DIODE MTZJ5.1B QU01 4822 209 90571µ-COM. TMP47C200BN-H347 QU02 4822 130 60904TRS. 2SC2458Y QU03 4822 130 60904TRS. 2SC2458Y QU04 4822 130 60904TRS. 2SC2458Y QU05 4822 130 10165IR RECEIVER GP1U28XP QU06 4822 130 42372TRS. 2SA1048Y QU07 4822 130 60904TRS. 2SC2458Y QU08 4822 130 42372TRS. 2SA1048Y
