Extracted text from Marantz PM 6010 Owners Manual (Ocr-read)
Page 1

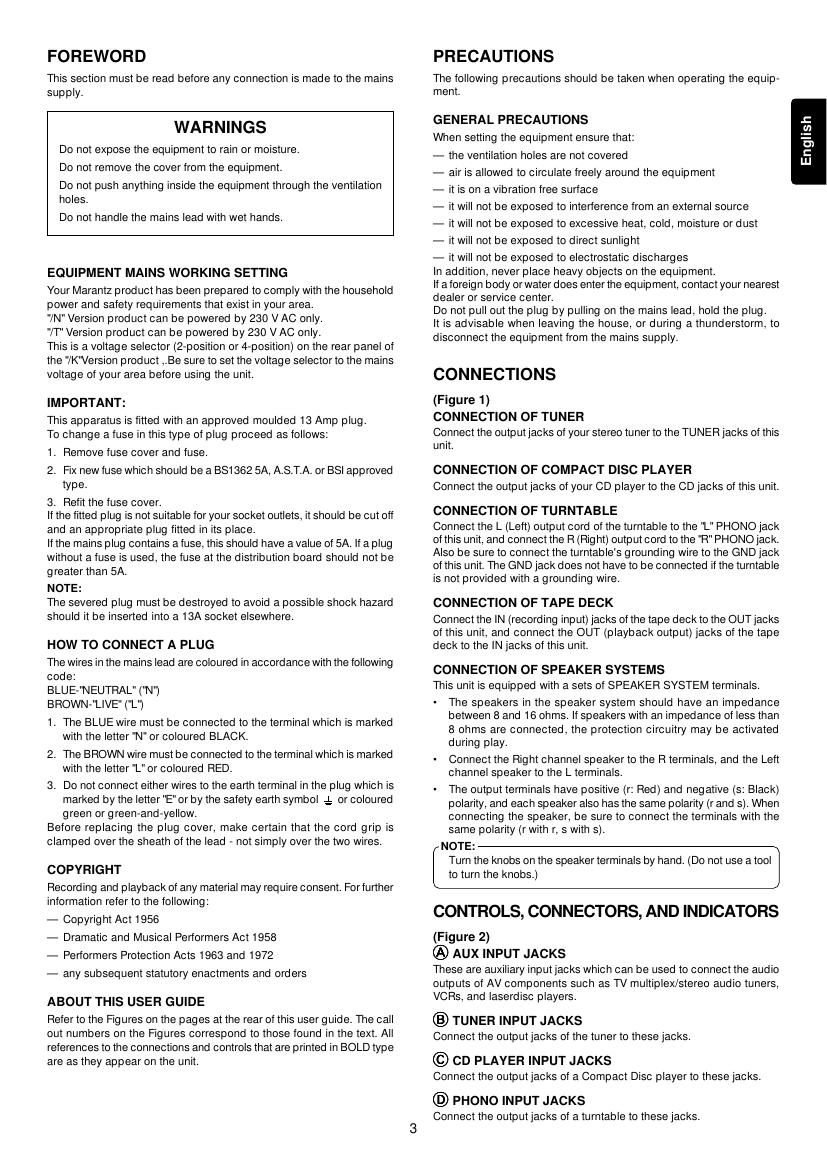

4 English E EE E E GND (GROUND) TERMINAL Connect the grounding wire from the turntable to this terminal. F FF F F TAPE CD-R/MD IN/OUT JACKS Connect the play (output) jacks and record (input) jacks of tape decks to these jacks. Up to three tape decks can be connected. NOTE: When a surround processor or graphic equalizer is used, it must be connected to the TAPE jacks. G GG G G SPEAKER SYSTEMS Connect your speaker system to these terminals. H HH H H REMOTE CONTROL (BUS) TERMINALS Another item of audio equipment with a remote control (bus) terminal can be connected to these terminals by using a special-purpose cable. The bus OUT terminal is used to send signals to another item of equipment. The bus IN terminal is used to receive signals from another item of equipment. I II I I POWER CORD Connect to a household power outlet. q qq q q POWER SWITCH Pressing once switches the power ON, and pressing again switches it OFF. The POWER indicator lights when the POWER switch is ON, and go out when the POWER switch is OFF. w ww w w INPUT SELECTOR Selects the program source to be recorded or played from the PHONO, CD, TUNER, AUX. e ee e e VOLUME CONTROL Adjusts the volume level. Turn the knob clockwise to increase the volume. You can also operate the amplifier with a remote control unit. r rr r r BALANCE CONTROL Turn the knob to correct an unbalanced program source such as stereo broadcast or to vary the output level of the left or right channel. Note that, if the BALANCE control is turned fully in one direction, the sound will not be heard from the speaker on the other side. t tt t t TAPE CD-R/MD SWITCHES Press one of these switches to monitor the playback sound of a tape deck connected to the rear panel of this unit. When the CD-R/MD switch is pressed, this unit automatically enters the tape dubbing mode, the COPY CD-R ® TAPE indicator lights, and the playback signal of CD-R or MD can be copied onto tape deck. Set both of the switches to OFF when the CD-R or MD, tape decks are not to be played. For details, refer to "TAPE DECK OPERATION". y yy y y SOURCE DIRECT SWITCH When this switch is pressed, the audio signal is supplied directly to the volume control circuitry (the signal is directed through the minimum required path to improve the reproduction of high-quality sources). NOTE: When this switch is ON, the settings of the tape monitor switches, and balance control are ignored. While this switch is depressed, recording, playback, or dubbing of tapes cannot be carried out even when a tape monitor switch is pressed. u uu u u IR SENSOR The remote sensor receives the infrared commands from the remote control unit. When an infrared signal is received from the remote control unit. The remote control unit must always be pointed directly at the remote sensor. i ii i i MUTING INDICATOR Light up when the MUTING button in the remote control unit is pressed. NOTE: Be sure to check the VOLUME control setting before pressing this switch to cancel muting, If the muting is canceled while the volume setting is high, the speakers could be damaged. o oo o o PHONES JACK Insert the standard phone plug of the headphones into this jack. OPERATION PROCEDURES TO PLAY AN ANALOG RECORD 1.Set the INPUT SELECTOR switch to PHONO. 2.Play a record on the turntable. 3.Adjust the volume with the VOLUME control. NOTES: ¥ Set the VOLUME control to the minimum position before placing the stylus on the record or before replacing the cartridge. ¥ Do not apply shock or vibration to the turntable during play, as this may cause the stylus to jump and the analog record to be damaged. ¥ If the turntable is installed too close to the speakers, the volume may not be able to be increased to a high level due to howling. ¥ Do not switch the power OFF while the stylus is on the record surface. TO LISTEN TO FM/AM BROADCASTS 1.Set the INPUT SELECTOR switch to TUNER. 2.Tune in the desired station on the tuner. 3.Adjust the volume with the VOLUME control. TO PLAY A COMPACT DISC 1.Set the INPUT SELECTOR switch to CD. 2.Play a CD on the CD player. 3.Adjust the volume with the VOLUME control. TO PLAY A COMPONENT CONNECTED TO AUX JACKS The component connected to the AUX jacks on the rear panel can be played as follows. 1.Set the INPUT SELECTOR switch to AUX. 2.Play the component connected to the selected input. 3.Adjust the volume with the VOLUME control. TAPE CD-R/MD SOURCE DIRECT INTEGRATED AMPLIFIER PM6010OSE TAPE CD-R/MD MUTE MIN MAX LR COPY CD-R>TAPE CD PHONO TUNER AUX INPUT SELECTORVOLUME BALANCE POWER ON/OFF PHONES ONOFF ONOFF ONOFF 2 Operate each equipment to start play. 1 3
Page 2
5 English TAPE DECK (CD-R/MD) OPERATION TAPE (CD-R/MD) PLAYBACK 1.Press the CD-R/MD or TAPE switch A. The indicator above the switch will light up. 2.Play a prerecorded tape on the tape deck (or CD-R). 3.Adjust the volume with the VOLUME control B. NOTES: ¥ Set the CD-R/MD TAPE switches to OFF when a tape is not to be played. ¥ The tape can be played regardless of the setting of the INPUT SELECTOR C. TAPE RECORDING The playback sound of a program source component, such as a turntable, a tuner, or a CD player, can be recorded on tape as follows. 1.Set the INPUT SELECTOR switch C to select the program source to be recorded. 2.Play the program source. 3.Operate the tape deck (or CD-R) to record the playback sound on tape. NOTE: Playback and recording onto tape decks is not possible while the SOURCE DIRECT switch is pressed in. TAPE MONITORING When a three-head tape deck is connected to the TAPE jacks, the sound recorded on tape can be monitored through the speakers by pressing the TAPE monitor switch A. In this case, the tape deck must be connected to this unit via both recording and playback connection cords. NOTE: When the tape deck is a two-head system, the recorded sound cannot be monitored even when the CD-R/MD TAPE switch A is pressed. In this case, however, the sound of the program source being recorded can be monitored. When the program source selected by the INPUT SELECTOR is to be recorded onto the tape deck connected to the TAPE jacks, do not press the CD-R/MD switch. If the CD-R/MD switch is pressed, the unit enters CD-R ® TAPE copy mode. DUBBING OF PRERECORDED TAPES If you connect two tape decks to this unit, the contents of a prerecorded tape can be copied onto another tape. For example, you can record only the desired tunes on a tape containing an FM radio program onto another tape, or you can copy the contents of an open-reel tape onto a cassette tape. When the CD-R/MD switch is pressed, this unit automatically enter the CD-R/MD (TAPE 2) ® TAPE (TAPE 1) copy mode, and the playback signal of tape deck 2 can be copied onto tape deck 1. NOTES: ¥ When both of the CD-R/MD and TAPE switches are pressed in. The sound recorded from CD-R/MD to tape deck can be monitored through the speakers. ¥ During dubbing, the program source selected by the INPUT SELEC- TOR switch cannot be listened to.¥ When the program source selected by the INPUT SELECTOR switch is recorded simultaneously by the CD-R (or MD) and tape deck, the sound recorded by CD-R or MD cannot be monitored. If the CD-R/MD switch is pressed, the signal of CD-R/MD will be output to tape deck. ¥ When a component such as a surround processor or graphic equalizer is to be used, connect the component to the TAPE IN/OUT jacks and press the TAPE switch. TAPE CD-R/MD SOURCE D I R E C T INTEGRATED AMPLIFIER PM6010OSE TAPE CD-R/MD MUTE MIN MAX LR CD PHONO TUNER AUX INPUT SELECTORVOLUME BALANCE POWER ON/OFF PHONES ONOFF ONOFF ONOFF C B Control used for operating the tape deck. A COPY CD-R>TAPE Switch Setting Indicators Speaker Output CD-R/MD OUT Jack Output TAPE OUT Jack OutputCD-R/MD TAPE TAPE CD-R/MD CD-R/MD Source selected by INPUT SELECTOR Source selected by INPUT SELECTORSource selected by INPUT SELECTORSource selected by INPUT SELECTORSource selected by INPUT SELECTOR Source selected by INPUT SELECTORSource selected by INPUT SELECTOR CD-R/MD CD-R/MD OFF TAPE COPY CD-R/MD TAPE COPY CD-R/MD TAPE COPY CD-R/MD TAPE COPY TAPE OFF CD-R/MD ON TAPE OFF CD-R/MD OFF TAPE ON CD-R/MD ON TAPE ON TAPE MONITOR SWITCH OPERATION CHART
