Extracted text from Marantz PM 6010 OSE Service Manual (Ocr-read)

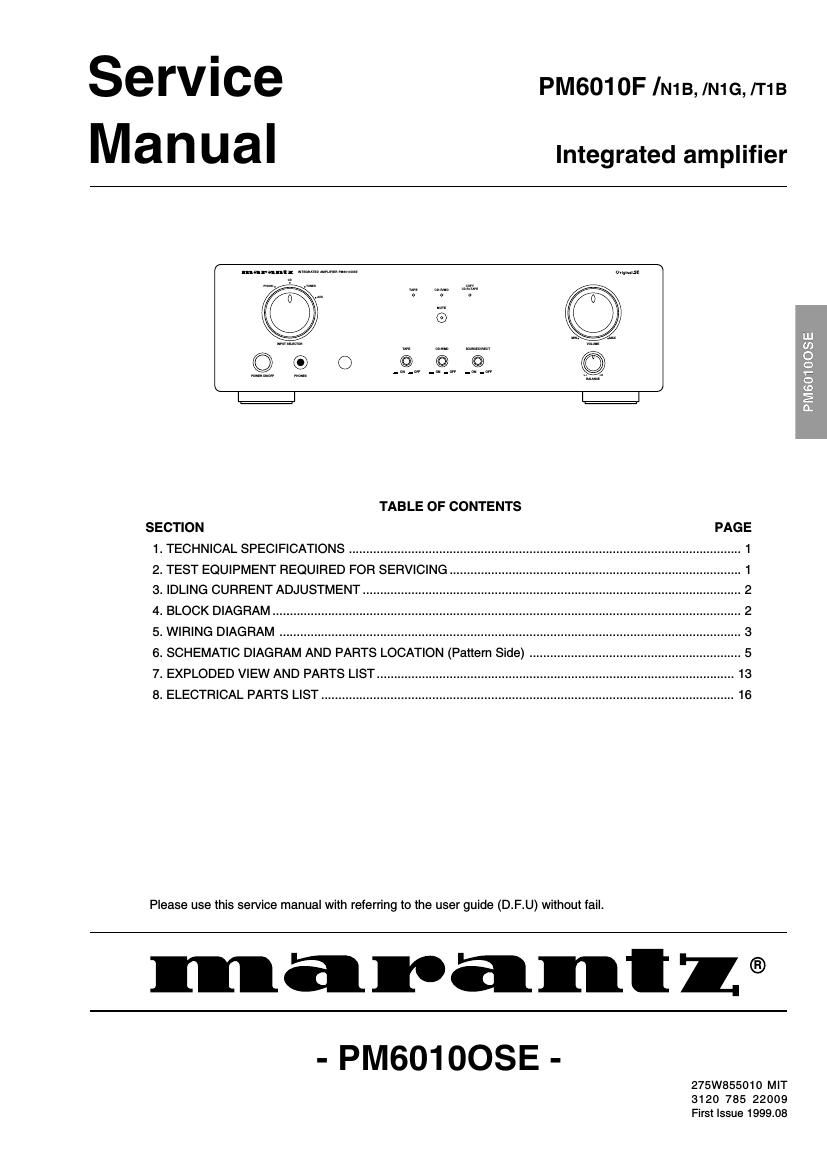

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990729MIT USA MARANTZ AMERICA, INCMARANTZ AMERICA, INC.440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC.35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 748 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA JAMO AUSTRALIA PTY LTD1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD.6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD.NO. 102 JALAN SS 21/35, DAMANSARA UTAMA, 47400 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 3 - 7184666 FAX : +60 3 - 7173828 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD.ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTDWO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213
Page 2
1 1. TECHNICAL SPECIFICATIONS Power output RMS 8 Ohms ........................................................................................................................................................... 50 W DIN 8 Ohms ............................................................................................................................................................ 55 W IHF dynamic power 8 Ohms ................................................................................................................................................................... 80 W THD at 8 Ohms rated output .............................................................................................................................. 0.008 % Intermodulation distortion .................................................................................................................................. 0.008 % Damping factor .......................................................................................................................................................... 100 Magnetic cartridge input Input sensitivity inpedance .................................................................................................................... 2.5 mV/47 kOhm Accuracy of frequency response to IEC RIAA ...................................................................................................... 0.5 dB Signal to noise ratio (IHF A weighted) ................................................................................................................... 87 dB Tuner/CD/Aux/Tape inputs Input sensitivity impedance .................................................................................................................. 150 mV/33 kOhm Signal to noise ratio (A weighted) .......................................................................................................................... 97 dB Frequency response (-3 dB limits) .............................................................................................................. 5 Hz -70 kHz Channel separation (1 kHz/10 kHz) .................................................................................................................. 85/65 dB General Power Requirements ............................................................................................................................ 230 V AC, 50 Hz Dimensions (MAX) Width ............................................................................................................................................................. 440 mm Height ............................................................................................................................................................ 138 mm Depth ............................................................................................................................................................ 338 mm Weight Unit alone ......................................................................................................................................................... 6.7 kg Specifications subject to change without prior notice. 2. TEST EQUIPMENT REQUIRED FOR SERVICING Item Use Distortion Analyzer Distortion measurements Audio Oscillator Sinewave and squarewave signal source AC VTVM Voltage measurements (AC) Oscilloscope Waveform analysis and trouble shooting and ASO alignment DC VTVM Voltage measurements (DC) AC Wattmeter Monitors primary power to amplifier Line Voltmeter Monitors potential of primary power to amplifier Variable Autotransformer Adjusts level of primary power to amplifier Circuit Tester Trouble shooting Shor ting Plug Shor ts amplifier input to eliminate noise pickup
