Marantz PM 5003 Brochure

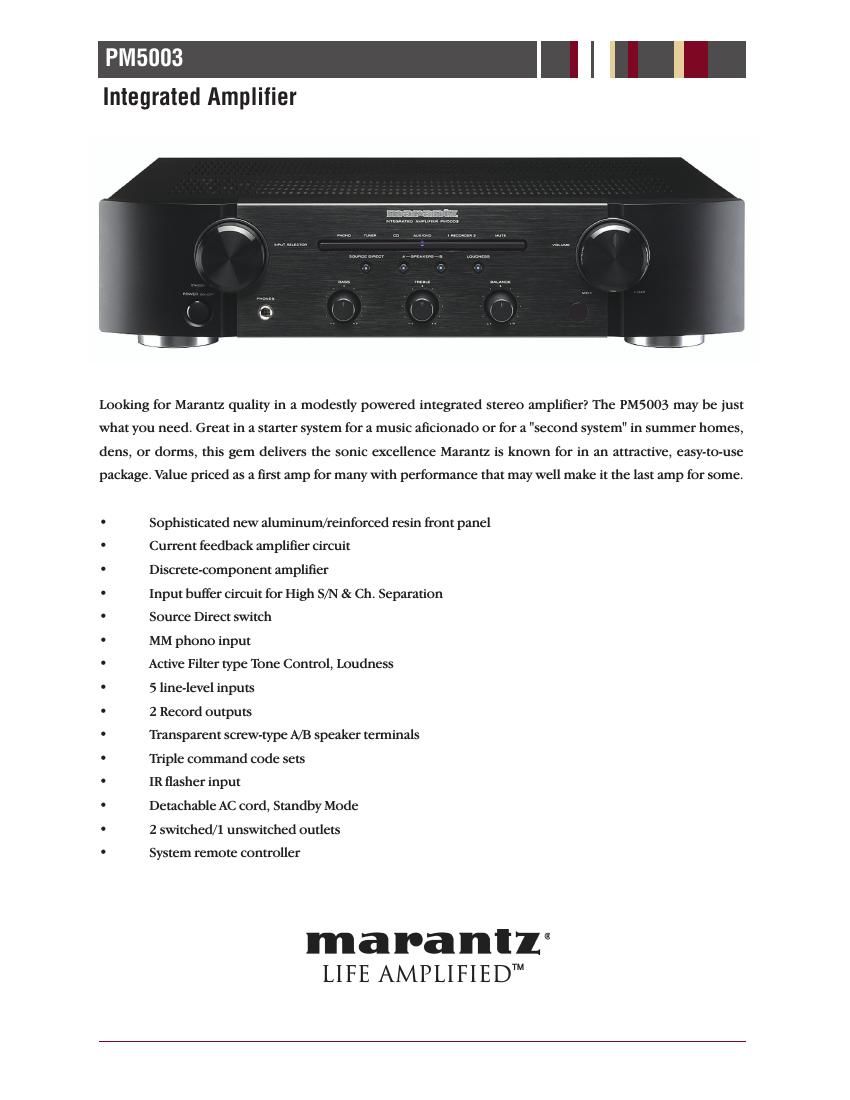

Page 1

MII l-ll-

lntegrated Amplifier

Looking for Marantz quality in a modestly powered integrated stereo amplifier? The PM5003 may be just
what you need, Great in a starter system for a music aficionado or for a "second system" in summer homes,
dens, or dorms, this gem delivers the sonic excellence Marantz is known for in an attractive, easy-to-use

package, Value priced as a first amp for many with performance that may well make it the last amp for some,

' Sophisticated new aluminum/reinforced resin front panel
- Current feedback amplifier circuit

- Discrete-component amplifier

- Input buffer circuit for High S/N & Ch, Separation
- Source Direct switch

- MM phono input

- Active Filter type Tone Control, Loudness

' 5 line-level inputs

- 2 Record outputs

- Transparent screw-type A/B speaker terminals

- Triple command code sets

' IR flasher input

- Detachable AC cord, Standby Mode

- 2 switched/1 unswitched outlets

- System remote controller

Illi':llilllll®
LIFE AMPLIFIEDT

Page 2

E_Ill

Integrated Amplifier

[h OUTPUTS

AUDIO

Main In/Pre Out .

Bridge Mono Mode/Bi-Amp Mode .

Headphone Out 1

Phono Input MM

Analog 1&R In 5

Analog IAtR Out 2

OTHER

External control Flasher In: 1

D-Bus Remote (RC-5) ln/Out M

AC Outlets Switched/Unswttched 2 1

THD 001% (201-12 A zokHz, 8 ohms)

Input Sensitivity/Impedance PHONO (MM) 22mV/47k ohms. LlNE. zolth/mk ohms
Frequency Response 10Hz . sou-12 +odb, Aldn

S/N Ratio PHONDmM'l mean immune anaemia/hat) (mm mean)
Number of Channels 2

Output Power 40W (8 ohms), 55W (4 ohms) (20112 - ZOkHz)
HDAM .

Power Transfonner El

Current Feedback Amplifier .

Speaker Terminal Transpatent Suewtype x2 pair

Tone Control Bass (100Hz): +,/- IOdB, Treble (IOkHz) +/. 10dB
Source Direct u

sEeaker A/E .

Color Black

Front Panel Aluminum/GlassAreinfarced resin
Remote Control Macantz System Remote Controller
Power Requirement AC120V 60Hz

Power Consumption 110w (UL60065)

Dimensions w x H x D (Inches) 17 5/16" x 4 1/8" x 14 9/16"

Weight (lbs) 14.5

marantl®
LIFE AMPLIFIEDW

All specifications, dimensions and weights are subject to change without notice.
D&M Holdings, Marantz, Marantz America. Inc, or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors
being made by retail dealers. designers, custom installers. cabinet makers or end users, etc based upon inionnation contained within this document

©2008 Matantz Americaslnct ' wwwmaranlz.com
