Marantz PD 6120 D Service Manual
This is the 246 pages manual for Marantz PD 6120 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz PD 6120 D Service Manual (Ocr-read)

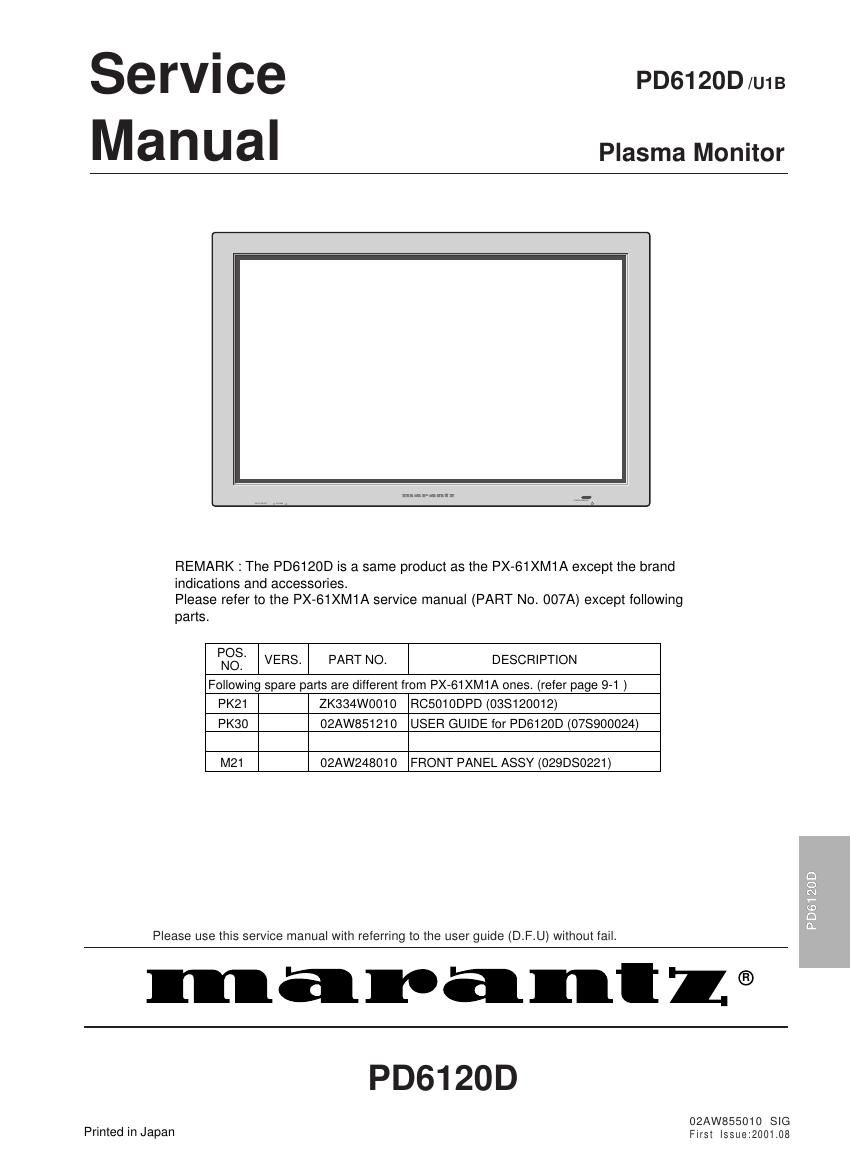

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or\ Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the corre\ ct part number has to be specified. The following information must be supplied to eliminate delays in proces\ sing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such par\ t order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of prod\ uct and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be r\ epaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620 SIG USA USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA CANADALENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA AUSTRALIAQualiFi Pty Ltd, QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND NEW ZEALANDWILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN TAIWAN PAI- YUING CO., LTD. PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA AUSTRALIA KOREA KOREA MK ENTERPRISES LTD. MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078
Page 2
MODEL PX-61XM1A PX-61XM1G PX-61XM1U-S1 No. 007A PlasmaSyncª Multimedia Monitor SERVICE MANUAL SAFETY CAUTION: Before servicing this chassis, it is important that the service technician read and follow the ÒSafety PrecautionsÓ and ÒProduct Safety NoticeÓ in this Service Manual. WARNING: SHOCK HAZARD - Use an isolation transformer when servicing. Better Service Better Reputation Better Profit
Page 59
40 Communication Format Command 1 Unit ID 1 Unit ID 2 Command 2 Data length Data Check sum 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit Command 1 Command 1, along with command 2, is a number used to distinguish each command. In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received. Unit ID 1 and Unit ID 2 Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected. 60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer. 1) Unit ID 1: Indicates the equipment sending the signal 2) Unit ID 2: Indicates the equipment receiving the signal Command 2 Command 2, along with command 1, is a number used to distinguish each command. Check Sum (CKS), Error Processing, and ACK 1) The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data. Check Sum Example DFH 80H 60H 47H 01H 01H 08H Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum Total 208H 2) Error Processing - When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data). - An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.
