Marantz IS 301 Service Manual

Extracted text from Marantz IS 301 Service Manual (Ocr-read)

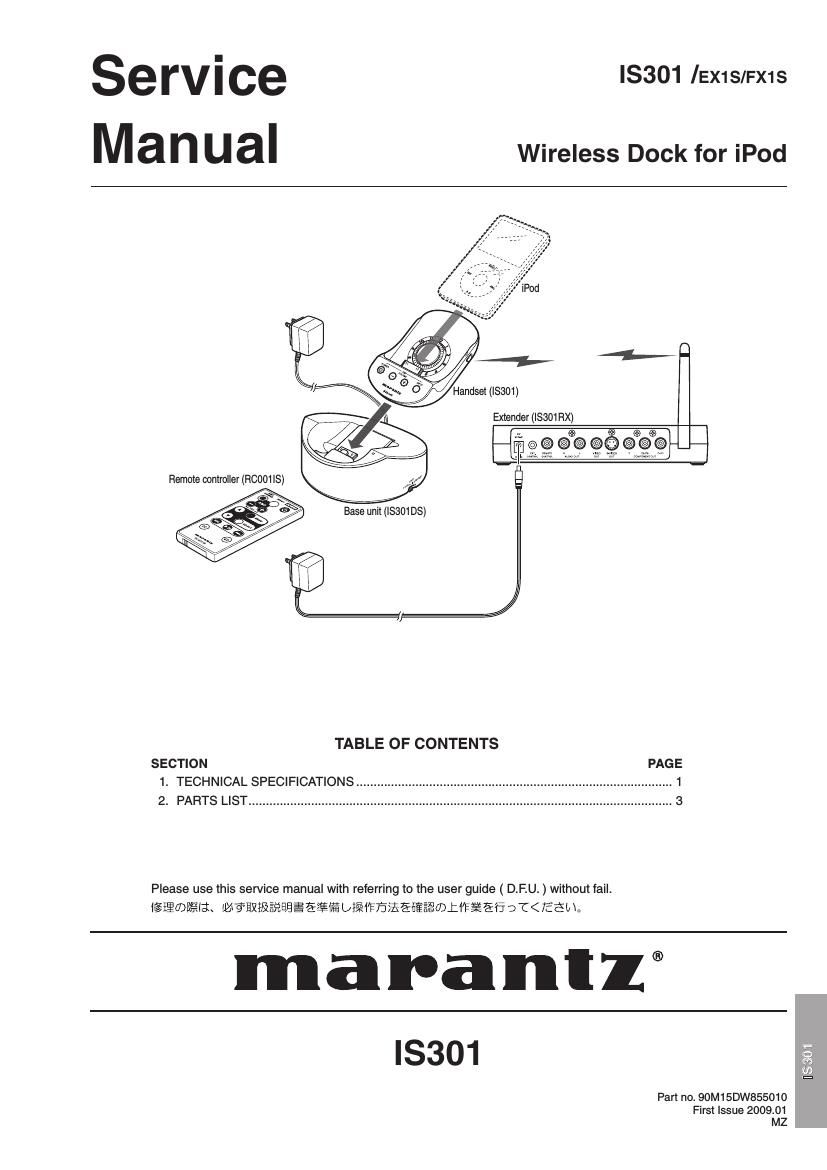

Page 1

MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 080702MZ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. † ¶ Íw «™  UmMoM æ ¼xz† ¶ Í OAs æ ¼pb{ žc¦ ^-oM æ ¼ jøw‹w›–;`o<^M{ USA MARANTZ AMERICA, INC 100 CORPORATE DRIVE MAHWAH, NEW JERSEY 07430 USA EUROPE / TRADING D&M EUROPE B. V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 KOREA D&M SALES AND MARKETING KOREA LTD. CHUNG JIN B/D., #1001, 53-5, WONHYORO 3 GA, YONGSAN-GU, SEOUL, 140-719, KOREA PHONE : +82 - 2 - 323 - 2155 FAX : +82 - 2 - 323 - 2154 CANADA D&M Canada Inc. 5-505 APPLE CREEK BLVD. MARKHAM, ONTARIO L3R 5B1 CANADA PHONE : 905 - 415 - 9292 FAX : 905 - 475 - 4159 JAPAN D&M BUILDING, 2-1 NISSHIN-CHO, KAWASAKI-KU, KAWASAKI-SHI, KANAGAWA, 210-8569 JAPAN D&M Holdings Inc. CHINA D&M SALES AND MARKETING SHANGHAI LTD. ROOM.808 SHANGHAI AIRPORT CITY TERMINAL NO.1600 NANJING (WEST) ROAD, SHANGHAI, CHINA. 200040 TEL : 021 - 6248 - 5151 FAX : 021 - 6248 - 4434

Page 2

1 1. TECHNICAL SPECIFICATIONS SPEC IFICA TION S IS 301 (H ANDSET) Power supply ( from iPod accessory power supply) .....................................\ ..................................... 5 V DC W eight ........................................................................\ ............................................................. 68 g / 2.4 oz External dimensions (W/H/D) ......................................... 67 × 105 × 30 mm (2-11/16 × 4-3/16 × 1-3/16 in) T erminals ........................................................................\ ............................................................USB mini B 67 mm (2-11/16 in) 30 mm (1-3/16in) 105 mm (4-3/16 in) I S 301DS (BAS E UNIT ) Power supply (from the dedicated AC adaptor) ......................................\ ..................................... 8 V DC IN W eight ........................................................................\ ............................................................230 g / 8.1 oz External dimensions (W/H/D) ......................................... 123 × 123 × 49 mm (4-7/8 × 14-7/8 × 1-15/16 in) T erminals ........................................................................\ ............................................................... RJ-45 ×2 123 mm (4-7/8 in) 123 mm (4-7/8 in) 49 mm (1-15/16 in) I S301RX (EXTE NDER ) Power supply (from the dedicated AC adaptor) ......................................\ ..................................... 8 V DC IN W eight ........................................................................\ .............................................................230 g / 8.1oz External dimensions (W/H/D) ..........................................\ ... 191 × 60 × 36 mm (7-9/16 × 2-3/8 × 1-7/16 in) T erminals ........................................................... Video output (S-VIDEO ×1, VIDEO ×1, COMPONENT ×1) .................................... Analog audio ×1, Remote terminal ×1, RS-232C terminal ×1, RJ-45\ ×2 60 mm (2-3/8 in) 191 mm (7-9/16 in) 36 mm (1-7/16 in) BLUE TOOTH-R ELA TED (IS301/ IS 301R X) Communication method ........................................................................\ ............... Bluetooth ver. 2.1 + EDR T ransmission output ........................................................................\ ...................... Bluetooth Power Class 2 Maximum transmission distance ......................................Line-of-sight distance approx. 10 m (32.8 ft)(*1) T ransmission frequency band ........................................................................\ ..... 2.400 GHz to 2.4835 GHz Modulation method ........................................................................\ .................................................... FH-SS Supporting Bluetooth proles ................................................. A2DP (Advanced Audio Distribution Prole), ) e l i f o r P l o r t n o C e t o m e R o e d i V o i d u A ( P C R V A Supporting CODEC ........................................................................\ ........................... SBC (Subband Codec) Supporting content protection .................................................................... SCMS-T (Only for the IS301RX) Passcode ........................................................................\ ...................................................................... 0000 ( * 1 ) The transmission distance is an approximate value. It may var y, depending on the ambien t e nvir onm en t. t The Bluetooth ® wor d m ark a nd lo g os are r e gis tered t r ademarks o wne d by Blu etoo th SIG, Inc. and an y u se o f such m arks b y D&M Holdin gs Inc. is unde r lic ense. Other tradem arks and trade names are t h o se of thei r respec tiv e own ers. t C on nec tio n wi th all existi ng Bluet ooth devic es i s not guar anteed. SUPPLIED AC ADA PTOR Power supply : INPUT ...................................................... 100 V - 240 V AC (50 Hz or 60 Hz), 250mA, 35VA OUTPUT..........................................................\ ...........................................8 V DC, 1000mA The speci cations and external appearance of this unit may be change\ d without prior noti cation f o r t h e p urp o se o f impro vem ent.
