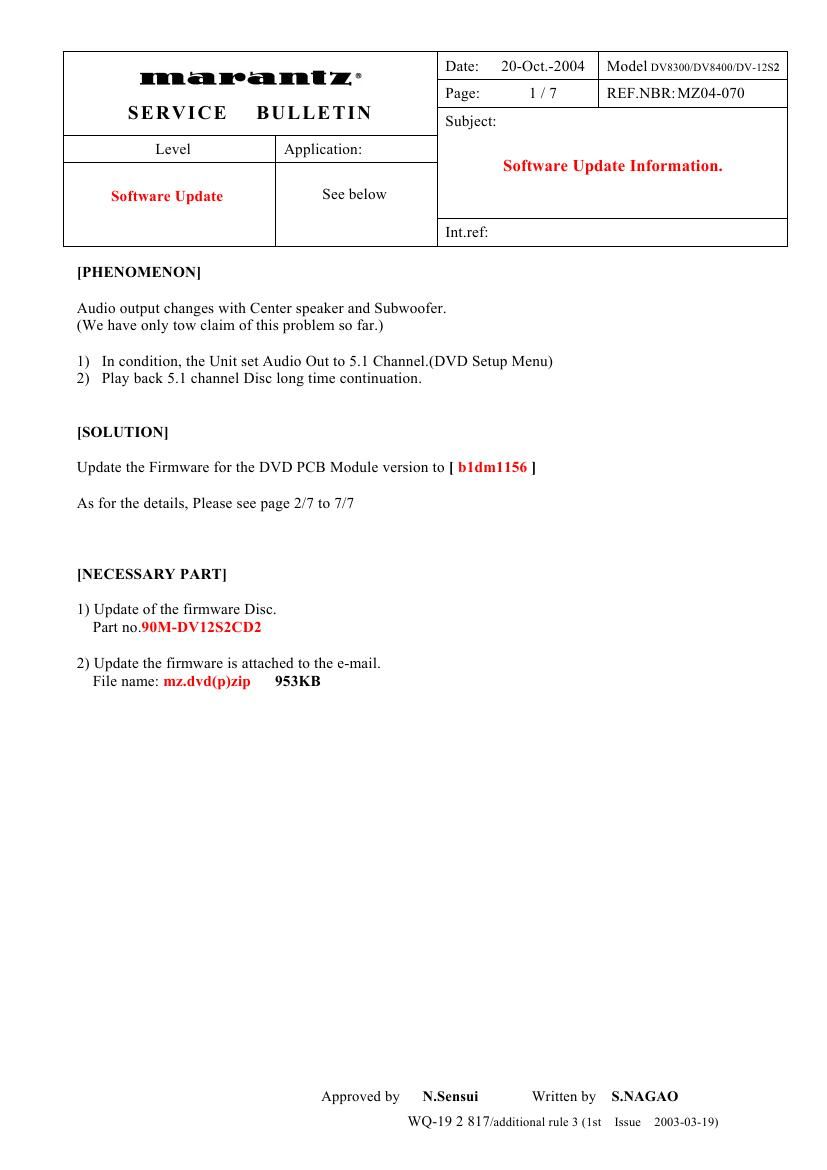

Marantz DV 8300 Service Bulletin
This is the 7 pages manual for Marantz DV 8300 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz DV 8300 Service Bulletin (Ocr-read)
Page 1
DV8300 / DV8400 / DV-12S2 Service Bulletin REF.NBR: MZ04-070 page 2/7 Firmware Update Procedure Purpose: Update Firmware of DB-VPB305 (DVD PCB Module for MARANTZ). Caution 1. First, confirm the number of DVD –Audio ID , and write down a number before you begin this work. 2. Please see to the service manual page 3-18 to 3-22 for DV8300/DV8400 or page 3-22 to 3-24 for DV-12S2 How to confirm the ID number.(EEP ROM) 3. The updating of firmware takes about 7 minutes. Necessary Equipment 1. Windows PC with Serial Port (OS: 95, 98, Me, 2000 or XP) 2. RS-232C cable straight type (9 pin female – 9 pin male) 3. DATA UPDATE KIT ( *DV12S1JiG ) 4. Zip file mz_dvd(p).zip: include a application software for update of Firmware and updating data. PC serial port 1 (COM1) DATA UPDATE KIT Part no. *DV12S1JiG Service Connector
Page 2
DV8300 / DV8400 / DV-12S2 Service Bulletin REF.NBR: MZ04-070 page 3/7 Updating procedure 1. Copy a Zip file to the hard disk of PC. 2. Unzip a Zip file. The mz_dvd (p) folder opens automatically. 3. Double click the tool folder, and open. 4. Double click the UFU.exe.
