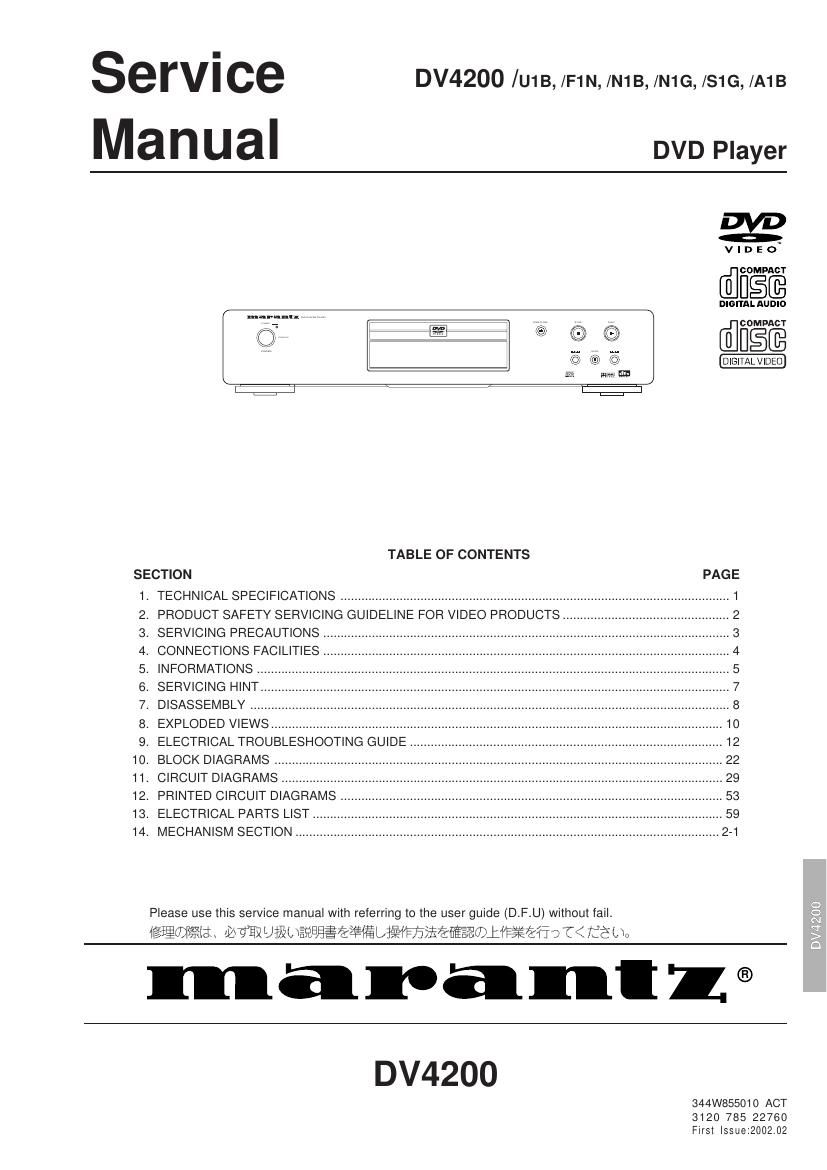

Page 1

MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 020110 ACT USA MARANTZ AMERICA, INCMARANTZ AMERICA, INC.1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADALENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIAQualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALANDWILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078

Page 2

1 1. TECHNICAL SPECIFICATIONS DVD Player Power supply (S) . AC 220~230V, 50/60 Hz Power supply (U) ............... AC 120V, 60 Hz Power supply (N) ............... AC 230V, 50 Hz Power supply (F) ........... AC 100V, 50/60 Hz Power supply (A) ...... AC 110~240V, 50 Hz Power consumption ............................ 16 W Weight ............................... 7.1 lbs. (3.2 kg) External dimensions (W X H X D) ............................... 17.3" X 3.5" X 10.0" (440 x 88 x 254 mm) Signal system (U, F) ......................... NTSC Signal system (N, S) ................. PAL, NTSC Laser Semiconductor laser, wavelength . 650 nm (DVD), 780 nm (CD) Frequency range (audio) ................... DVD: fs = 96 kHz 4 Hz - 44 kHz ............................ fs = 48 kHz 4 Hz - 22 kHz ........................................ CD: 4 Hz - 20 kHz Signal-to-noise ratio (audio) ......................... More than 105 dB (EIAJ) Dynamic range (audio) ................................. More than 100 dB (EIAJ) Harmonic distortion (audio) ........... 0.003 % Wow and flutter Below measurable level .......................... (less than + 0.001 % (W.PEAK)) (EIAJ) Operating conditions ....... Temperature: 41°F to 95°F (5°C to 35°C), Operation status: Horizontal Outputs Video output ............... 1.0 V (p-p), 75 , negativ e sync., RCA jack x 1 S-video output (Y) ........................................ 1.0 V (p-p), 75 , negativ e sync., Mini DIN 4-pin x 1 (C) ...... 0.286 V (p-p), 75 Component video output (Y) (U, F, S, A) ............ 1.0 V (p-p), 75 , negativ e sync., RCA jack x 1 (CB)/(CR) (U, F, S, A) ...... 0.7 V (p-p), 75 R/G/B output (N) ............................ 0.7 Vp-p 21-pin SCART connector Audio output (digital audio) ................. 0.5 V (p-p), 75 , RCA jac k x 1 Audio output (optical audio) (F, A, S, N) ............. Optical connector x 1 Audio output (analog audio) .......................... 2.0 Vrms (1 kHz, 0 dB), 330 , RCA jac k (L, R) x 2 Supplied Accessories Video cable ......................................... 1 Audio cable ......................................... 1 System Control cable .......................... 1 Remote control ................................... 1 Batteries .... 2 Designs and specifications are subject to change without notice. REMARK This service manual corresponds to service modification code number "MZ01" and later. When exchanging MAIN PCB on the product of the service modification code "MZ00", it is necessary to also exchange the following parts on the I/O PCB simultaneously. (The service modification code is mentioned in the number label on the rear panel. Ex.MZ01xxxxxxxxxx) Two kinds of MPEG ICs (IC501) exist in this model. Since the conventional IC (Pantera-2) became a production stop, this was generated. Since power supply voltage is changed, new IC (Pantera-2 LE) has change in a power supply part. In the case of repair, please fix after checking the version of IC. Service modification code MZ00 MZ01 Location D115 1N17 Tin Wire
