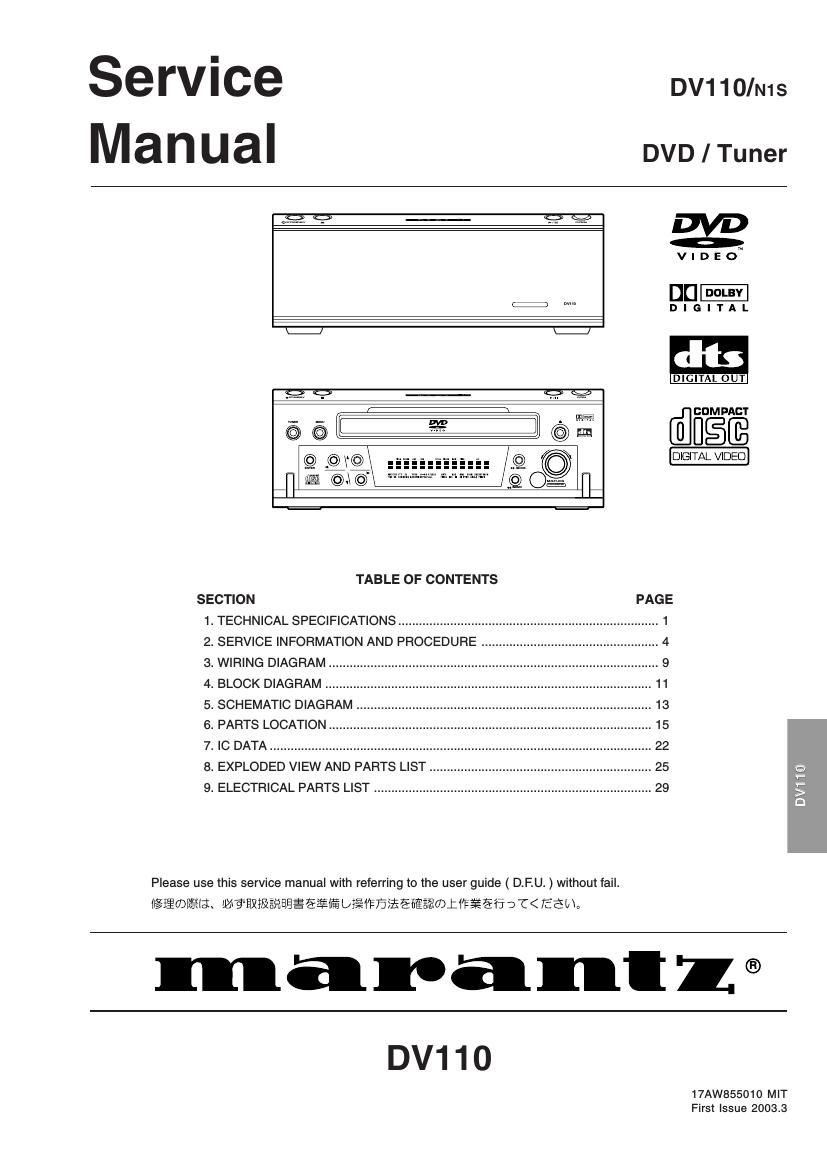

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 030307MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 AUSTRALIAQualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALANDWILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. 2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 HONG KONG Jolly ProAudio Broadcast Engineering Ltd. UNIT 2, 10F, WAH HUNG CENTRE, 41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 TECHNICAL AUDIO GROUP PTY, LTD 43-53 Bridge Rd., STANMORE NSW 2048 AUSTRALIA PHONE : +61 - (0)2 - 9519 - 0900 FAX : +61 - (0)2 - 9519 - 0600 AUSTRALIA
Page 2
1 1. TECHNICAL SPECIFICATIONS TUNER SECTION FM TUNER SECTIONTuning range ........................................................................................................................................................ 87.5 to 108.0 MHz Usable sensitivity (3% distortion) .......................................................................................................................................... 9.5 dBµ S/N ratio ............................................................................................................................................... Mono: 65 dB / Stereo: 60 dB T.H.D. 1kHz ..................................................................................................................... Mono: 0.5% or less / Stereo: 1.0% or less Output voltage ........................................................................................................................................................ 800 mV ±120 mV AM TUNER SECTIONTuning range ........................................................................................................................................................... 531 to 1602 kHz Usable sensitivity (Loop antenna)............................................................................................................... 1500 µV/m / 63.5 dBµ/m S/N ratio (400Hz/30% Modulation/10mV/m input)................................................................................................................... 35 dB T.H.D. (400Hz/30% Modulation/10mV/m input)............................................................................................................. 1.5% or less Sensitivity (±9kHz)................................................................................................................................................................... 20 dB Output voltage (400Hz 30% Modulation) ................................................................................................................. 240 mV ±60 mV DVD SECTION AUDIO SECTIONFrequency response ............................................................................................................................................... 20-20 kHz ±1 dB S/N IEC-A ................................................................................................................................................................................ 90 dB Dynamic range ......................................................................................................................................................................... 90 dB T.H.D. ..................................................................................................................................................................................... 0.01 % Channel separation 1kHz ........................................................................................................................................................ 90 dB Audio output .................................................................................................................................................................... 2.0 V ±1 dB Digital output.............................................................................................................................................................. 0.5 Vp-p ±0.05 VIDEO SECTIONFrequency response (100IRE, Multi burst 1MHz Ref. 4.8MHz) .............................................................................................. 6.0 dB Video S/N (White100%, LPF:4.2MHz, HPF:100kHz, SC trap:ON) ......................................................................................... 60 dB Color S/N (Magenta100%, LPF:500kHz, HPF:100kHz).......................................................................................................... 56 dB Video output............................................................................................................................................................ 1.0 Vp-p ±0.8 dB Video output impedance............................................................................................................................................................ 75 Ω Y output level ............................................................................................................................................................... 1.0 Vp-p ±0.1 C output level ..................................................................................................................................................... 0.286 Vp-p ±0.0286 Y/C output impedance............................................................................................................................................................... 75 Ω GENERAL Power supply ............................................................................................................................................................ AC 230V, 50 Hz Power Consumption................................................................................................................................................................. 18 W Maximum external dimensions (W x H x D) ..................................................................................................... 210 x 71.5 x 320 mm Weight ...................................................................................................................................................................................... 2.8 kg ACCESSORIES Remote control unit (RC110DV) ...................................................................................................................................................... 1 Batteries (AAA type) ........................................................................................................................................................................ 2 FM feeder antenna........................................................................................................................................................................... 1 Antenna plug adapter...................................................................................................................................................................... 1 AM loop antenna .............................................................................................................................................................................. 1 Audio cable (Red/White).................................................................................................................................................................. 1 Video cable (Yellow)......................................................................................................................................................................... 1 Coaxial cable (Black) ....................................................................................................................................................................... 1 Remote cable (Orange) ................................................................................................................................................................... 1 Registration card .............................................................................................................................................................................. 1 Users guide ..................................................................................................................................................................................... 1
