Marantz DV 110 Service Bulletin
This is the 2 pages manual for Marantz DV 110 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz DV 110 Service Bulletin (Ocr-read)

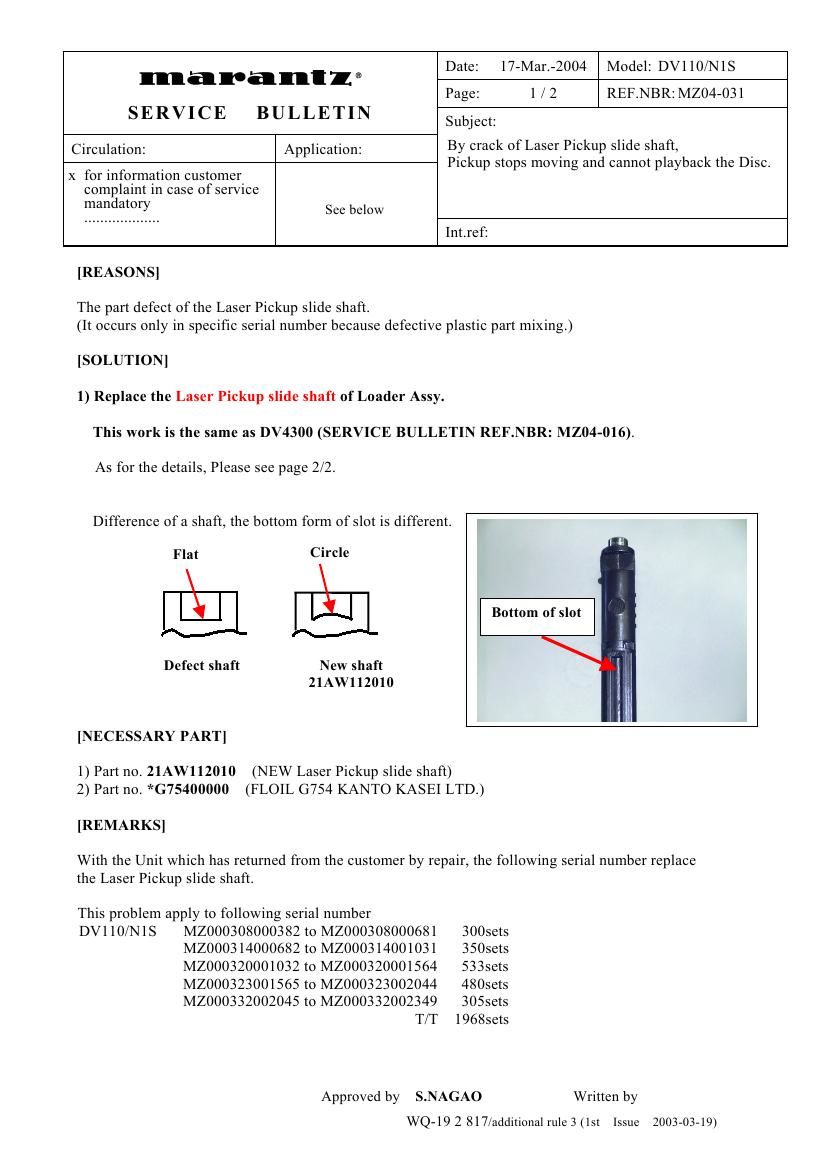

Page 1
Approved by S.NAGAO Written by WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) DV110/N1S SERVICE BULLETIN (REF.NBR: MZ04-031) page2/2 1. Open the disc tray. 2. Remove 2 screws. 3. Push 2 hooks to inside and remove the cover. 4.Remove 2 screws and remove plastic ring. 5. the Laser Pickup slide shaft is lifted to the upside and remove it 6.Grease is applied to the New Laser Pickup slide shaft Grease (FLOIL G754) is applied to both sides of shaft. When Pickup moves, grease is thinly applied so that it may not collect. Range of apply grease. Set projection and a slot 8.Attach Plastic ring and screws 9.Attach the cover 10. Check method. The outermost circumference of the normal Disc can be played. This projection is the DISC outside. 7.Attach the New Laser Pickup slide shaft
