Extracted text from Marantz DR 6000 Service Manual (Ocr-read)

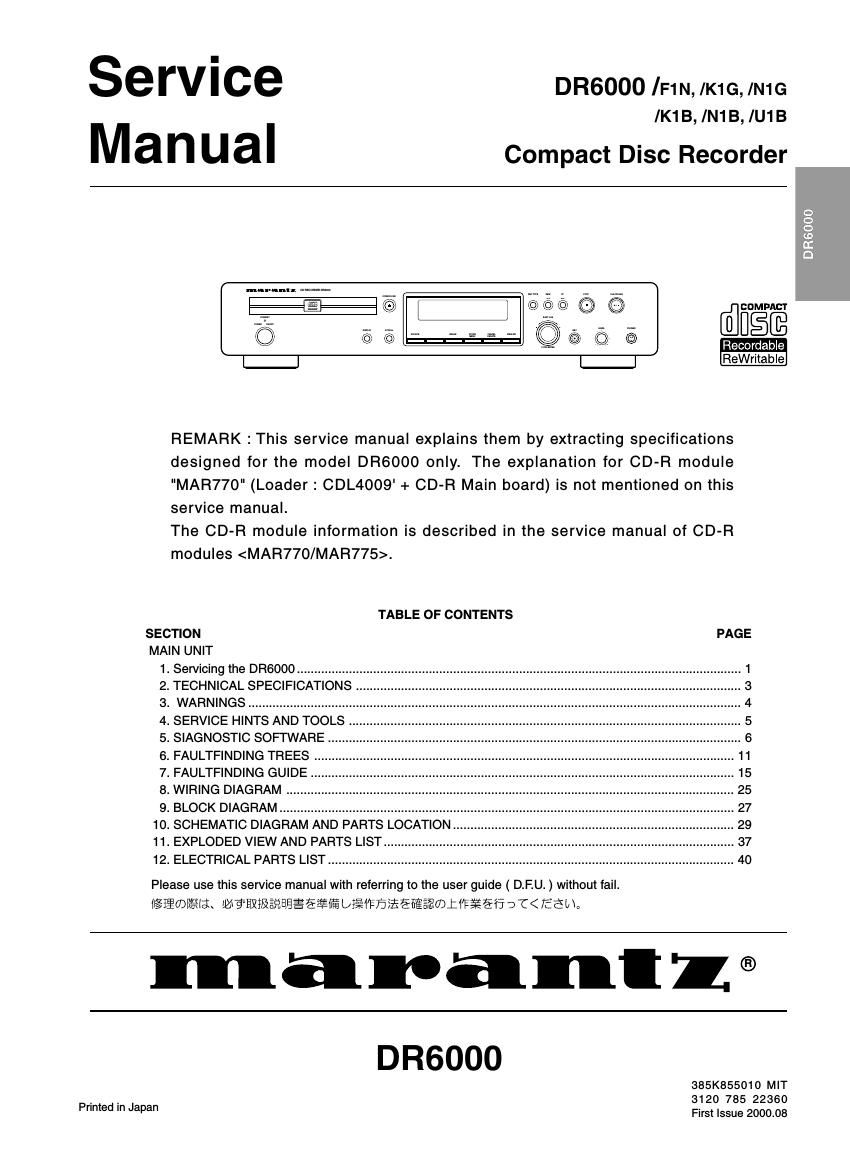

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct par t number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 991207MIT USA MARANTZ AMERICA, INCMARANTZ AMERICA, INC.440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL PHILIP DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC.35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 AUSTRALIA JAMO AUSTRALIA PTY LTD1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD.6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD.SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD.ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTDWO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213 WILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 NEW ZEALAND CANADA LENBROOK INDUSTRIES LIMITED633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA
Page 2
1 1.Servicing the DR6000 1.1 INTRODUCTION: The DR6000 is the consumer version of a CD recorder , this means that the SCMS (Serial Copy Management System) is included. The DR6000 can only record on the Audio CDRs (Consumer Use). The DR6000 is suitable for recording and playback of CD-R W discs (CD-Re Writable disc). 1.2 OPENING THE PRODUCT : The product can be opened by removing the top cover (6 screws). Once the product is opened one can have access to the several PCB's and the main module. To have access to the Display PCB, the Headphone PCB first the front cover has to be removed (See dismantling instructions on page1-7). Below the several PCB's and it function and service policy will be discussed: Consumer : For Digital Audio Professional : For General use (Including PC) P : Playback R : Recording Playback & Recording and Disc Disc Player/RecorderCDCDRCD-RW SCMS Consumer DiscConsumer Disc Professional DiscProfessional Disc Finalized Finalized non Finalized non Finalized non Finalized non Finalized Finalized Finalized Audio CD Player Current products Ex:CD-17 Audio CD Player CD-RW playback Ex:CD-17MK II CD-RW Recorder For Professional Ex:CDR630/640 CD-RW Recorder For Consumer Ex:DR6000 PPnoP no no no no no - PPnoP no Pno Pno - P P P/R P P/R P/R P/R P/R P/R no P P P/R P noP/R P/Rno noYES CDR LOADER POW ER SW BOARD Trans- former POW ER SUPPPLY and AUDIO BOARD DISPLAY BOARD HEAD PHONE BOARD MOTER BOARD
