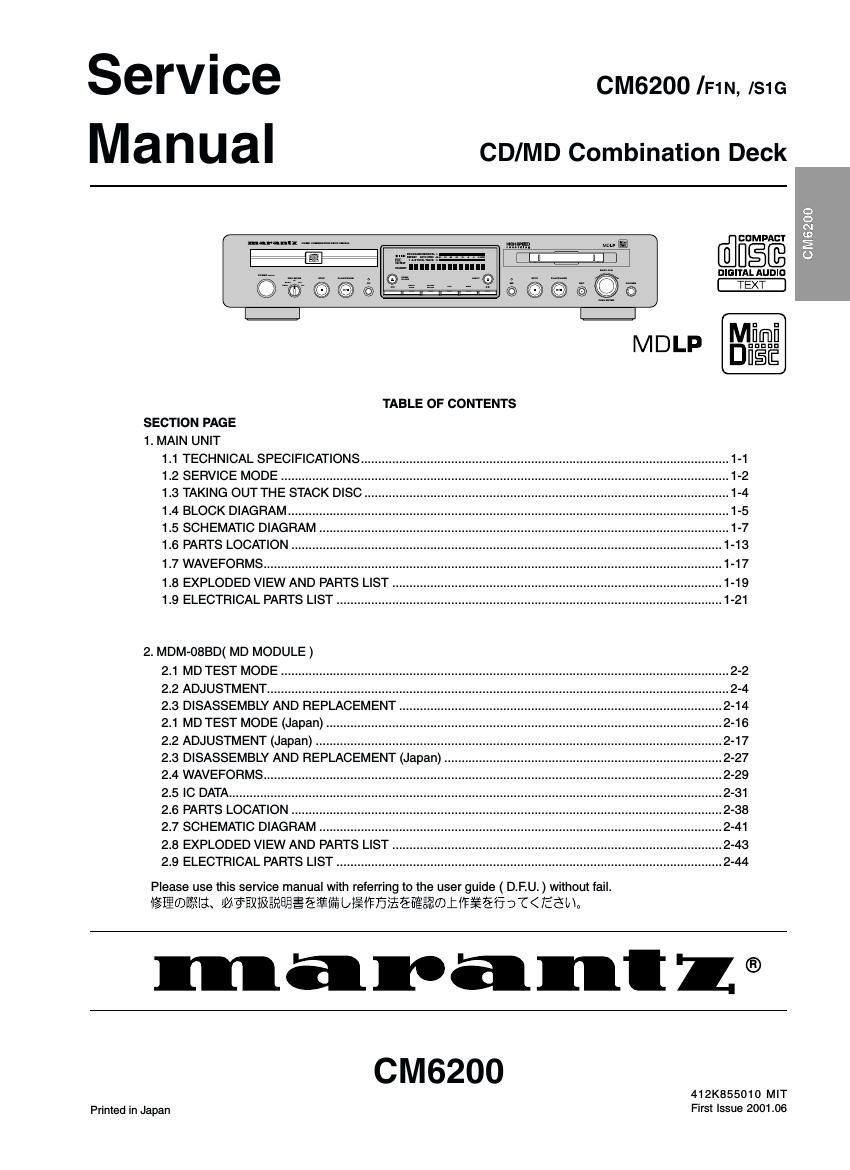

Marantz CM 6200 Service Manual
This is the 63 pages manual for Marantz CM 6200 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz CM 6200 Service Manual (Ocr-read)
Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 001120MIT USA MARANTZ AMERICA, INCMARANTZ AMERICA, INC.440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC.35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd,24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD.6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD.SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD.ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078
Page 2
1-1 1.1 TECHNICAL SPECIFICATIONS Specifi cations Audio characteristics Channels(SP, LP2, LP4 mode)......................................................................................................................Stereo, 2 channels Monaural (MONO mode) ............................................................................................................................................1 channel Frequency response...........................................................................................................................................20 to 20,000 Hz Recording system.....................................................................................................Magnetic fi eld modulation override system Dynamic range..................................................................................................................................................More than 95 dB Signal-to-noise ratio......................................................................................................................................... Better than 96 dB Channel separation......................................................................................................................More than 95 dB (at 1,000 Hz) Total harmonic distortion .......................................................................................................... Less than 0.004% (at 1,000 Hz) Wow & fl utter ..................................................................................................................................................... Quartz accuracy Error correction system ................................................................... Advanced cross interleaved Reed-Solomon code (ACIRC) Coding .................................................................................................................. Adaptive transform acoustic coding (ATRAC) Audio output........................................................................................................................................................... 2 Vrms stereo Audio input sensitivity .....................................................................................................................................500 mVrms stereo Optical digital output (square optical connector) ........................................................................................................... -19 dBm Optical digital input (square optical connector) .............................................................................................................. -19 dBm Optical readout system Laser...............................................................................................................................................AlGaAs semiconductor laser Wavelength ...................................................................................................................................................................... 780 nm Sampling frequency (Converted to 44.1 kHz when 32 kHz or 48 kHz is input) ............................................................. 44.1 kHz Power supply .............................................................................................................................................. 100 V AC, 50/60 Hz(F) .................................................................................................................................................. 230 V AC, 50 Hz(S) Power consumption ................................................................................................................................................................ 14 W Maximum dimensions ....................................................................................................................440 (W) x 86 (H) x 316 (D) mm Weight .................................................................................................................................................................................. 4.7 kg Ambient operating temperature ............................................................................................................................... +5°C to +35°C Ambient operating humidity ................................................................................................................ 5 to 90% (no condensation) The sets specifi cations and external appearance are subject to change without notice due to improvements.
