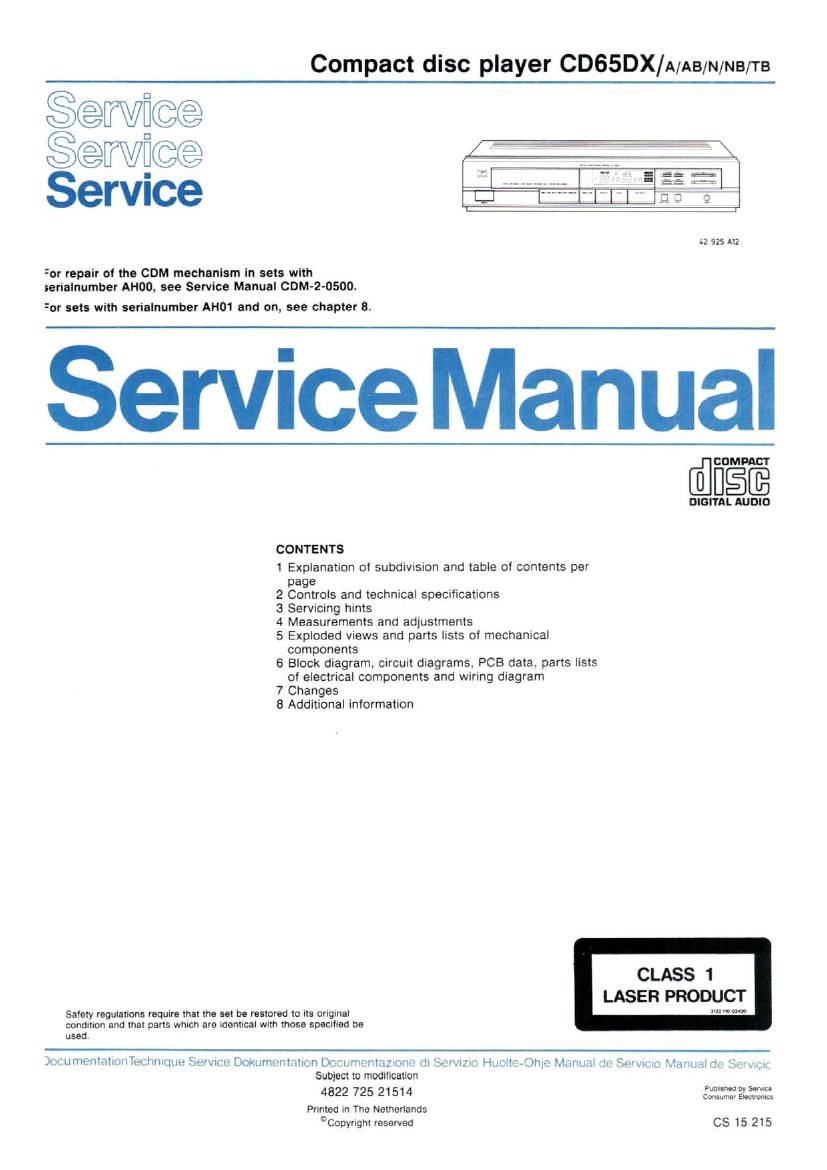

Marantz CD 65 DX Service Manual

Page 1

Compact disc player CDBSDX/A/AB/N/Ne/TB

Service
Sewgce , +r
Servrce

A2 925 All
=or repair at the CDM mechanism in sets with

renelnumber AHOO. see Service Manual COM-24:500.
=or sets with serialnumber Aunt and on. see chapter a.

Service Manual

[flfigfi

DIGITAL AUDIO

CONTENTS

1 Explanation ol subdivision and table 01 contents per
page

2 Controls and technical specifications

3 Servicing hints

4 Measurements and adjustments

5 Exploded views and parts lists of mechanical
components

6 Block diagram, circuit diagrams, PCB data. parts lists
of electrical components and wiring diagram

7 Changes

8 Additional information

Safety regulations require that the set be restored to its original mm um
condition and that parts which are identical with those specltlea be
used
Jill umr-ntnlimlelrnuue Sorwtu Dokunwntatrr n Lkrlmvmrlrlontr ill bvrwlm Htl'lfi»f)l;fiN14illlr311' Swim C ~.4;ivm,:- r l l
Subject to modllicauon
4822 725 21514 WI-m by sown

Comm: EWIWS
Printed in The Netherlands
°capyright reserved CS 15 215
