Marantz CD 5000 Service Manual
This is the 30 pages manual for Marantz CD 5000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz CD 5000 Service Manual (Ocr-read)

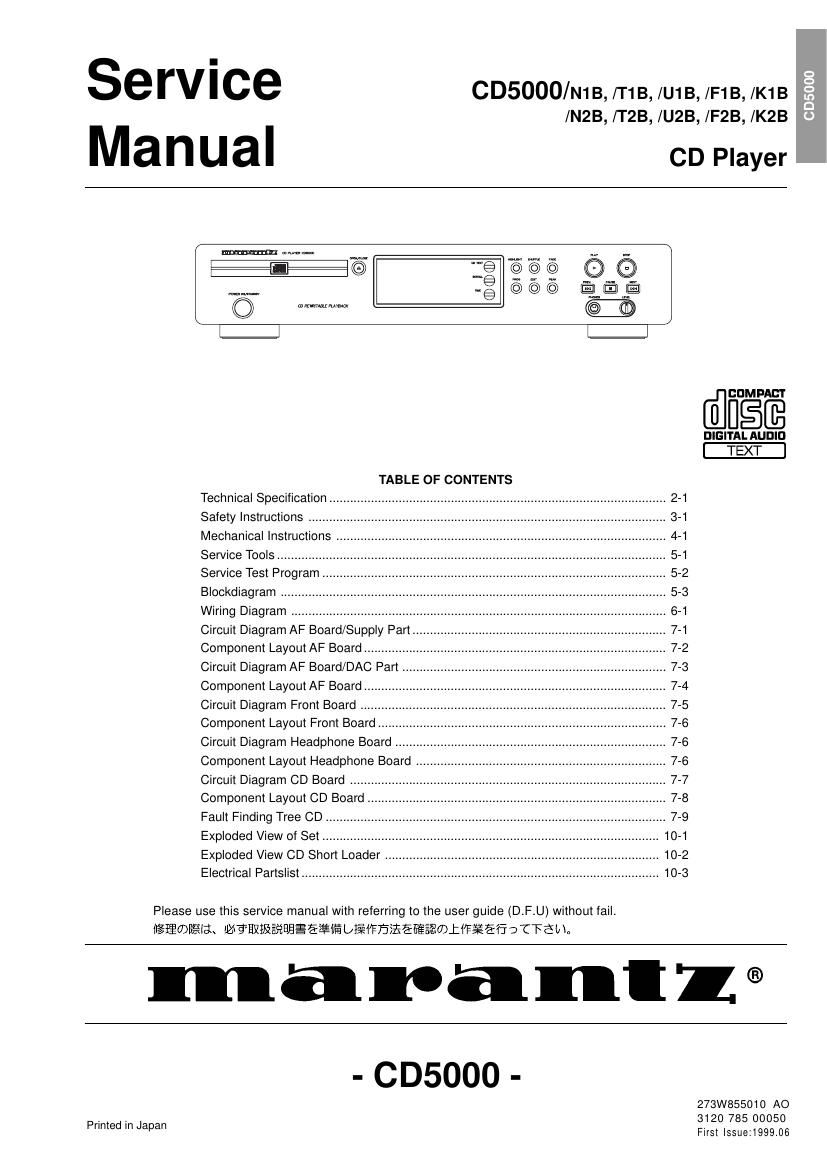

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or\ Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the corre\ ct part number has to be specified. The following information must be supplied to eliminate delays in proces\ sing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such par\ t order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of prod\ uct and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be r\ epaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990521A.O USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 748 9190 EUROPE / TRADING EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 NEW ZEALAND SCAN AUDIO PTY. LTD. SCAN AUDIO PTY. LTD. 8C PIERMARK DRIVE, ALBANY. NORTH SHORE, AUCKLAND. NEW ZEALAND PHONE : +64 - 9444 - 4710 FAX : +64 - 9444 - 1346 AUSTRALIA SCAN AUDIO PTY. LTD. SCAN AUDIO PTY. LTD. 52 CROWN STREET, RICHMOND 3121 VICTORIA AUSTRALIA PHONE : +61 - 3 - 9429 - 2199 FAX : +61 - 3 - 9429 - 9309 THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. NO. 102 JALAN SS 21/35, DAMANSARA UTAMA, 47400 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 3 - 7184666 FAX : +60 3 - 7173828 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTD WO KEE HONG (S) PTE LTD WO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213
Page 2
2-1 General Dimensions (WxHxD) : 435 x 86 x 265mm Weight : 2,9kg Accessories Instruction for use : 3139 116 19120 for /F : 3139 116 19130 for /K : 3139 116 18900 for /N, /T : 3139 116 19110 for /U Remote control : 3139 228 82600 Mains voltage /N, /T : 220-230V( 10%) 50Hz /K :110-120/220230V( 10%) 50/60Hz /U :120V( 10%) 60Hz /F :100V( 10%) 50/60Hz Power consumption stand by : 5W operating : approx. 8W Audio performance Number of channels : 2 Output voltage (Line out) : 2V RMS 3dB Unbalance left-right : 1dB Frequency response : 20Hz-20kHz 0,4dB Signal to noise ratio : 108 dB typ. Dynamic range : 105dB typ. at 1kHz THD : 0,0063% at 1kHz Channel separation : 98dB typ. at 1kHz Headphone output Output level (1kHz, 0dB) : 5V RMS Unbalance left-right : 1,2dB Output impedance : 120 Load impedance : 32 - 600 Output power : 25mW at 32 : 52mW at 120 : 29mW at 600 Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Measurement setup Use Audio Signal disc SBC429 4822 397 30184 L R LEVEL METERe.g. Sennheiser UPM550with FF-filter S/N and distortion metere.g. Sound Technology ST1700B TECHNICAL SPECIFICATION sdnammoC5CR 02=edocmetsyS dnammoC edoC dnammoC edoC dnammoC edoC "0"YEK LLORCSYALPSI D1 5 E L F F U H S28 " 1 " Y E K Y A L P53 T H G I L H G I H43 " 2 " Y E K P O T S54 T A E P E R29 " 3 " Y E K E S U A P48 E D A F20 1 " 4 " Y E K E M I T11 P U E M U L O V16 " 5 " Y E K S U O I V E R P33 N W O D E M U L O V17 " 6 " Y E K W E I V E R50 Y B D N A T S12 " 7 " Y E K E U C52 T X E T D C88 " 8 " Y E K M A R G O R P36 T X E N32 " 9 " Y E K B / A T A E P E R59 0 1 2 3 4 5 6 7 8 9
