Marantz Audio Components 1977 Catalog

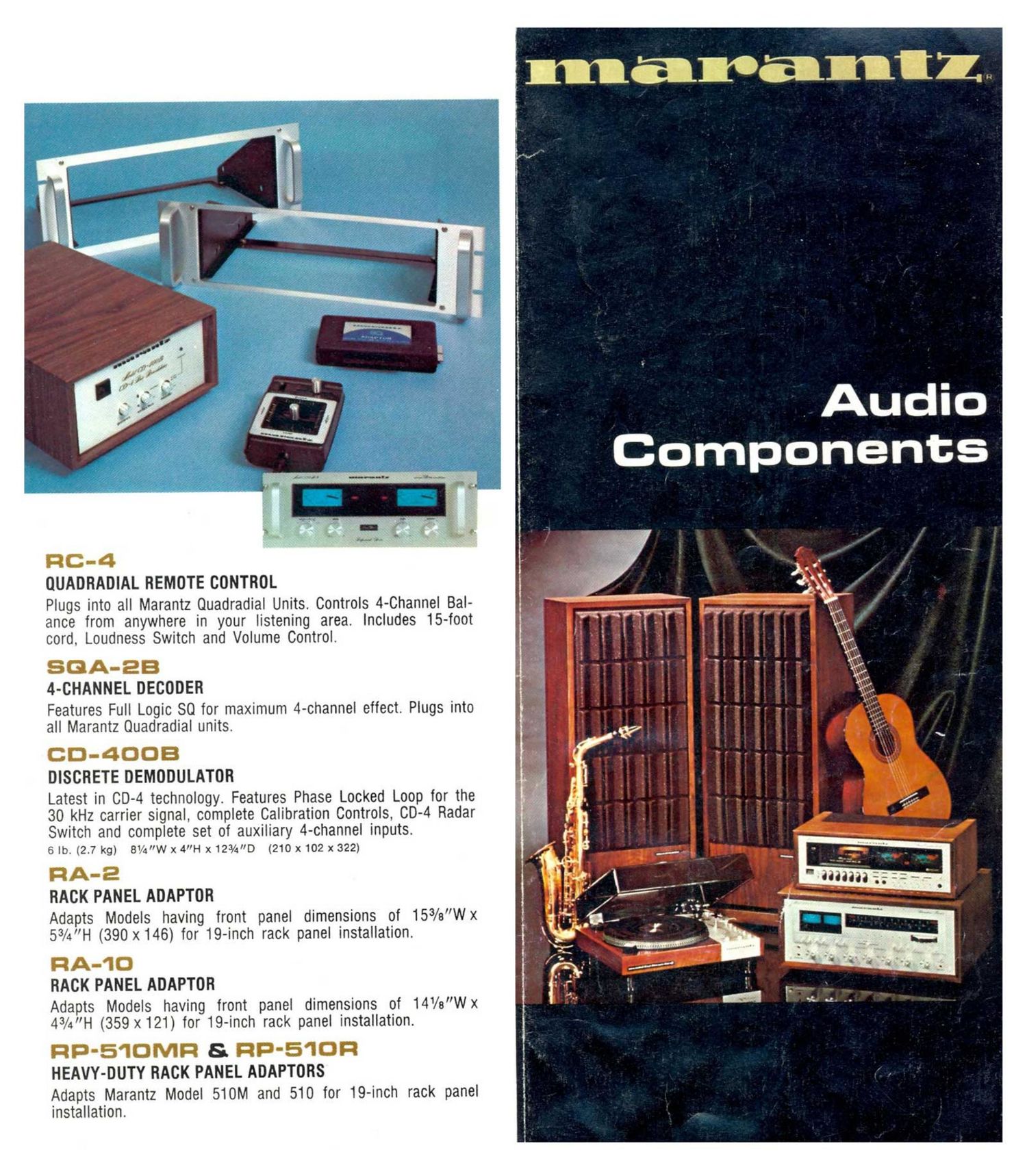

Page 1

QUADRADIAL REMOTE CONTROL

Plugs into all Marantz Quadradial Units. Controls 4-Channel Bal-
ance from anywhere in your listening area. Includes 15-foot
cord. Loudness Switch and Volume Control.

4-CHANNEL DECODER
Features Full Logic SD for maximum 4-channel effect. Plugs into
all Marantz Quadradial units.

--A$J 11! -,
. , . . . . u, . .
. . l... ., a . s.
l i .

DISCRETE DEMODULATOR
Latest in CD-4 technology. Features Phase Locked Loop for the
30 kHz carrier signal, complete Calibration Controls, CD-4 Radar

Switch and complete set of auxiliary 4-channel inputs.
6 lb. (2.7 kg) 8V4W x 4H x123/4D (210 x 102 x 322)

, . . . .
lug.» .nq 'QLL'I'.>'4H~ an... - '
. . . . . -_.. . , _ ._.

-. Ilu

-. _, Ill -
' r.

3333; if : : - _

RACK PANEL ADAPTOR
Adapts Models having front panel dimensions of 15%"Wx
53/4H (390 x 146) for 19-inch rack panel installation.

nAcK PANEL ADAPTOR

Adapts Models having front panel dimensions of 14/aWx
43/4H (359 x 121) for 19-inch rack panel installation.

' & 5'2, .3.-

HEAVY-DUTY ACK PANEL ADAPTORS

Adapts Marantz Model 510M and 510 for 19-inch rack panel
installation.

.I

Page 2

Mfllflllil DICSBMS "l8 WOIIU'S most DOWBlilll
SiCl'BO I'BCCIVBI'. Mill lllflll some.

Introducing a new generation of Marantz Stereo Re-
ceivers. Eight brand new models with more power,
more features, more performance than ever before.

Top of the line is the Marantz 2385, most powerful
receiver on the market today. But all eight models are
built to the same high standards of excellence. So no
matter which one you buy, youre getting the same
technical expertise that made Marantz the worlds
most respected name in high fidelity components.

2385 AM/FM STEREO RECEIVER

185 Watts per Channel into 8 Ohms, Minimum Continuous Power
Output from 20 Hz to 20 kHz, with no more than 0.05% Total
Harmonic Distortion. Dual Gate MOSFET FM Front End. Phase
Locked Loop FM Multiplex Demodulator. Full Complementary
Direct Coupled Output. Peak Indicators. Plug-in Dolby* FM
Capability. 18 dB per Octave Bessel-Derived High Filter. Inde-
pendent Tape-to-Tape Copy.

59.4 lb. (27 kg) 19/4W x 7H x14%"D (490 x 178 x 435)

2285 AM/FM STEREO RECEIVER

85 Watts per Channel into 8 Ohms, Minimum Continuous Power
Output from 20 Hz to 20 kHz, with no more than 0.08% Total
Harmonic Distortion. Dual Gate MOSFET FM Front End. Phase
Locked Loop FM Multiplex Demodulator. Full Complementary
Direct Coupled Output. 18 dB per Octave Bessel-Derived High
Filter.

37.4 lb. (17 kg) 17/4W x 5%"H x14%D (440 x 137 x 365)

l...- I... III 3.

2265 AM/FM STEREO RECEIVER

65 Watts per Channel into 8 Ohms, Minimum Continuous Power
Output from 20 Hz to 20 kHz, with no more than 0.08% Total
HarmoniC Distortion. Dual Gate MOSFET FM Front End. Phase
Locked Loop FM Multiplex Demodulator. Full Complementary
Direct Coupled Output.

35.2 lb. (16 kg) 171/4"W x 5%H x143/a"b (440 x137 x 365)

2:330 AM/FM STEREO RECEIVER

130 Watts per Channel into 8 Ohms, Minimum Continuous Power
Output from 20 Hz to 20 kHz, with no more than 0.07% Total
Harmonic Distortion. Dual Gate MOSFET FM Front End. Phase
Locked Loop FM Multiplex Demodulator. Full Complementary
Direct Coupled Output. Built-in Dolby FM Decoder. 18 dB per
Octave Bessel-Derived High Filter.

49.5 lb. (22.5 kg) 19/4W x 5%H x 151/4"D (491 x 146 x 386)

2252 AM/FM STEREO RECEIVER

52 Watts per Channel into 8 Ohms, Minimum Continuous Power
Output from 20 Hz to 20 kHz, with no more than 0.1% Total
Harmonic Distortion. Dual Gate MOSFET FM Front End. Phase
Locked Loop FM Multiplex Demodulator. Full Complementary
Direct Coupled Output.

30.8 lb. (14 kg) 17%W x 5%H x14%D (440 x137 x 365)
