Marantz BD 7003 Service Manual
This is the 69 pages manual for Marantz BD 7003 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz BD 7003 Service Manual (Ocr-read)

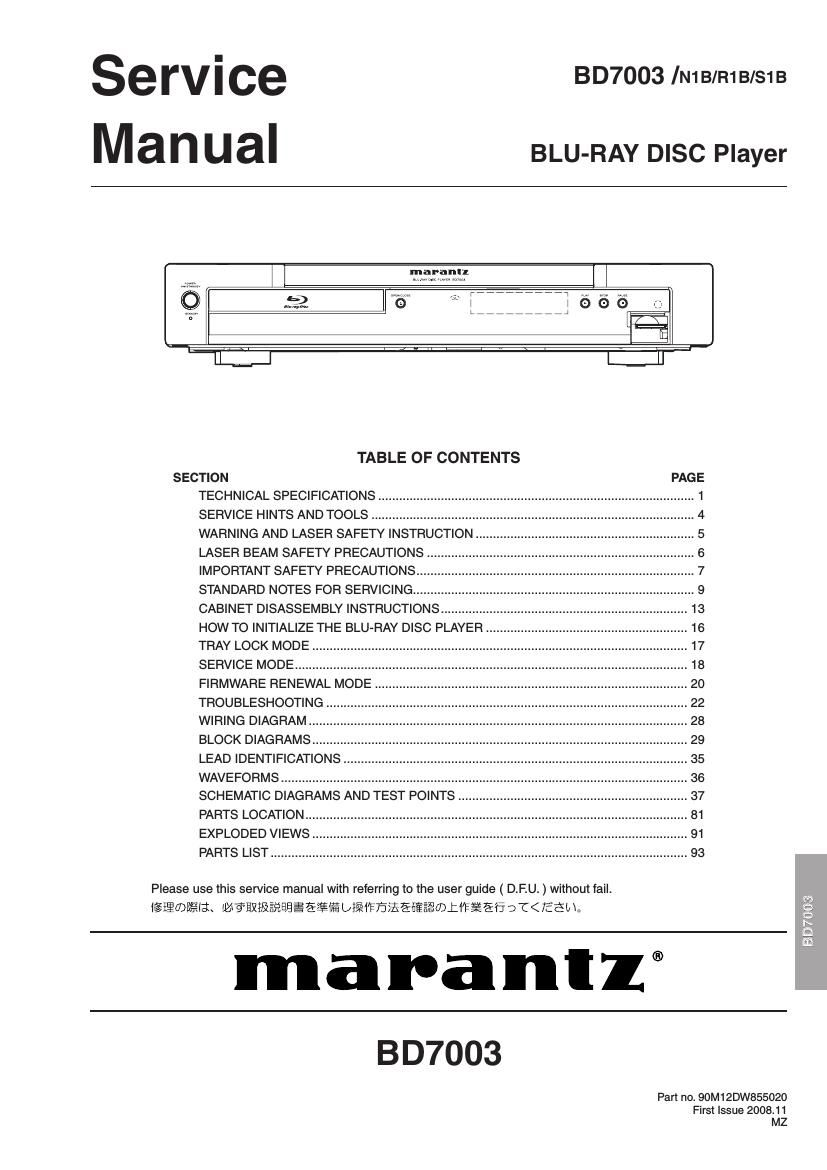

Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 080702MZ USA MARANTZ AMERICA, INC 100 CORPORATE DRIVE MAHWAH, NEW JERSEY 07430 USA EUROPE / TRADING D&M EUROPE B. V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 KOREA D&M SALES AND MARKETING KOREA LTD. CHUNG JIN B/D., #1001, 53-5, WONHYORO 3 GA, YONGSAN-GU, SEOUL, 140-719, KOREA PHONE : +82 - 2 - 323 - 2155 FAX : +82 - 2 - 323 - 2154 CANADA D&M Canada Inc. 5-505 APPLE CREEK BLVD. MARKHAM, ONTARIO L3R 5B1 CANADA PHONE : 905 - 415 - 9292 FAX : 905 - 475 - 4159 JAPAN D&M BUILDING, 2-1 NISSHIN-CHO, KAWASAKI-KU, KAWASAKI-SHI, KANAGAWA, 210-8569 JAPAN D&M Holdings Inc. CHINA D&M SALES AND MARKETING SHANGHAI LTD. ROOM.808 SHANGHAI AIRPORT CITY TERMINAL NO.1600 NANJING (WEST) ROAD, SHANGHAI, CHINA. 200040 TEL : 021 - 6248 - 5151 FAX : 021 - 6248 - 4434 † ¶ Íw «™ UmMoM æ ¼xz† ¶ Í OAs æ ¼pb{ žc¦ ^-oM æ ¼ jøw‹w›–;`o<^M{
Page 2
1 TECHNICAL SPECIFICATIONS SIGNAL SYSTEM NTSC/PAL color APPLICABLE DISCS (1) BD/DVD-video Discs 1-layer 12 cm single-sided discs, 2-layer 12 cm single- sided discs, 2-layer 12 cm double-sided discs (1 layer per side) 1-layer 8 cm single-sided discs, 2-layer 8 cm single- sided discs, 2-layer 8 cm double-sided discs (1 layer per side) (2) BD-RE / BD-R (Recorded in BDMV format) 1-layer 12 cm single-sided discs, 2-layer 12 cm single- sided discs 1-layer 8 cm single-sided discs, 2-layer 8 cm single- sided discs (3) DVD-R 1-layer 12 cm single-sided discs, 2-layer 12 cm single- sided discs 1-layer 8 cm single-sided discs, 2-layer 8 cm single- sided discs (4) DVD-RW 1-layer 12 cm single-sided discs 1-layer 8 cm single-sided discs (5) Compact discs (audio CD) 12 cm discs, 8 cm discs (6) CD-RW/-R 12 cm discs, 8 cm discs APPLICABLE MEMORY CARDS (1) SD Memory Card (2) SDHC Memory Card (3) miniSD Card (4) microSD Card VIDEO OUTPUT Y output level : 1 Vp-p (75 Ω) Output connectors : Pin jack, 1 set COMPONENT OUTPUT Y output level : 1 Vp-p (75 Ω) P B/CB output level : 0.7 Vp-p (75 Ω) P R/CR output level : 0.7 Vp-p (75 Ω) Output connectors : Pin jacks, 1 set HDMI OUTPUT Output jack : 19-pin HDMI terminal, 1 set HDMI ver. 1.3a (Deep Color, Dolby Digital Plus, Dolby TrueHD, DTS-HD) ANALOG AUDIO OUTPUT Output level : 2 Vrms (10 k Ω) 2 channel (L, R) output connector : Pin jacks, AUDIO OUTPUT PROPERTIES (1) Frequency response 1 BDs (linear PCM) : 20 Hz to 22 kHz (48 kHz sampling) : 20 Hz to 44 kHz (96 kHz sampling) : 20 Hz to 44 kHz (192 kHz sampling) 2 DVDs (linear PCM) : 20 Hz to 22 kHz (48 kHz sampling) : 20 Hz to 44 kHz (96 kHz sampling) 3 CDs : 20 Hz to 20 kHz (2) S/N ratio : 115 dB (3) Total harmonic distortion : 1 kHz 0.004 % (4) Dynamic range : 100 dB (BD/DVD) / 98dB (CD) DIGITAL AUDIO OUTPUT Coaxial digital output : Pin jack, 1 set POWER SUPPLY AC 110 V - 240 V, 50 Hz POWER CONSUMPTION 30 W (Standby : 0.8 W) MAXIMUM EXTERNAL DIMENSIONS W : 440 mm (17-3/8") H : 81.5 mm (3-1/4") D : 368.2 mm (14-1/2") (including protruding parts) MASS 4.2 kg (9.26 lb) REMOTE CONTROL : RC003BD Infrared pulse type Supply : DC 3 V, 2 R6P/AA batteries External dimensions: W : 52 mm (2-1/16") H : 227 mm (8-15/16") D : 30 mm (1-3/16") Mass : 171 g (0.4 lb) (batteries included)
