Marantz Audio Consolette Owners Manual

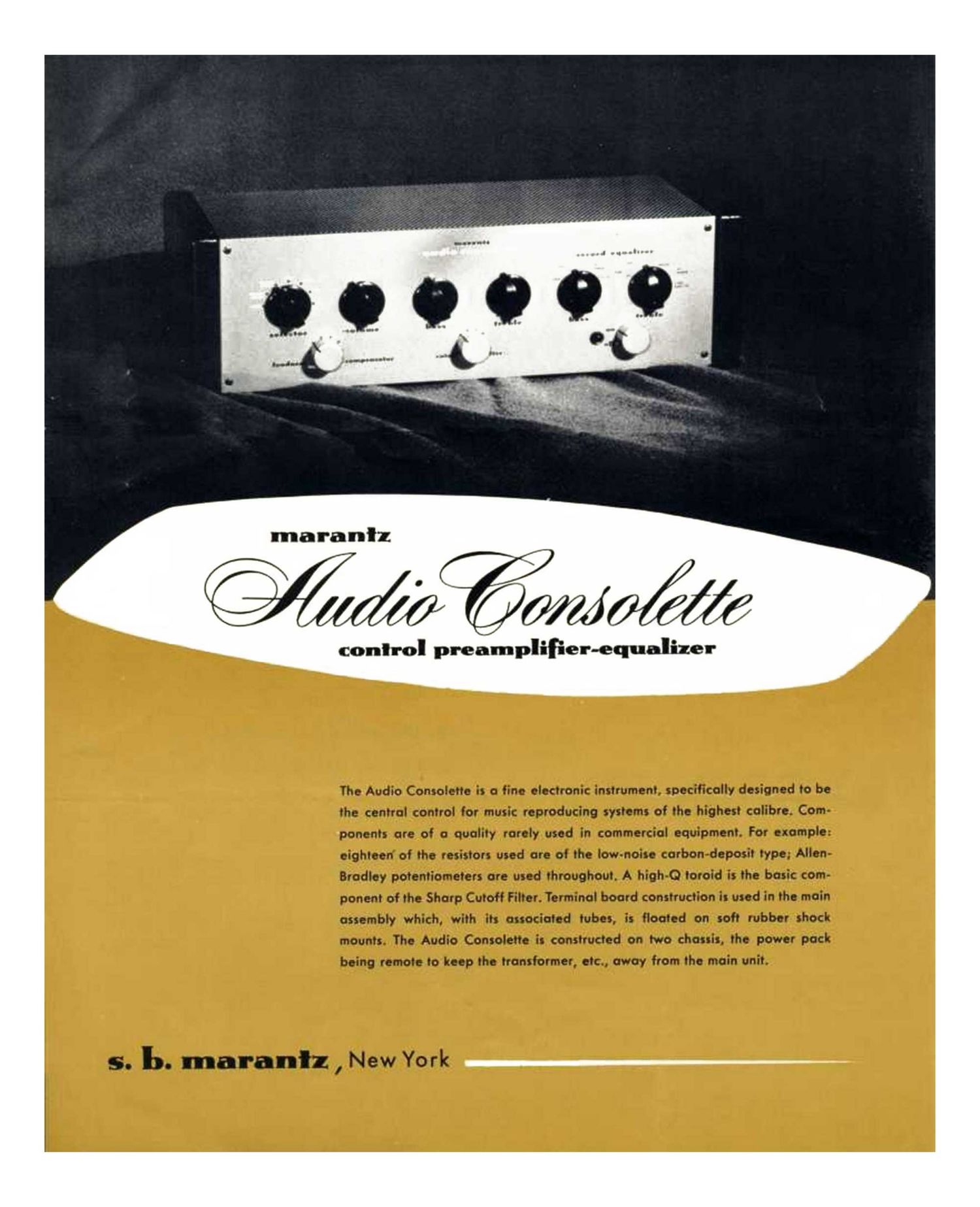

Page 1

maranlz

conlrol preamplifier-equalizer

The Audio Consolette is a line electronic instrument, specifically designed to be
the central control for music reproducing systems of the highest calibre. Com-
ponents are of a quality rarely used in commercial equipment. For example:
eighteen ol the resistors used are ol the low-noise carbonodeposit type; Allen-
8rodley potentiometers are used throughout. A high-Q toroid is the basic com-
ponent of the Sharp Cutoff Filter. Terminal board construction is used in the main
assembly which, with its associated tubes, is floated on soft rubber shocll
mounts. The Audio Consolette is constructed on two chassis, the power pack

being remote to keep the translormer, etc., away from the main unit.

5. In. maranlz , New York

Page 2

general

specificalions

"U" and NOISE - Hunt is inaudible at lull gain from all input positions.
Total noise voltage at output, tram open phone inputs, 12 mv to 2.5 mv.

or the eQuIvalent at 4 pv maximum at lirst grid. This figure will be
reduced considerably with proper input connection,

INTERMODULATION DISTOR'IION -

High level inputs -With volume control at maximum and all controls
at llat positions 60 and 7000 cps. mixed Azl ratio.
15 volts output ...... l 7. maximum

Low level inputs «With equalization controls set as lollows: Boss ~AES.
Treble- Ortho. Output adjusted for 60 and 7000 cps. mixed 4:1 ratio.

l5 volts output ...... l 7. maximum
alntost immeasurable at normal levels

FREQUENCY RESPONSE - 1 db. from 20 to 40.000 cps.

POWER SUPPLY - The remote power supply plugs into the main unit via a
6 conductor cable. Three A.C. line outlets, controlled by the main switch.
are provided for other components.

UGOR 3"? Seven position Input swltch. BASS RICORD IOUAIJIATIOI. Six turnover positions
MICR
For high impedance microphones. NEIL! IICOID IQUAUlAflON. SIX "roll-off" positions

LO-LEVEL PHONO

_ _ loo!!! COIPIISAYOI. This is a continuously vari-
For popular low-level magnetic phono cartridges,

able control of unique design which compen-
Hl-LEVEL PHONO sates for the Fletcher-Munson Hearing Charac-
For Pickering, Clarkston, etc. teristics curves. Unlike other such controls, its
adiustment produces no corresponding change

EXTRA _ . in listening level and may be used independently
A 59° h'gh level 9" ol the volume control.

TUNER

High level input for F.M., F.M.-A,M_ or A,M_ BASS tall! (CIRCLTurnover point, 375 C.P.S.

TAPE meat. T ' 2500 CPS

High level input lor tape reproduction. VIII '0" co ' urnover 90" ' '

TV titan neoueucr cutorr nun. An adjustable lew-
Hrgh level input {or TV sound. pass filter (l2 db. per octave cutoff)

Four High Level Inputs. For tuner, tape, T.V., etc. Voltage gain, 23 db.

Three Low level Inputs: Microphone, low Level Magnetic and High Level
Magnetic. Voltage gain, 56 db.

Moist Output. This is led by a cathodeoollower which permits a long shielded
lead to the main amplifier.

Recorder Output. A selector-switch controlled output which can be used to
teed a tape or other recorder. It is not affected by the volume or tone controls.

Cabinet Model 555

Chassis available at lower cost
