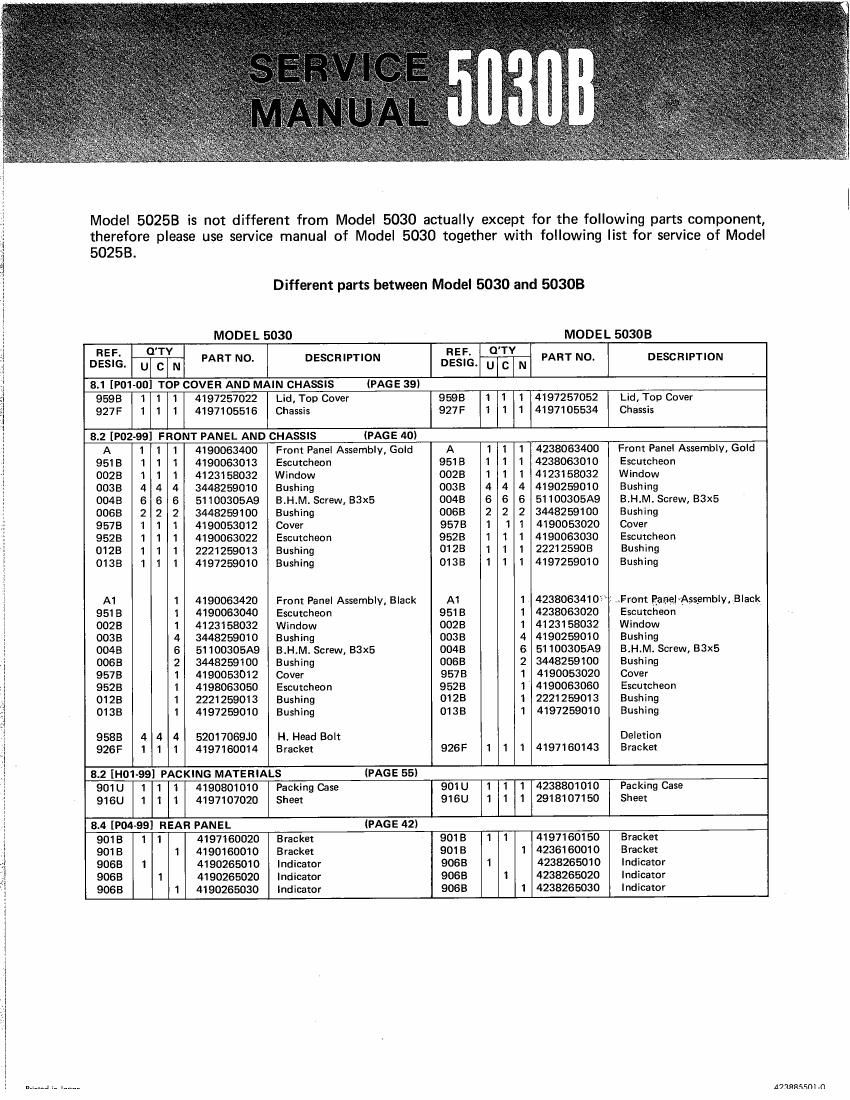

Page 1
n.-.42.l =.
Model 50253 is not different from Model 5030 actually except for the following parts component,
therefore please use service manual of Model 5030 together with following list for service of Model
50253.
Different parts between Model 5030 and 503GB
MODEL 5030 MODEL 50303
D232. [0ng PART NO. DESCRIPTION 025575;. OI-SI N PART NO. DESCRIPTION
8.1 [P01-00 TOP COVER AND MAIN CHASSIS IPAGE 39]
959B 1 1 1 4197257022 Lid, Top Cover 9593 1 1 1 4197257052 Lid, Top Cover
927F 1 1 1 4197105516 Chassis 927F 1 1 1 4197105534 Chassis
8.2 [P02-99] FRONT PANEL AND CHASSIS IPAGE 40)
A 1 1 1 4190063400 Front Panel Assembly, Gold A 1 1 1 4238063400 Front Panel Assembly, Gold
951 B 1 1 1 4190063013 Escutcheon 951 B 1 1 1 4238063010 Escutcheon
002B 1 1 1 4123158032 Window 0023 1 1 1 4123158032 Window
0033 4 4 4 3448259010 Bushing 003B 4 4 4 4190259010 Bushing
0043 6 6 6 51100305A9 B.H.M. Screw, 33x5 0043 6 6 6 51100305A9 B.H.M. Screw, 33x5
0063 2 2 2 3448259100 Bushing 0063 2 2 2 3448259100 Bushing
957B 1 1 1 4190053012 Cover 957 B 1 1 1 4190053020 Cover
952B 1 1 1 4190063022 Escutcheon 952B 1 1 1 4190063030 Escutcheon
012B 1 1 1 2221259013 Bushing 012B 1 1 1 222125908 Bushing
013B 1 1 1 4197259010 Bushing 0133 1 1 1 4197259010 Bushing
A1 1 4190063420 Front Panel Assembly, Black A1 1 4238063410 1 Front Panelr'Assembly, Black
951 B 1 4190063040 Escutcheon 951 B 1 4238063020 Escutcheon
0023 1 4123158032 Window 0023 1 4123158032 Window
0033 4 3448259010 Bushing 0033 4 4190259010 Bushing
004B 6 51100305A9 B.H.M. Screw, 33x5 004B 6 51100305A9 B.H.M. Screw, 33x5
006B 2 3448259100 Bushing 006B 2 3448259100 Bushing
9573 1 4190053012 Cover 9573 1 4190053020 Cover
9523 1 4193063050 Escutcheon 952B 1 I 4190063060 Escutcheon
0123 1 2221259013 Bushing 0123 1 2221259013 Bushing
013B 1 4197259010 Bushing 0133 1 4197259010 Bushing
9583 4 4 4 52017069J0 H. Heed Bolt Deletion
9261: 1 1 1 4197160014 Bracket 926F 1 1 1 4197160143 Bracket
3.2 [HIM-99] PACKING MATERIALS (PAGE 55)
901U 1 1 1 4190801010 Packing Case 901U 1 1 1 4238801010 Packing Case
916U 1 1 1 4197107020 Sheet 916U 1 1 1 2918107150 Sheet
8.4 [FM-99] REAR PANEL IPAGE 421
9013 1 1 4197160020 Bracket 901B 1 1 4197160150 Bracket
901B 1 4190160010 Bracket 901B 1 4236160010 Bracket
9063 1 4190265010 Indicator 9063 1 4238265010 Indicator
9063 1 4190265020 Indicator 9063 1 4238265020 Indicator
9063 1 4190265030 Indicator 9063 1 4238265030 Indicator
AMRRHOI .n
