Marantz 2235 Service Manual
This is the 44 pages manual for Marantz 2235 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz 2235 Service Manual (Ocr-read)
Page 1

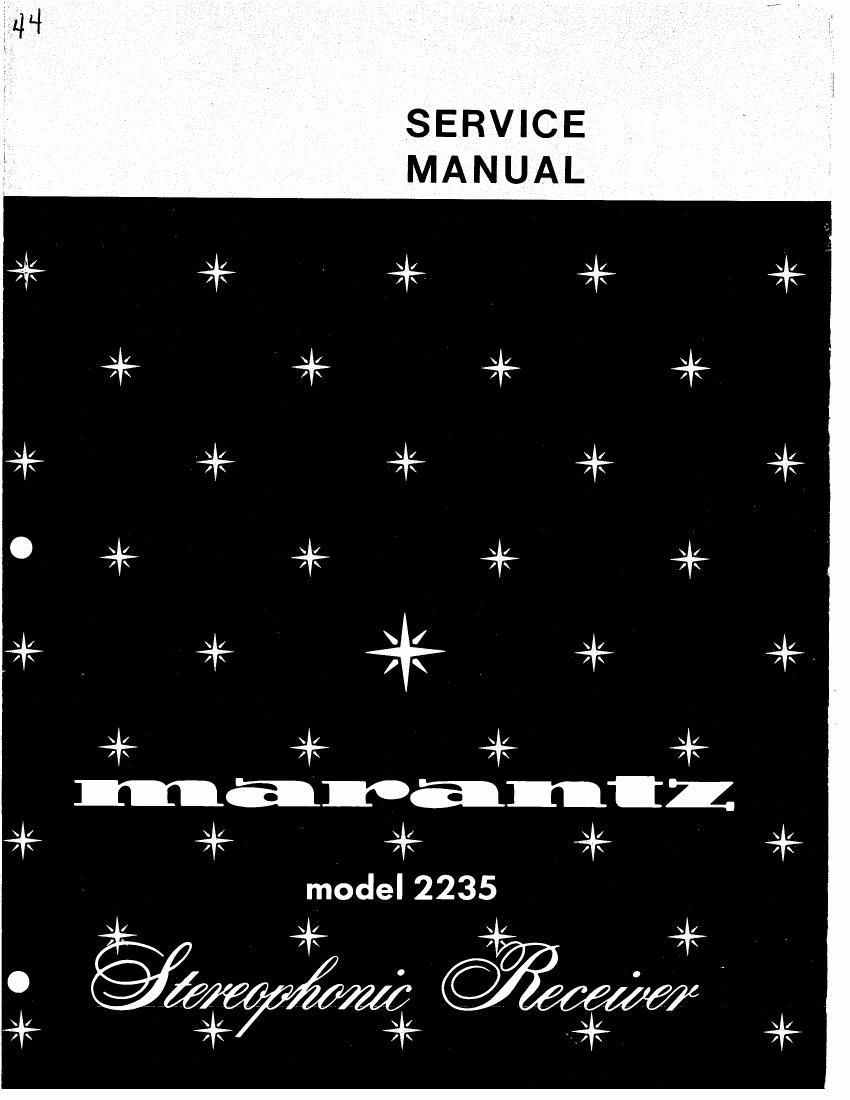

SERVICE
MANUAL
maran 1
model 2235
\/
Page 2
ma Itéifiiz
TABLE OF CONTENTS L
SECTION PAGE
Introduction .............................................................. 1
P_W_ Board ............................................................... 1
Test Equipment Required for Servicing ........................................ 2
AM Alignment Procedures ................................................... 2
FM Alignment Procedures ................................................... 3
Stereo Separation Alignment Procedures ........................................ 3
Muting Circuit Alignment Procedures .......................................... 3
Dolby FM Tape Output Setting ............................................... 4
Audio Adjustment ......................................... ' ................ 4
Automatic Voltage Regulator Adjustment . . . . . . . . . . . . . . . . , ...................... 4
Parts List ........................................................... 25~36
Technical Specifications ..................................................... 37
Servicing Information for European Model ------------------------------------ 39~45
