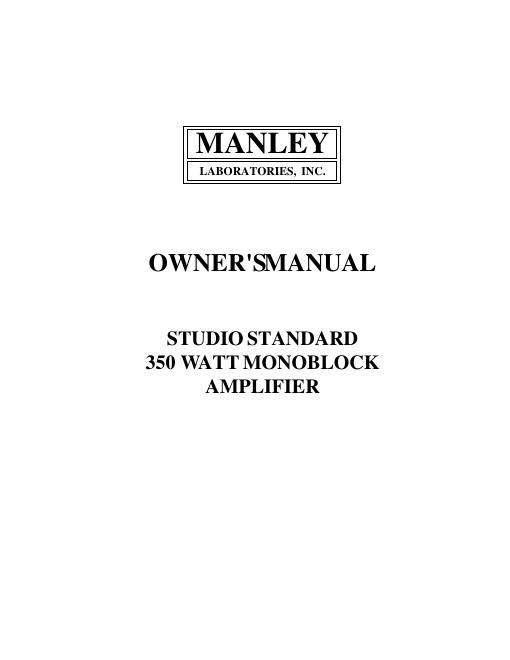

Manley laboratories studio standard 350 owners manual
This is the 11 pages manual for manley laboratories studio standard 350 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from manley laboratories studio standard 350 owners manual (Ocr-read)
Page 1
CONTENTS INTRODUCTION3 MAINS CONNECTIONS4 CONNECTING YOUR AMPLIFIER5 FIGURE 1FRONT PANEL6 FIGURE 2TOP PANEL7 FIGURE 3REAR PANEL8 BIAS PROCEDURES9 OPERATIONAL NOTES10 SPECIFICATIONS11 WARRANTY12 WARRANTY REGISTRATION13 NOTES14 SECTION PAGE
Page 2
THANK YOU!... for choosing the Manley Laboratories Studio Standard 350 watt monoblock amplifiers. Designed around the concept that less is more, the Studio Standard 350 uses the best available parts with the shortest, cleanest, signal path possible. With the use of our own C.N.C. milling machine, we can provide you with a superb sounding machine with elegant packaging. Please take a few moments to read through this manual, there may be features and information about this amplifier that you do not know, and it is in your, and our here at Manley Labs, best interest that you do. Thank you again, and please enjoy! GENERAL NOTES LOCATION & VENTILATION The Studio Standard 350 watt monoblocks must be installed in a stable location with ample ventilation. Allow a minimum of 2 inches of clearance on the top and sides of the amplifier, such that a constant flow of air can flow throught the ventilation openings. We also recommend that the amplifier if driven by a preamplifier be placed at least 10 inches apart. Do not place amplifiers directly on high pile carpet or any other surface that will block the ventilation vents.INTRODUCTION WATER & MOISTURE As with any electrical equipment, this amplifier should not be used near water or moisture. If liquid enters the amplifier, it must be immediately returned to your deal for servicing. SERVICING The user should not attempt to service the amplifier beyond that described in the owner's manual. Refer all servicing other than biasing and tube replacement to Manley LAboratories SPECIAL NOTES Tubes may become loose during transit. Straighten and press down each tube before plugging the amplifier into the mains socket. Furthermore, NEVER touch the tubes after the amplifier has been switched on, the tubes become very hot during operation and should only be handled after the power has been turned off and the tubes have cooled. WARNING! TO PREVENT THE RISK OF ELECTRIC SHOCK DO NOT OPEN THE CABINET REFER SERVICING TO QUALIFIED PERSONEL!
