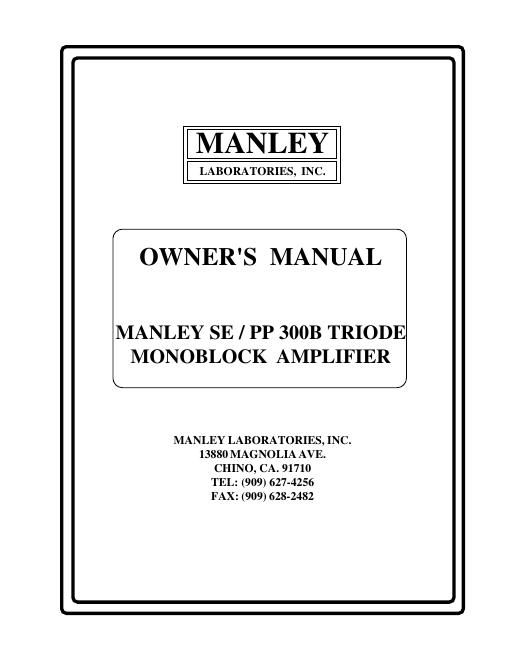

Manley laboratories sepp 300 b owners manual

Page 2

INTRODUCTIONTHANK YOU!... for choosing the Manley SE / PP 300B TRIODE Monoblock Amplifiers. Designed by David Manley, the Manley SE / PP 300B TRIODE Amplifiers use only the best available components, with the shortest and cleanest signal path possible. These amps have the unique ability to switch from Single ended to Push-Pull topologies and the ability to adjust the amount of negative feedback in 1 dB steps. This amp is designed to provide our customers with a versatile little amplifier that can do it all. Let us start out by stating our opinions about amplifier topologies. Historically, we have been manufacturing very highly regarded tube amplifiers since before tubes were considered the best option for hi-fi music lovers. We have manufactured a very wide range of amplifiers with power ranging from 15 watts to 800 watts and with a corresponding variety of tubes. This is not our first amp to feature 300Bs nor our first single ended triode amp. We build a $15,000 70+ watt single ended amp on a custom basis. In our experience, the more power an amplifier is capable of - the better it will be at providing acceptable low frequency quality. It is not easy to produce a very powerful amp with highs of the same quality as the lows. To do that we had to start manufacturing our own transformers. This is the major development that allowed us to produce an amplifier that could switch from single-ended to push-pull. We had to design and build a very unusual transformer first. When several other manufacturers started selling single-ended amps with 5 to 9 watts of power, we understood subjectively and objectively the good part of the story - the superb mid range - the delicate transient detail - the inherent simplicity. The bad news was that there were almost no speakers efficient enough to be a dynamic viable system. The worse news was that either these single-ended amps cost more than the condo or they had specs that could only be a joke. As the triode fans increased, more efficient speakers became available and several fanatics began to dismiss push-pull as a bad thing to be avoided at all costs. We objected to such blanket generalities and stressed that the push-pull done right with truly balanced transformers, quality parts throughout and a well designed circuit has proven to be a superb technique. We also like single ended amps, but few and far between, mostly because we prefer a flat frequency response and low distortion. We knew could do it better. We set out to design an amplifier that would appeal to us and to you and to the critics. It would be single-ended with more power than most for fans of that topology. It would be switchable to push-pull for fans of that school and for those who want it both ways - to compare for themselves, and to use each mode depending on the music. We decided to further extend our own feature of variable negative feedback to a greater range - from none to 10 dB. Some prefer zero negative feedback and some prefer more. The advantage of a little negative feedback is better specifications in general. Williamson, in 1947, not only described the advantages but described the loss of some transient information with greater than 20 dBof feedback. We typically use 3 to 6 dB in other amps. Even with zero negative feedback, this amp is cleaner and flatter than any single-ended amp we know of. One interesting aspect of negative feedback is it gives a higher damping factor. Conventional wisdom would have us think that the higher the damping factor - the better. Our experience is that the optimum damping factor is not infinity and that it depends on the speaker, the room, and the taste of the listener. In other words, the optimum is variability, and this we provide. This amp satisfies us as long time amplifier builders, amazes the critics in several well known magazines and is bound to satisfy the you with the ability to fit into your system and your expectations. We offer two versions of this amplifier. One version uses a 5V4 tube rectifier and 6SL7 & 6SN7 input stage. The chassis is more rectangular. This retro-look has appeal in the far-east and this version is only built for that part of the world. We also build a more conventional looking amp for our American and European customers. These use a solid state rectifier and12AT7 / 7044 input stage similar to our other amps. Otherwise the amps are brothers both in circuit and performance. Both amplifiers have a highly polished look thanks to the gold and chrome finishes. These new metal technologies were not available a few years ago. Built to last a lifetime. Designed to look elegant. Engineered by David Manley who happens to love music enough to be his lifes career.
