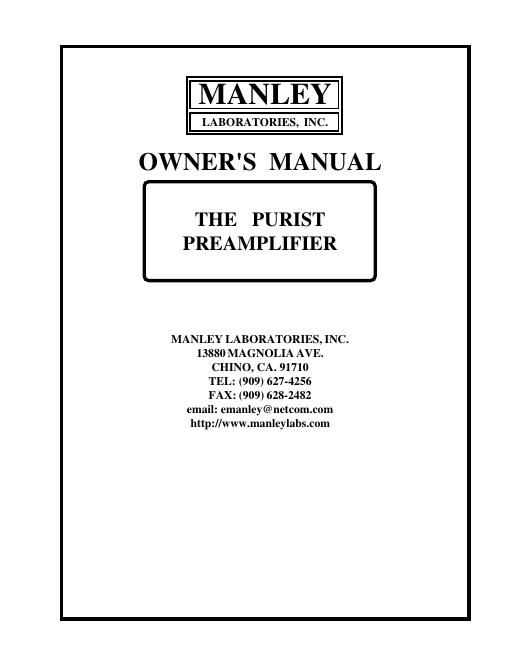

Manley laboratories purist owners manual
This is the 11 pages manual for manley laboratories purist owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from manley laboratories purist owners manual (Ocr-read)
Page 1
CONTENTS INTRODUCTION3 MAINS CONNECTIONS4 CONNECTING YOUR PREAMPLIFIER5 FIGURE 1FRONT PANEL6 FIGURE 2REAR PANEL7 OPERATIONAL NOTES8 SPECIFICATIONS9 WARRANTY10 WARRANTY REGISTRATION11 SECTION PAGE
Page 2
INTRODUCTIONTHANK YOU!... for choosing the Manley Laboratories "The Purist Preamplifier". Designed by David Manley, the Purist Preamplifier uses the best available parts with the shortest, cleanest, signal path possible. This Preamp has all the vital signal conducting electronics located near the input / output jacks with the controls connected with long shafts. The high-current line circuit employed here is one we have develop and refined over the years in our MANLEY Professional series. Minimalist signal path is accomplished with a few short, wide PC traces and very little wire. The signal wire is six nines pure copper, teflon insulated and well shielded. The signal is direct coupled through the tube stages and is only passed through one capacitor per side -and these are premium MIT foil/film caps . The gain controls are precise conductive plastic pots with thw main volume being a custom unit specially imported that has superior electrical and mechanical characteristics. These controls are a large part of why this preamp has such a musical appel similar to precision passive preamps. While passive preamps are notoriously sensitive to interconnect cables, this preamp will be easier and probably less costly to interface due to its constant low impedance output and high impedance inputs. Finally (but really initially) the power supply is a simple, highly filtered, well engineed design without the reliability problems common in other high voltages supplies. The elegant front panel finish is a high purity plated gold that complements the electronics both visually and in its long lasting outstanding quality. We hope you agree with us and hundreds of satisfied users and studios around the world that this preamp really delivers. Please take a few moments to read through this manual, there may be features and information about this preamplifier which you should familiarise yourself with. Thank you again, and please enjoy! GENERAL NOTES LOCATION & VENTILATION The Purist Preamplifier must be installed in a stable location with ample ventilation. It is recommended, if this unit is rack mounted, that you allow enough clearance on the top and bottom of the preamp such that a constant flow of air can flow through the ventilation slots. We also recommend that the preamplifier be placed at least 10 inches away from its amplifier. WATER & MOISTURE As with any electrical equipment, this preamplifier should not be used near water or moisture. SERVICING The user should not attempt to service the preamplifier beyond that described in the owner's manual. Refer all servicing other than tube replacement to Manley Laboratories. SPECIAL NOTES Tubes may become loose during transit. Straighten and press down each tube before plugging the preamplifier into the mains socket. Furthermore, do not touch the tubes after the preamplifier has been switched on, as the tubes do become very hot during operation and should only be handled after the power has been turned off and the tubes have cooled. 3
