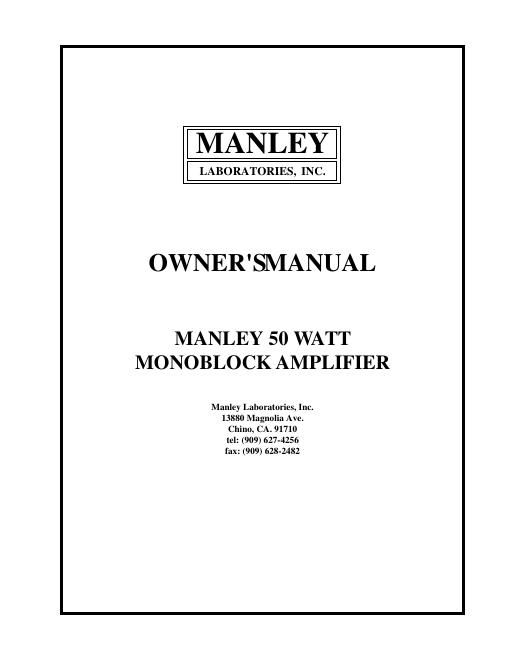

Manley laboratories 50 owners manual
This is the 10 pages manual for manley laboratories 50 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from manley laboratories 50 owners manual (Ocr-read)
Page 1
CONTENTS INTRODUCTION3 MAINS CONNECTIONS4 CONNECTING YOUR AMPLIFIER5 BIAS PROCEDURES6 OPERATIONAL NOTES7 SPECIFICATIONS8 WARRANTY9 WARRANTY REGISTRATION10 SECTION PAGE
Page 2
THANK YOU!... for choosing the Manley 50 Watt Monoblock Amplifiers. Designed around the concept that less is more, the Manley 50 Watt Monoblock Amplifiers use only the best available components, with the shortest and cleanest signal path possible, and with the use of our own milling equipment we can provide you with an amplifier that looks as good as it sounds. We have developed a magnetics winding department right here at Manley Labs where we design and wind the audio transformers. David Manley has invented a brand new winding technique for the output transformer which exactly preserves equality in the push-pull halves of the output stage. This breakthrough has once again put Manley Labs on the leading edge. Thank you again, and please enjoy! GENERAL NOTES LOCATION & VENTILATION The Manley 50 Watt Monoblock Amplifiers must be installed in a stable location with ample ventilation. Allow a minimum of 2 inches of clearance on the top and sides of the amplifier, such that a constant flow of air can flow throughout the ventilation openings. We also recommend that the amplifier and preamplifier be placed at least 10 inches apart. Do not place amplifiers directly on high pile carpet or any other surface that will block the ventilation vents.INTRODUCTION WATER & MOISTURE SERVICING The user should not attempt to service the amplifier beyond that described in the owner's manual. Refer all servicing other than biasing and tube replacement to Manley Laboratories SPECIAL NOTES Tubes may become loose during transit. Straighten and press down each tube before plugging the amplifier into the mains socket. Furthermore, NEVER touch the tubes after the amplifier has been switched on, the tubes become very hot during operation and should only be handled after the power has been turned off and the tubes have cooled. WARNING! TO PREVENT THE RISK OF ELECTRIC SHOCK DO NOT OPEN THE CABINET REFER SERVICING TO QUALIFIED PERSONNEL!
