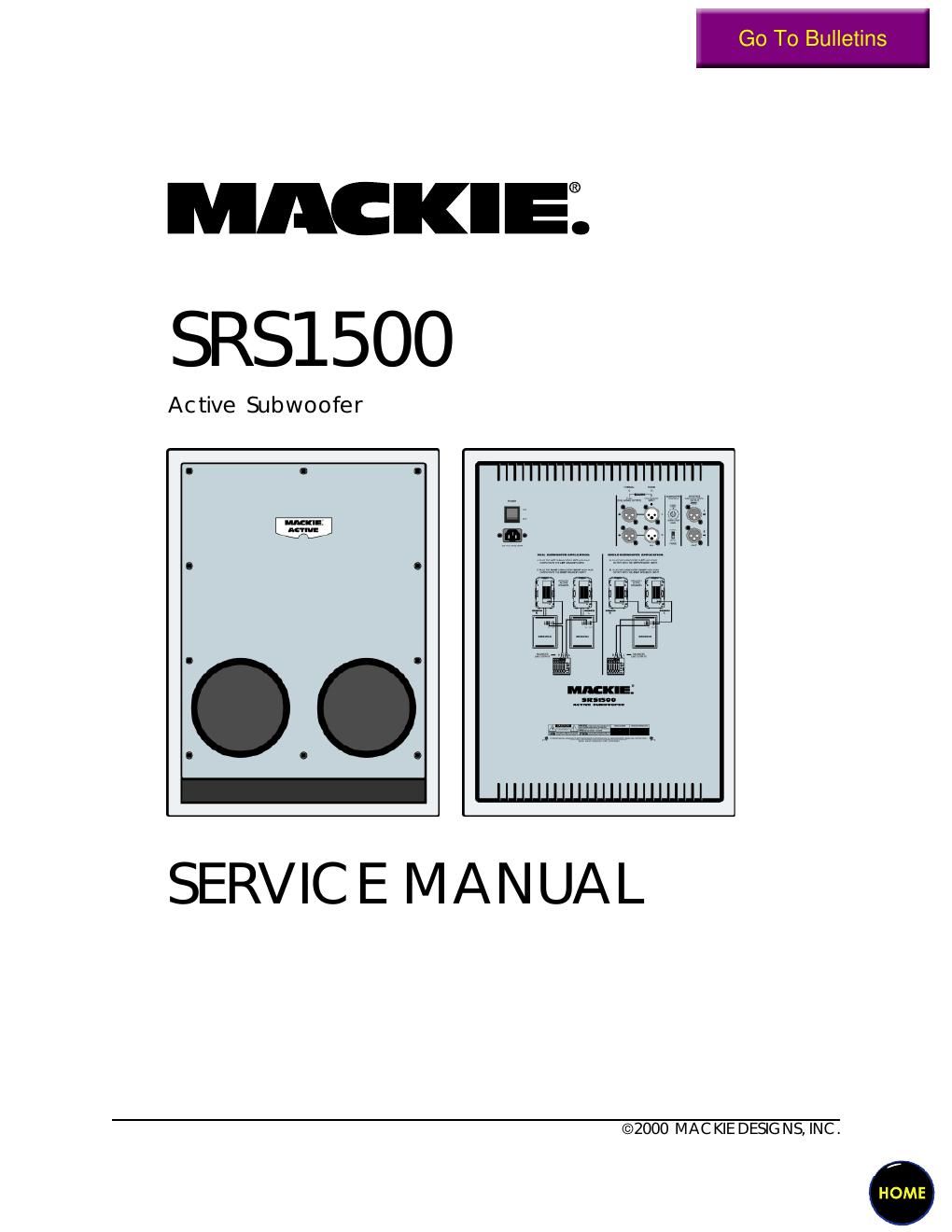

Mackie SRS1500 actsub 2

Page 1

MACKIE®
.

SRSlSOO

Active Subwoofer

F...
.a.$ way.

i: mm
EQ

1.! [m5

llllll||I||l||||l|l|l|||||

SERVICE MANUAL

@2000 MAC KIE DESIG NS, INC.

Page 2

WERE.) SRS1500 SERVICE MANUAL

SERVICE ON THIS EQUIPMENT IS TO BE PERFORMED BY
EXPERIENCED REPAIR TECHNICIANS ONLY

CONFIER LENTRETIEN AU PERSONNEL QUALIFIE

CAUTION A VIS

RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIOUE
NE PAS OUVR/R

CAUTION: TO REDUCE THE RISK OF ATTENTION: POUR EVITER LES
ELECTRIC SHOCK DO NOT REMOVE FIISQUES DE CHOC ELECTRIOUE, NE
THE COVER (OR BACK) PAS ENLEVER LE COUVERCLE. AUCUN
NO USER SERVICEABLE PARTS INSIDE ENTRETIEN DE PIECES INTERIEURES
REFER SERVICING TO QUALIFIED PAR LUSAGER. CONFIER LENTRETIEN
PERSONNEL AU PERSONNEL OUALIFIE.
WARNING: TO REDUCE THE RISK OF AVIS:POUR EVITER LES RISQUES
FIRE OR ELECTRIC SHOCK, DO NOT DINCENDIE OU D'ELECTROCUTION,
EXPOSE THIS PRODUCT TO RAIN OR NEXPOSEZ PAS CET ARTICLE A LA
MOISTURE PLUIE OUALHUMIDITE,
TO PREVENT ELECTRIC SHOCK, DO POUR PREVENIR LES CHOCS
NOT USE THIS POLARIZED PLUG WITH ELECTRIOUES NE PAS UTILISER CETTE
AN EXTENSION CORD, RECEPTACLE OR FICHE POLARISEE AVEC UN
OTHER OUTLET UNLESS THE BLADES PROLONGATEUR, UN PRISE DE
CAN BE FULLY INSERTED TO PREVENT COURANT OU UNE AUTRE SORT/E DE
BLADE EXPOSURE. COURANT,SAUF SILES LAMES
PEUVENT ETRE INSEREES A FOND
SANS LAISSER AUCUNE PART/E A
DECOUVERT.

This apparatus does not exceed the Class A/Class B (whichever is applicable) limits for radio
noise emissions from digital apparatus as set out in the radio Interference regulations of the
Canadian Department of Communications.

ATTENTION :Le present appareil numérique n'émet pas de bruits radioélectriques dépassant
Ias limites applicables aux appareils nurnériques de class A/de class B (selon le cas) prescrites
dans Ie réglement sur Ie brouillage radioelectrique édicté par les ministere des communications
du Canada.

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio energy and, it not
installed properly and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.

The lightning tlash With arrowhead symool Within an equilateral
triangle is intended to alert the user to the presence or uninsulated
"dangerous voltage" Within the products enclosure, that may be

oi surricient magnitude to constitute a risk or electric shock to persons

The exclamation point Within an equilateral triangle is intended to
alert the user or the presence or important operating and maintenance
tsewicing) instructions in the literature accompanying the appliance.

Le point dexclamatlon a l'interieur dun triangle equilateral est
emoicye pour alerter les utilisateurs de la presence dinstructlons
importantes pour le ianctionnement ei lenlretlerl tsennce) dans le
llvret dinstmctlon accompagnant l'appareil.

Le symbole eclair avec point de ileche a llnlérieur dim triangle
eouilateral est utilise pour alerter lutillsateur de la presence a
l'interieur du coirret dc "voltage dangereux non isoie dampleur
surtisante pour constituer un risque déléctrocutlon.
